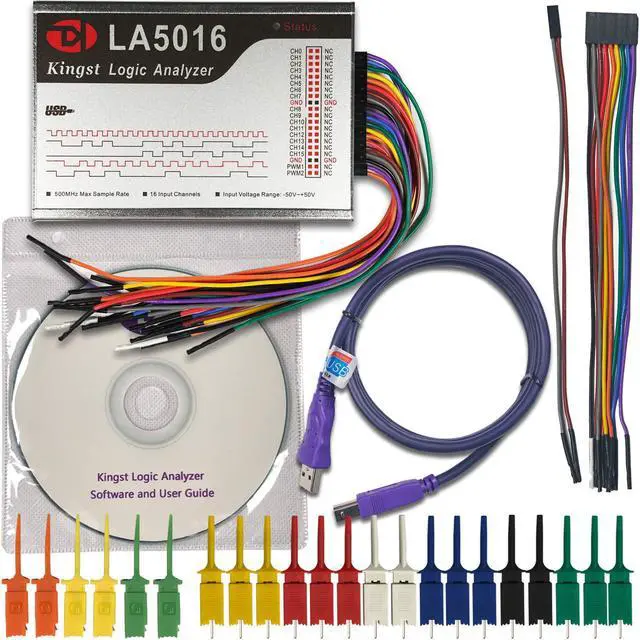

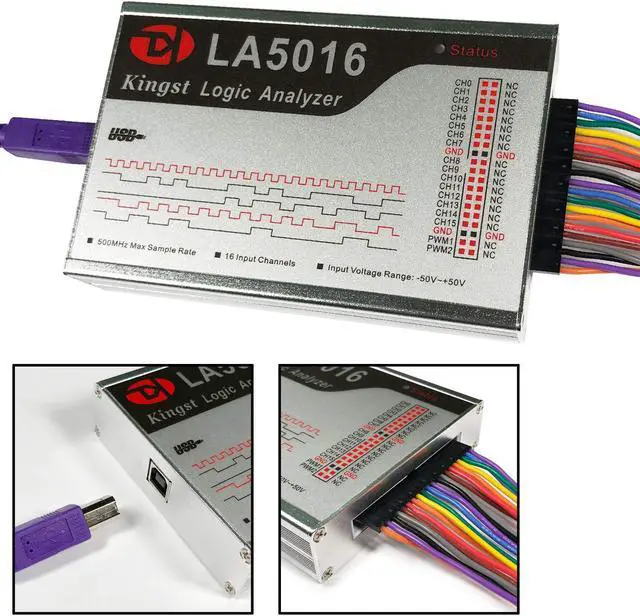

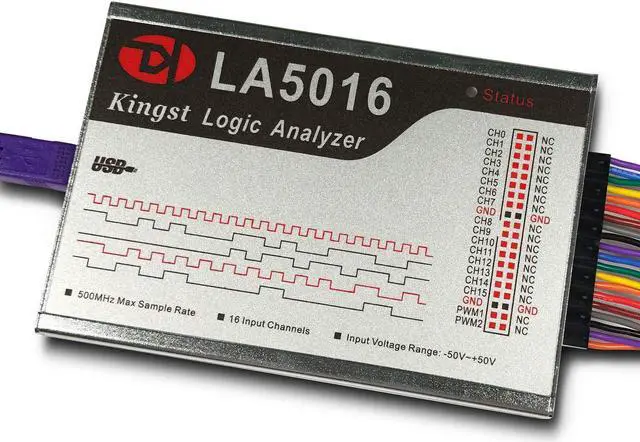

InnoMaker LA5016 USB Logic Analyzer 16Channels 500M Max Sample Rate 10GB Samples MCU/ARM/FPGA Debug Tool English Software Support Windows (32bit/64bit),Mac OS,Linux
- LA5016 is a high-performance logic analyzer with 16 channels and 500M max sampling rate.
- Composed of two parts: software on personal computer and hardware equipment. It has the advantages of high sampling rate, large sampling depth, easy to use, etc.
- LA5016 can sample 16 digital signal at same time. Then the sampled data can be displayed, analyzed, exported and saved on the computer. Software can also decode the data if it conform to the standard protocol of the software supported. Then the decoded data can be displayed, exported and saved.

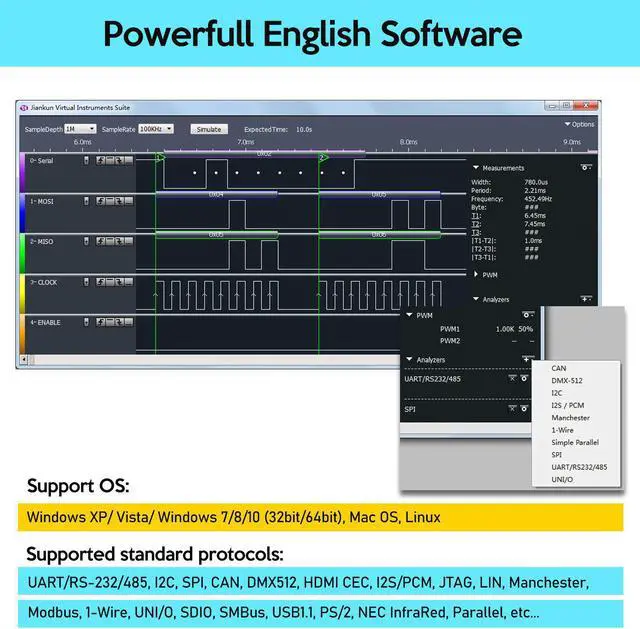

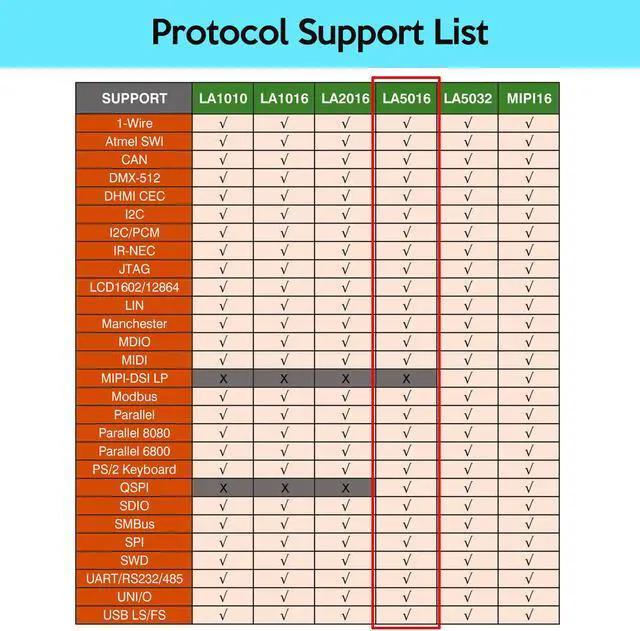

- Supported standard protocols: UART/RS-232/485, I2C, SPI, CAN, DMX512, HDMI CEC, I2S/PCM, JTAG, LIN, Manchester, Modbus, 1-Wire, UNI/O, SDIO, SMBus, USB1.1, PS/2, NEC InfraRed, Parallel, etc
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

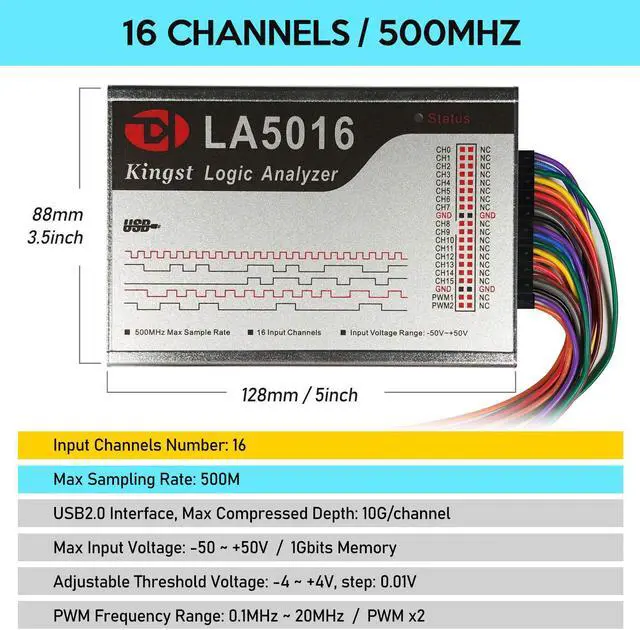

Input channels number 16 Max sampling rate 500M Measurement bandwidth 80M Min pulse width be captured 6.25 ns Hardware memory size 1Gbits Hardware sampling depth 50M/channel Max compressed depth 10G/channel Input voltage range -50V ~ +50V Input impedance 220K, 12pF Adjustable threshold voltage -4V ~ +4V, step: 0.01V PWM channels number 2 PWM frequency range 0.1 ~ 20MHz PWM frequency adjust step 10ns PWM pulse width adjust step 5ns PWM output voltage + 3.3V PWM output impedance 50 Standby current 200mA Max operating current 400mA Support OS Windows XP, Vista, Windows 7/8/10(32bit/64bit), Mac OS, Linux Supported standard protocols UART/RS-232/485, I2C, SPI, CAN, DMX512, HDMI CEC, I2S/PCM, JTAG, LIN, Manchester, Modbus, 1-Wire, UNI/O, SDIO, SMBus, USB 1.1, PS/2, NEC InfraRed, Parallel, etc...
