Noyafa NF-919 3-in-1 Fiber Optic Power Meter & Light Source & VFL 10 Wavelengths,1310/1550nm Source, 650nm Visual Fault Locator, Auto-Off, Rechargeable Li-ion Battery for Fiber Optic Network Testing

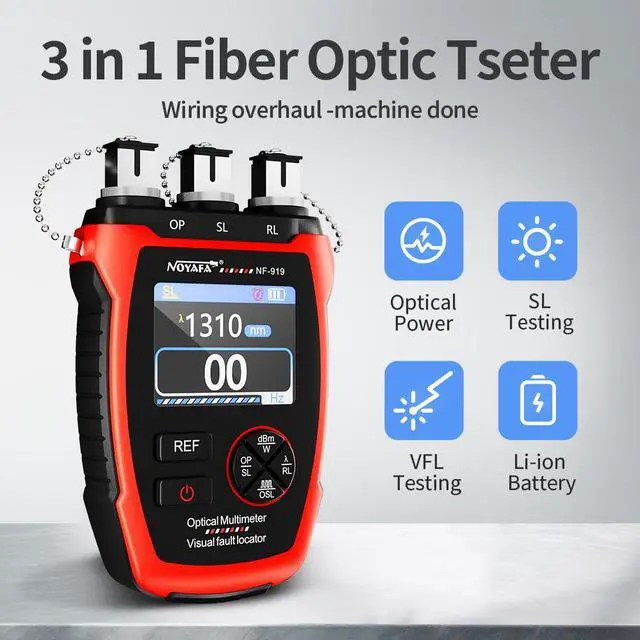

- 3-in-1 Multifunctional Tester Combines Optical Power Meter (OPM), Light Source (SL), and Visual Fault Locator (VFL) in one compact device.

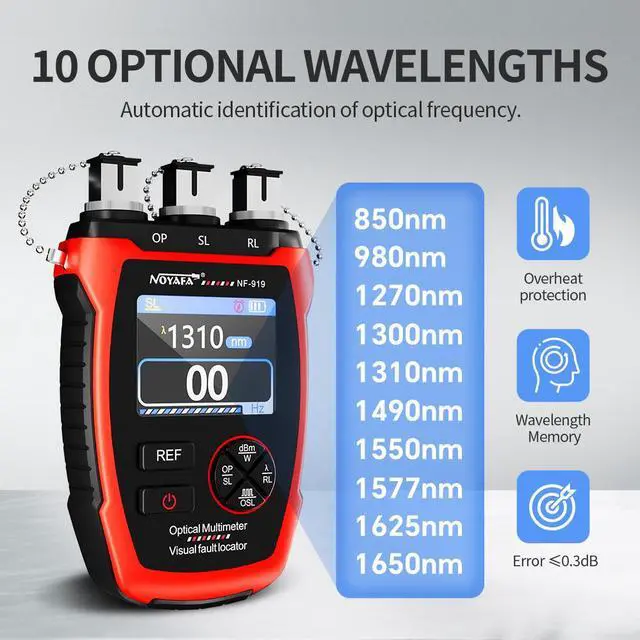

- 10 Standard Wavelengths Measures 850/980/1270/1300/1310/1490/1550/1577/1625/1650nm for broad compatibility.

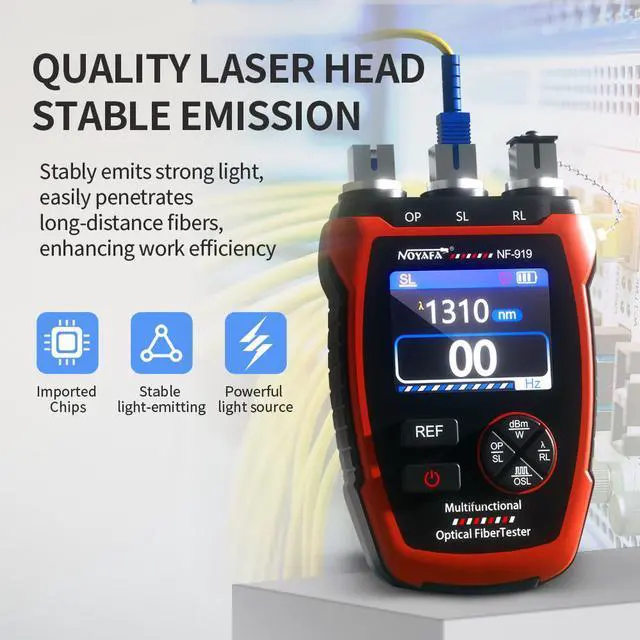

- Stable Light Source Built-in 1310/1550nm laser with selectable frequencies (270/1000/2000Hz) for accurate fiber loss and connectivity assessment.
- 650nm VFL Function Strong red light penetrates long-distance fibers, ideal for fiber tracing and fault location.
- High Accuracy & Smart Features Error 0.3dB, automatic wavelength memory, overheat protection, and auto-off after 30 minutes of inactivity (user adjustable).
- Rechargeable & Portable Powered by 3.7V 1500mAh lithium battery, Type-C USB charging. Compact design (139*84*29mm) fits in pocket or backpack.
- Wide Operating Temperature Works reliably from -20 to 50, suitable for indoor and outdoor field use.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
NF-919 3-in-1 Fiber Optic Power Meter, Light Source & VFL

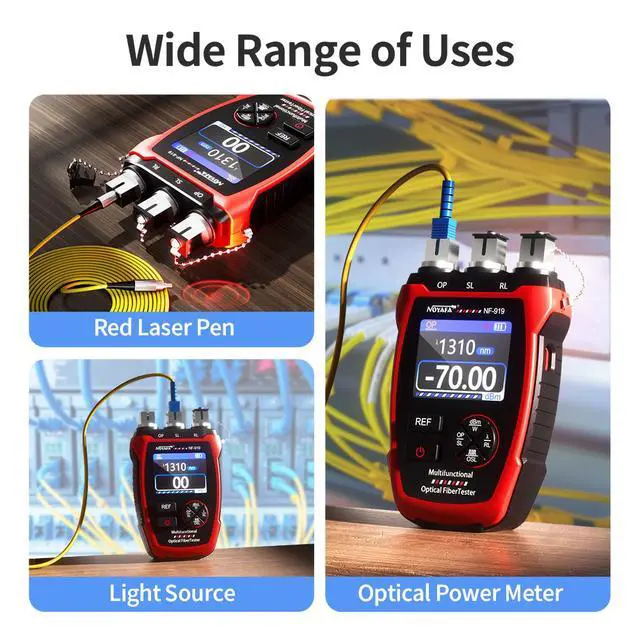

The NF-919 is a professional, easy-to-use fiber optic tester designed for installation, maintenance, and troubleshooting of fiber optic networks. It integrates three essential functions: Optical Power Meter (OPM), Stable Light Source (SL), and Visual Fault Locator (VFL) with a 650nm red laser. Whether you're testing fiber loss, identifying wavelengths, or locating breaks, the NF-919 delivers reliable performance in a compact, portable design.
Key Features:

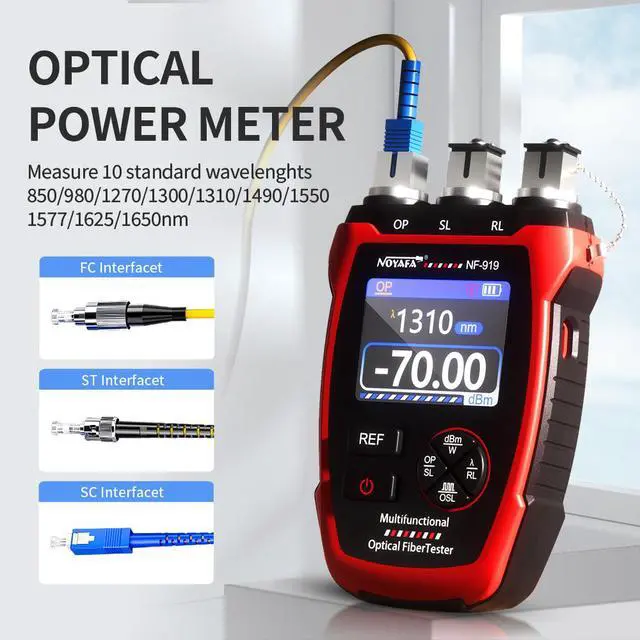

- Optical Power Meter (OPM)
- Supports 10 standard wavelengths (8501650nm). Measures absolute power (dBm/mW/uW/nW) and relative power (dB). Ideal for rapid power and loss detection.
- Stable Light Source (SL)
- Provides 1310nm and 1550nm wavelengths with adjustable frequencies (270Hz, 1000Hz, 2000Hz). Helps evaluate fiber transmission quality and link loss.
- Visual Fault Locator (VFL)
- Built-in 650nm red laser with steady on/flashing mode. Easily penetrates long-distance fibers to locate bends, breaks, or faulty connectors.
- User-Friendly Interface
- Clear LCD display with intuitive icons. Short press to switch modes, wavelengths, or units. Long press to set reference values or calibrate.
- Reference & Calibration Function
- One-key REF setting to store reference power values. Supports user calibration and factory reset for long-term accuracy.
- Long Battery Life & Auto-Off
- Powered by a 1500mAh rechargeable lithium battery via Type-C USB. Auto-off after 30 minutes of inactivity (can be turned on/off).

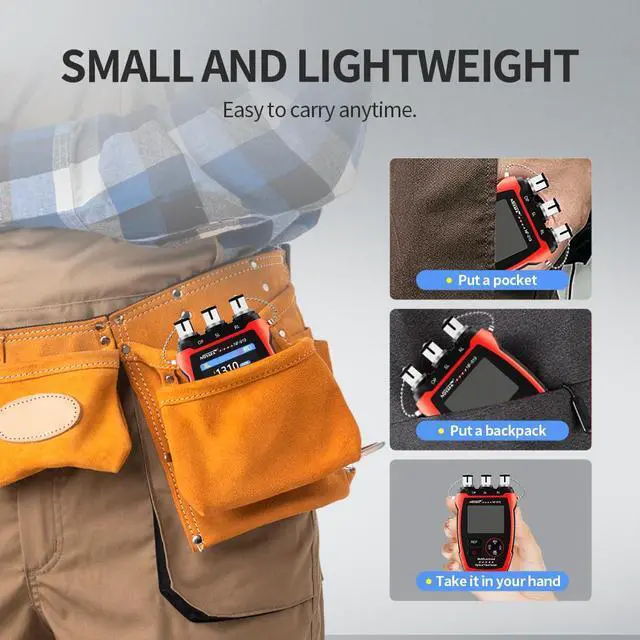

- Lightweight & Durable
- Weighs very little and measures only 139x84x29mm. Comes with a carry bag, USB cable, and user manual. Operating temperature: -20 to 50.
Package Includes:
- NF-919 Main Tester ×1
- Gift Box ×1
- Carry Bag ×1
- Type-C USB Cable ×1
- User Manual ×1
- Certification Card ×1
- Battery Note Card ×1
Perfect For:
- Fiber optic network installation & maintenance
- FTTH / LAN / WAN testing
- Telecom and data center field engineers
- Classroom training and DIY fiber projects
