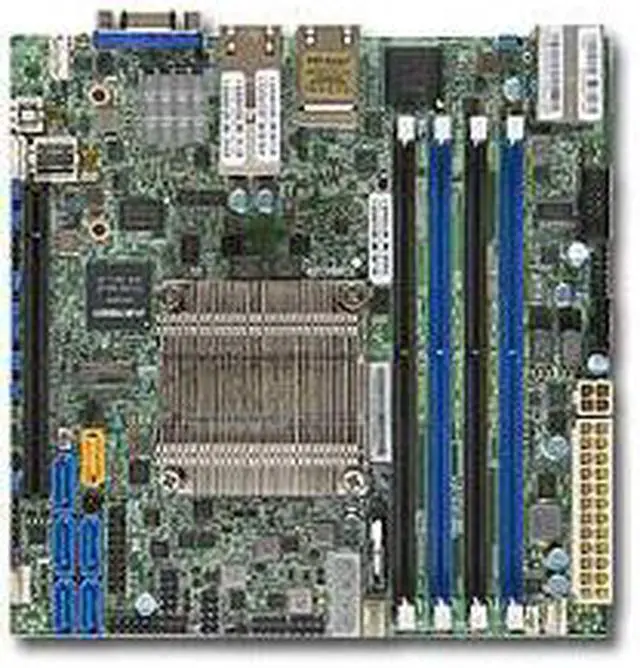

Supermicro X10SDV-4C-TLN4F Mini-ITX Motherboard
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Key Features 1. Intel® Xeon® processor D-1518, Single socket FCBGA 1667; 4-Core, 8 Threads, 35W 2. System on Chip 3. Up to 128GB ECC RDIMM DDR4 2133MHz or 64GB ECC/non-ECC UDIMM in 4 sockets 4.
Expansion slot: 1x PCIe 3.0 x16 M. 2 PCIe 3.0 x4, M Key 2242/2280 5. Dual 10GbE LAN and dual 1GbE LAN 6. 6x SATA3 (6Gbps) ports via SoC 7. 2x USB 3.0 ports (rear) 4x USB 2.0 ports (via headers) 8. 1x SuperDOM, 1x COM, TPM header, GPIO and SMbus headers 9. 12V DC input and ATX Power Source
Expansion slot: 1x PCIe 3.0 x16 M. 2 PCIe 3.0 x4, M Key 2242/2280 5. Dual 10GbE LAN and dual 1GbE LAN 6. 6x SATA3 (6Gbps) ports via SoC 7. 2x USB 3.0 ports (rear) 4x USB 2.0 ports (via headers) 8. 1x SuperDOM, 1x COM, TPM header, GPIO and SMbus headers 9. 12V DC input and ATX Power Source
