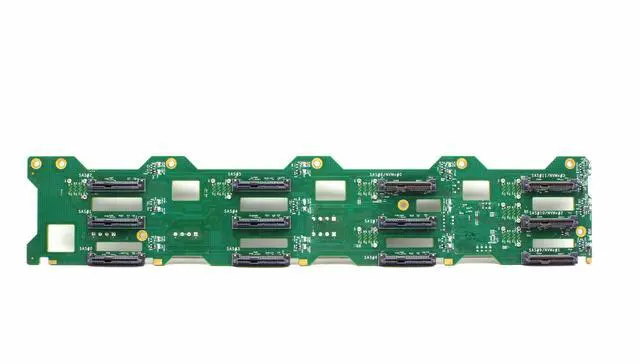

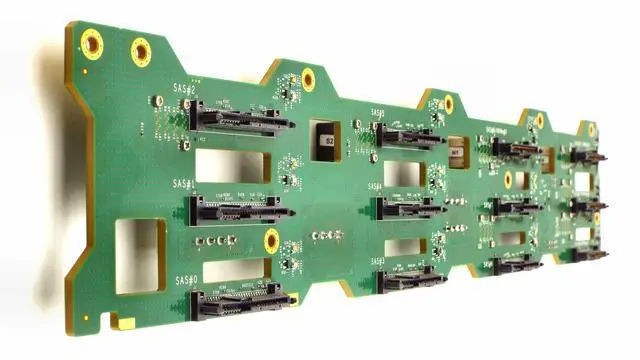

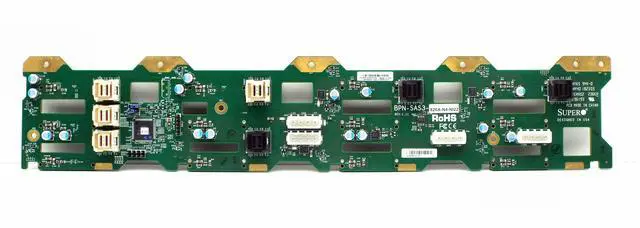

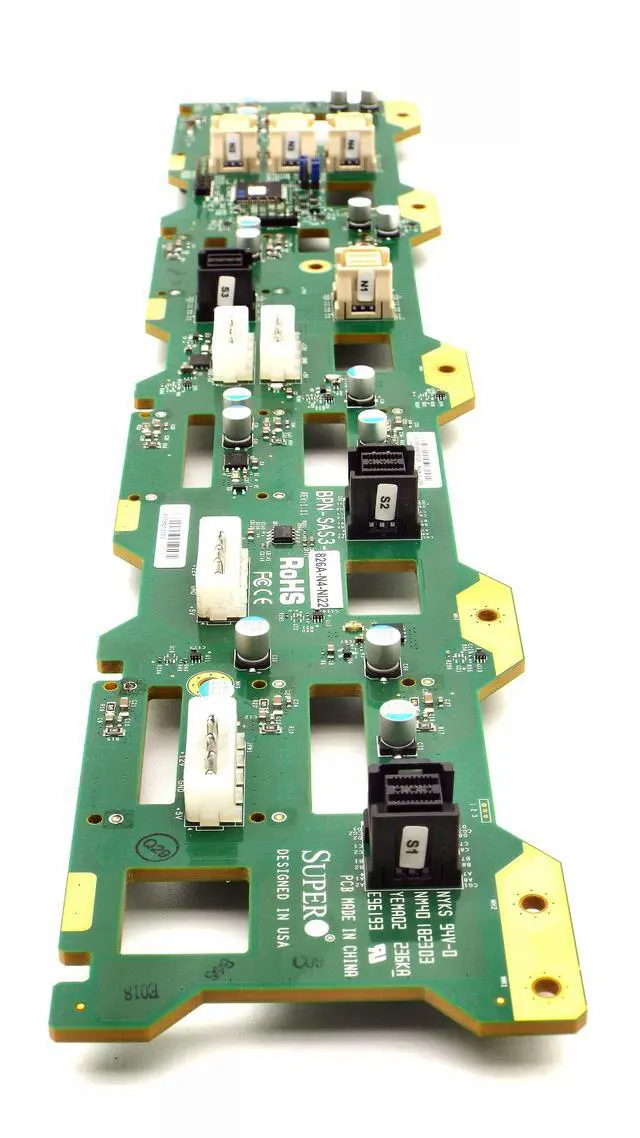

SUPERMICRO BPN-SAS3-826A-N4-NI22 12-PORT SAS3 SATA3 NVME SERVER BACKPLANE
- DRIVE CONFIGURATION
- Drive slots 07: SAS3 or SATA3
- Drive slot 8/NVMe 0: SAS3, SATA3, or NVMe
- Drive slot 9/NVMe 1: SAS3, SATA3, or NVMe
- Drive slot 10/NVMe 2: SAS3, SATA3, or NVMe
- Drive slot 11/NVMe 3: SAS3, SATA3, or NVMe
- The four hybrid positions can be configured with a mixture of SAS/SATA and NVMe drives, provided the system has the required controllers, PCIe connectivity, and cabling.
- REAR CONNECTIONS
- JSM1: Mini-SAS HD connection for four SAS/SATA drive channels
- JSM2: Mini-SAS HD connection for four SAS/SATA drive channels
- JSM3: Mini-SAS HD connection for four SAS/SATA drive channels
- JSM4: NVMe connection for NVMe drive 0
- JSM5: NVMe connection for NVMe drive 1
- JSM6: NVMe connection for NVMe drive 2
- JSM7: NVMe connection for NVMe drive 3
- JPW1JPW4: Four-pin backplane power connections
- J27: Six-pin JTAG/CPLD service connection
- LED STATUS FUNCTIONS
- Blue: Drive activity
- Solid red: Drive failure
- Red blinking at 1 Hz: Drive rebuild
- Red blinking at 4 Hz: Drive identification
- Blinking amber: Do not remove the NVMe device
- Green: NVMe device is ready to be removed
- COMPATIBILITY
- Designed for select Supermicro 2U server chassis and systems configured for the BPN-SAS3-826A-N4 backplane, including compatible CSE-826-series configurations. Compatibility depends on the chassis revision, motherboard, RAID/HBA controller, NVMe controller or PCIe source, power connections, and cabling.
- Buyers should verify compatibility using the exact chassis and system part numbers before purchasing.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
The Supermicro BPN-SAS3-826A-N4-NI22 is a 12-port server storage backplane designed for compatible Supermicro 2U server and storage chassis. It supports SAS3 and SATA3 drives across its drive bays, with NVMe capability available on four hybrid bays when connected to the appropriate controllers, cables, and NVMe-enabled system hardware.
This backplane provides a direct-attached storage architecture, allowing individual drive connections to compatible SAS/SATA host bus adapters or RAID controllers. It is ideal as a replacement backplane or as part of a compatible Supermicro server storage configuration.
Key Specifications:
Manufacturer: Supermicro
Model/Part Number: BPN-SAS3-826A-N4-NI22
Product Type: Server HDD/SSD Backplane
Total Drive Bays Supported: 12
SAS/SATA Support: 12 SAS3/SATA3 drive bays
NVMe Support: Up to 4 hybrid SAS/SATA/NVMe bays
SAS Interface Speed: Up to 12 Gb/s
SATA Interface Speed: Up to 6 Gb/s
Backplane Architecture: Direct-attached
Supported Drive Form Factor: 3.5-inch or 2.5-inch drives with compatible carriers
Compatible Chassis Type: Select Supermicro 2U 826-series chassis
Applications: Enterprise servers, storage arrays, RAID systems and data-center deployments
Condition: Grade A
Package Includes:
1 × Supermicro BPN-SAS3-826A-N4-NI22 12-Port Server Backplane
Hard drives, drive trays, cables, RAID/HBA controllers, NVMe controllers, server chassis and mounting hardware are not included unless specifically shown or stated. NVMe functionality requires compatible motherboard support, controllers and cabling. Please verify the exact part number and system compatibility before purchasing.
