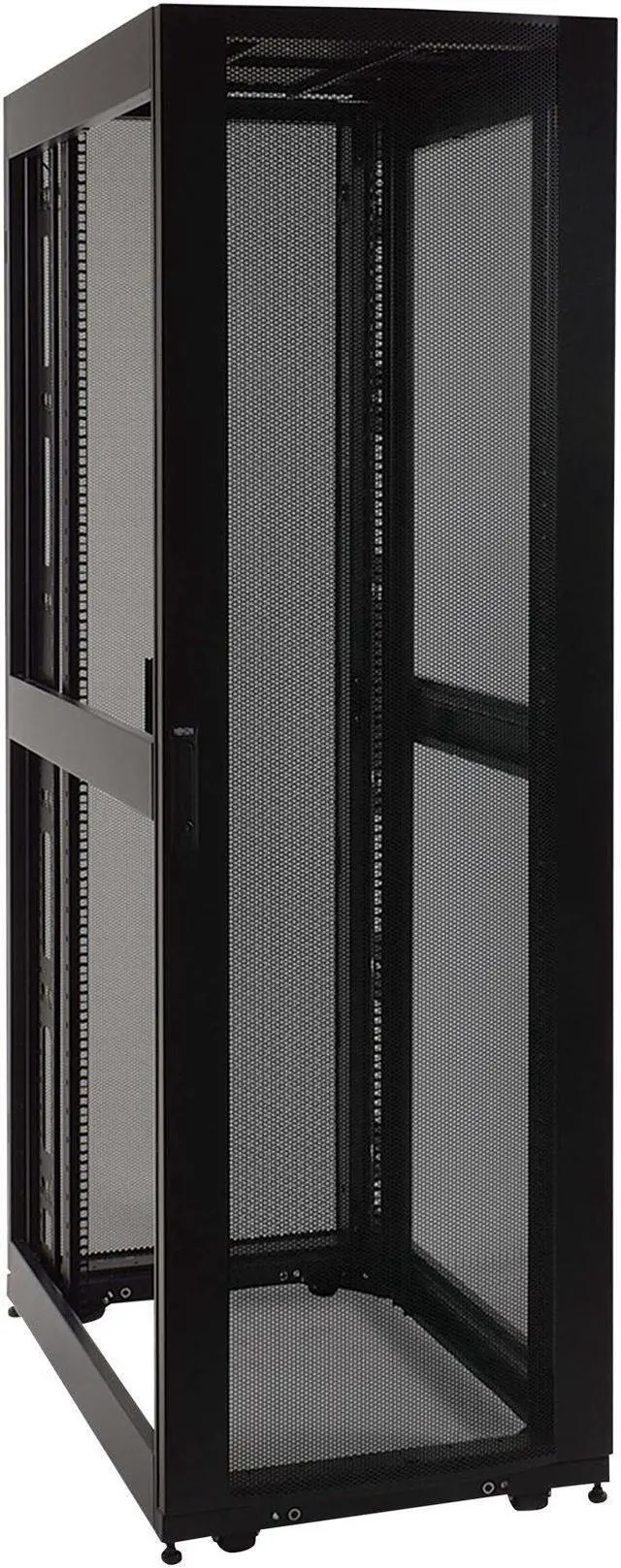

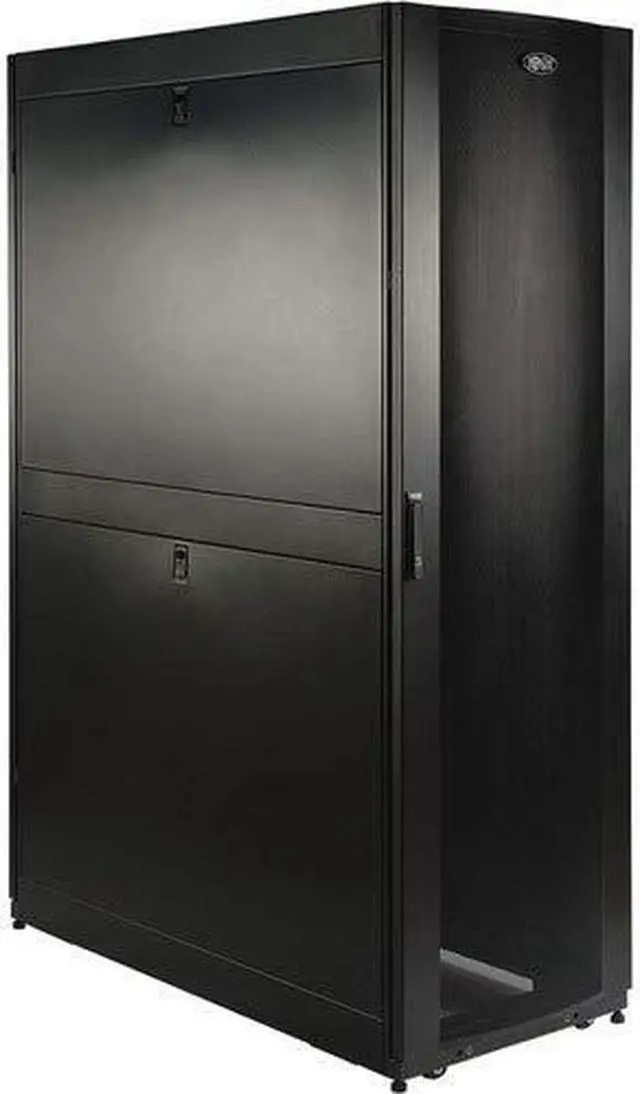

45U rack cabinet houses, organizes and secures extra-deep standard-width rack equipment in highdensity server and IT networking areas. Extra-Deep Server Cabinet Accommodates 45U of Standard-Width Rack EquipmentDesigned for network wiring closets, retail locations, classrooms, back offices and other areas with essential rack-mount IT equipment, this SmartRack reg; 45U rack enclosure is 48 inches (1219 millimeters) deep. This allows high-density equipment installations, extra space for cable management, and room for removing hot-swap power supplies from the rear of mounted devices. Constructed from heavy-duty steel with a durable black powder-coated finish, the SR45UBDP48 has a maximum stationary load capacity of 3000 pounds (1361 kilograms) and a maximum rolling load capacity of 2250 pounds (1021 kilograms).
Keeps Important Equipment Secure and Easy to AccessThe reversible front door, split rear doors and half-size side panels lock securely to help prevent damage, tampering or theft. The doors, side panels and top panel are designed for quick release, making it easy to access connected equipment and cabling with little effort. Convenient top access ports and an open bottom allow easy cable routing through the cabinet. The vented doors allow generous airflow from front to rear to keep your equipment cool and functioning at its peak. Easy Enclosure Deployment and Equipment InstallationThis 45U server rack comes fully assembled for quick and easy deployment with pre-installed casters that let you maneuver it over a level, smooth, stable surface and through a standard seven-foot doorway into position, where it can be stabilized by adjusting the levelers.
Four mounting rails adjust in quarter-inch increments from four to 42 inches. Two rails also support toolless 0U mounting for quick installation of up to four compatible PDUs and vertical cable managers to help cut down on clutter. Designed for Baying Multiple Enclosures in a RowBuilt-in baying brackets and removable s
Keeps Important Equipment Secure and Easy to AccessThe reversible front door, split rear doors and half-size side panels lock securely to help prevent damage, tampering or theft. The doors, side panels and top panel are designed for quick release, making it easy to access connected equipment and cabling with little effort. Convenient top access ports and an open bottom allow easy cable routing through the cabinet. The vented doors allow generous airflow from front to rear to keep your equipment cool and functioning at its peak. Easy Enclosure Deployment and Equipment InstallationThis 45U server rack comes fully assembled for quick and easy deployment with pre-installed casters that let you maneuver it over a level, smooth, stable surface and through a standard seven-foot doorway into position, where it can be stabilized by adjusting the levelers.
Four mounting rails adjust in quarter-inch increments from four to 42 inches. Two rails also support toolless 0U mounting for quick installation of up to four compatible PDUs and vertical cable managers to help cut down on clutter. Designed for Baying Multiple Enclosures in a RowBuilt-in baying brackets and removable s
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 1 year
- Limited Warranty period (labor): 1 year
- Read full details
Return Policies
- Return for refund until: January 31, 2027
- Return for replacement until: January 31, 2027
- This item is covered by Newegg.com's Extended Holiday Return Policy.
- Read full return policy for details.
We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.
Manufacturer Contact Info
- Manufacturer Website
- Support Phone: 1-773-869-1111
- Support Website
- View other products from Tripp Lite
LOADING...
The Tripp Lite SmartRack SR45UBDP48 is a 45U, 48-inch-deep server rack enclosure for IT teams managing high-density server or network equipment that needs extra room for cabling and rear access.
Recommended For
- Small-office or IT-closet operators consolidating rack equipment such as network gear, servers, and power equipment into a dedicated enclosure; Eaton positions its SmartRack cabinets for server rooms and IT closets.
- Home-lab builders who want to organize network and server equipment in a rack; community examples include setups combining switches, servers, and NAS hardware.
- Network installers or administrators seeking a cabinet for rack-mounted wiring and network equipment in a closet or retail location; Tripp Lite describes some wall-mount enclosures for these settings.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Rack-mounted server installations requiring a server-compatible storage enclosure |
| Enclosure And Mounting | Rack-mount storage enclosure made of alloy steel |
| Physical Specifications | Item weight: 340 pounds |
| Package Specifications | One item; package dimensions are 129.54 L × 62.23 W × 210.82 H centimeters and package weight is 176.9 kilograms |
| Assembly And Battery Requirements | Assembly required; batteries are neither required nor included |
| Model Identifiers | TRIPP LITE; model SR45UBDP48 |
| Color | Black |
