BitFenix Cube AIO ARGB CPU Liquid Cooler 240mm Radiator Black, Intel LGA1700/AMD AM5 Ready, Innovative Pump with Lift of 1.8 M/high Efficiency 5500RPM/ Silent 15DB Made in Taiwan

Brand-new AIO pump: Derived from the widely trusted water pump by players, it has a lift of 1.8 M with a high efficiency of 5500RPM and only 15DB working noise. Crystal Clear Water Block: The fully transparent water block design allows players to quickly understand whether the device is working properly. ARGB Silent Fan with 0DB Mode: The custom-designed fan for the Heightened heat sink has a wind pressure of 3.0MM-H2O, so that the high-end CPU can also maintain the correct temperature Thermal Paste - BitFenix TF10 EXTREME Included: 13.8 W / m.ks extremely high heat transfer capacity to meet the needs of the highest end users Thermal ConductivityW / m-k) 13.8 Color Gray Thermal lmpedance (-cm2/W) <0.01 Specific Gravity25) 2.7
Useable Temperature Range -220 / + 300 Electrically Conductive No Harmless Yes
Newly designed high pressure fan together with the specially designed radiator, BitFenix also launched a brand new fan design.
This newly designed seven-leaf fan has a CFM and DB that are not inferior to anyone, and the wind pressure generated outside is as high as 3.0MM-H2O. The high-pressure fan is used to penetrate the radiator with high-density and heightened heat dissipation fins. With the no noise design in 0DB mode, the whole AIO system can better meet the low noise level needs of the user.
Fan model ARGB 120mm PWM high- pressure Fan
Fan dimensions (mm) 120 x 120 x 25
Speed @ 100% PWM (rpm) 2000 ±10% RPM
Bearing technology Hydraulic Bearing
Rated Voltage (V) 12 Start voltage(V) 5V (Power ON/OFF)
Rated current (A) 0.19A / LED:0.30A
Power consumption (W) 2.28W
Connector 4-pin PWM
Max. air flow 60CFM
Air Pressure 3.0MM-H2O Noise 34.0dB-ARGB Fan
Extension Cable length (mm)400+200
Power Extension Cable length (mm) 400
Bitfenix Cube AIOs Block features a central inlet design with a jet plate equipped in the middle of the water block contacting the CPU heat source directly accelerating the extraction of heat. In addition, it has optimized 0.2mm micro-channels on the copper plate, providing flawless distribution of coolant with superior heat transfer and durability
In order to match the latest top-level CPUs, we have developed a brand new pump based on the popular pump architecture. It has the ultimate specifications of 5500RPM and vertical lift of up to 1.8m, while operating at only 15db.
Socket compatibility Intel: 1700 / 1200 / 1150 / 1151 / 1155 AMD: AM5 / AM4
Pump speed (rpm) 5500 rpm
Pump adjustable 9V - 12V
Pump connector 4-pin
Tube length (mm) Tube length (mm) 450
Noise level15dB
Refill port

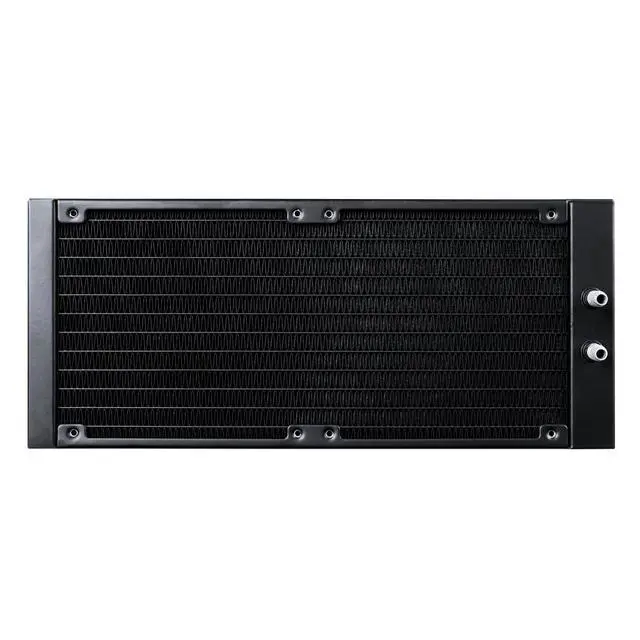

High Density Radiator: The BitFenix Cube AIO sports a high density radiator with a FPI: of 20 which are connects to 12 tubes for better heat dissipation.Heightened Radiator Fins: Heat dissipation fins raised from 16mm to 20mm increases the cooling efficiency while maintaining the same dimensions.
The average temperature of using thick radiator get 3 °C lower than the thin one.
240 Radiator specifications
Dimensions (H x W x D), (mm) 277 x 120 x 27
Radiator material / finish aluminum / black or white spray painted
Base material / finish copper / nickel plating
CUBE AIO features a copper base with mirror-finished anti-corrosive nickel plating.
The specialized plating technique of the copper base accelerates heat dissipation and extends the product's durability.
CUBE AIO CPU Liquid Cooler: High Quality Made In Taiwan Outstanding performance with testing numbers compared to major brands Newly Designed High Pressure Fan Central Inlet Design with Optimized 0.2mm Micro-Channel Structure Innovative Pump: vertical lift of 1.8 M with a high efficiency of 5500RPM and only 15DB silent working noise. 25% higher cooling fin height While maintaining standard radiator thickness ARGB Water Block & Radiator CUBE AIO features a copper base with mirror-finished anti-
