ICY DOCK EZ-Adapter MB104U-1SMB R1 USB 3.2 Gen 2 (Type-C) to 2.5" SATA SSD/HDD & M.2 NVMe/SATA SSD Adapter with Tray-Compatible Design
- Supports 1x 2.5 SATA SSD/HDD or M.2 SATA/NVMe SSD (Not supported using 2.5 and M.2 drives simultaneously)
- Supports transfer speeds up to 10Gbps under USB 3.2 Gen 2 (Depending on drive and host specs)
- Tool-less SSD installation design with or without a drive tray
- Supports direct connection of drive trays such as ICY DOCK MB840TP-B / MB305TP-B / MB204TP-B and other standard tray types without PCB
- Enables interchangeable workflow between internal tray systems and external USB storage devices
- Supports UASP, plug and play, TRIM
- Cool blue drive activity LED indicator
- Anti-slip rubber foot pad to ensure adapter does not slip on the surface
- Includes USB Type-C to C cable
- USB-bus powered requires no external power adapter
- Supports Windows, Mac, and Linux systems
- Industry-leading 3-year warranty with complimentary tech support & customer service
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
| Model Number : | MB104U-1SMB R1 |
| Available Colors : | Black |
| Support Drive Size : | 1 x 2.5 SATA drive SSD/HDD or 1 x M.2 NVMe/SATA SSD |
| Host Interface : | USB 3.2 Gen 2 Type C |
| Power Input : | Via USB |
| Transfer Rate : | Up to 10Gbps (depending on drive and host specifications) |
| Controller IC : | RTL9210B |
| Structure / Material : | ABS plastic |
| Dimension (W x H x L) : | 91.5 x 61.1 x 18.5 mm |
| Product Net Weight : | 49.9 g |
| Package Gross Weight : | 85.8 g |
| Drive Activity LED Indication : | Device power : solid blue ; Drive access:flashing blue |
| Plug & Play : | Yes |
| Package Contents : | Device, user manual, USB 3.2 Gen 2 type C to C cable |
| M.2 Connector Insertion Rate : | 5,000 |
| SATA Connector Insertion Rate: | 10,000 |
| Humidity : | 5%~65% RH |
| Operating Temperature : | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature : | -35°C to 70°C (-31°F to 158°F) |
| Compliance : | CE, RoHS, REACH |

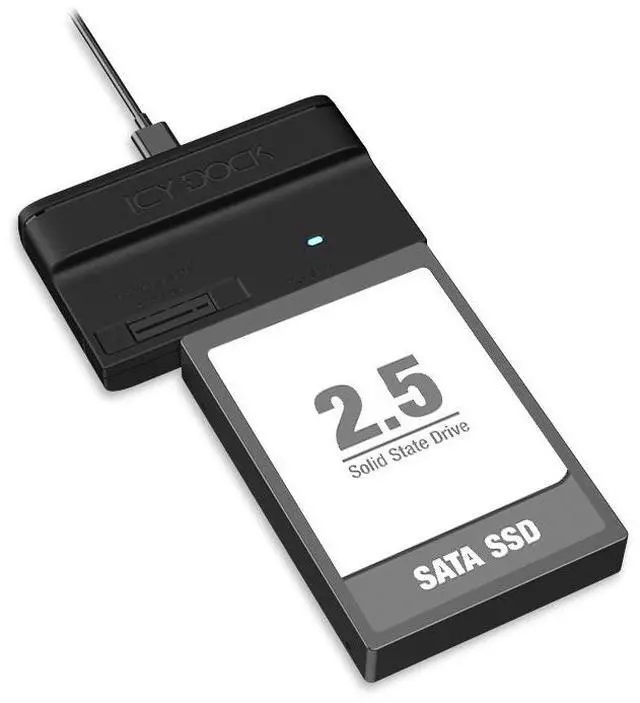

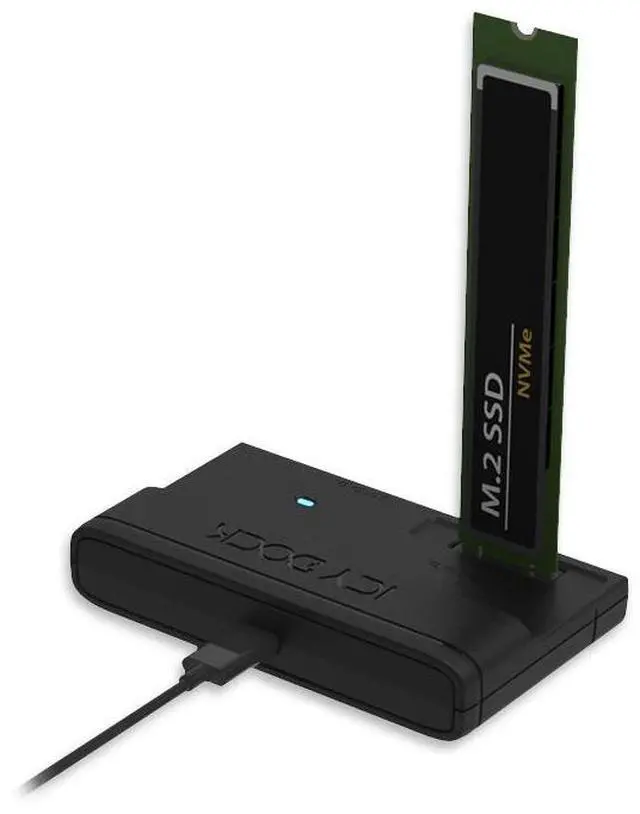

The EZ-Adapter MB104U-1SMB R1 provides a quick and convenient way to access your 2.5-inch SATA SSD/HDD or M.2 NVMe/SATA SSD through a single USB-C port. Supporting transfer speeds up to 10Gbps via USB 3.2 Gen 2, this ultra-portable adapter lets you instantly connect drives for data migration, backup, or duplication - no external power or tools required.
The R1 version introduces tray compatibility with selected ICY DOCK MB840TP-B and OEM drive trays. Users can now insert an M.2 NVMe or SATA SSD while it remains installed inside its tray no need to remove the drive before connecting. This feature also supports certain HP, Dell, and SuperMicro trays that follow a standard direct-connect design (without on-board PCB). By connecting internal removable SSD trays directly to an external USB interface, the MB104U-1SMB R1 enables a truly interchangeable workflow between internal NVMe storage systems and portable devices, significantly reducing maintenance and data-transfer time.
Experience superior performance with transfer speeds up to 1000MB/s when paired with an M.2 NVMe SSD and a USB 3.2 Gen 2 host system. For M.2 SATA or 2.5 SATA SSD/HDD, users can achieve up to 600MB/s. Whether for large file backups, OS cloning, or professional testing, the MB104U-1SMB R1 ensures fast and reliable throughput for all your data tasks.
The open-frame architecture exposes both 2.5 and M.2 drives to ambient airflow, ensuring efficient heat dissipation during extended data transfers. This design helps maintain optimal performance and prolongs the lifespan of your SSDs and HDDs.
Designed for mobility and everyday use, the MB104U-1SMB R1 features a compact and lightweight construction that easily fits into any laptop bag or toolkit. It draws power directly from the USB-C host port, removing the need for an external power adapter and making it an ideal solution for field technicians, IT professionals, and users who require fast data access on the go.
The EZ-Adapter MB104U-1SMB R1 is equipped with a blue LED indicator that provides clear visual feedback during drive operation. The LED blinks to indicate data access activity, allowing users to easily monitor the status of their connected drives at a glance.
