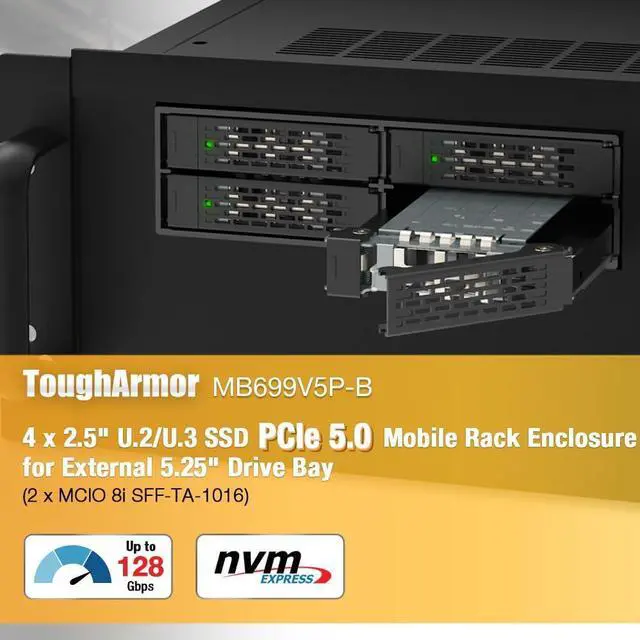

ICY DOCK ToughArmor MB699V5P-B 4-Bay PCIe 5.0 U.2/U.3 NVMe SSD Mobile Rack Enclosure for External 5.25" Drive Bay (2 x MCIO 8i SFF-TA-1016)

The ToughArmor MB699V5P-B packs next-generation performance and rugged durability into a compact mobile rack solution, integrating up to four enterprise U.2/U.3 NVMe SSDs (7-15mm height) into a single external 5.25" optical drive bay. With PCIe 5.0 support delivering transfer speeds of up to 128Gbps per drive through dual MCIO 8i (SFF-TA-1016) connectors, a redesigned airflow-optimized enclosure, and a lightweight aluminum housing, the MB699V5P-B is built for mission-critical applications in servers, workstations, and compact systems where maximum speed, security, and reliability are essential.

Built for High-Performance Applications

The MB699V5P-B is designed for workflows that demand extreme I/O performance and hot-swappable NVMe SSD access. It is particularly well-suited for edge computing nodes, HPC clusters, and AI/ML training systems that rely on fast dataset streaming. Industrial imaging and medical diagnostic platforms also benefit from its removable design, enabling quick SSD replacement during maintenance.

In addition, the MB699V5P-B is an excellent fit for system integrators, labs, and R&D environments, where frequent SSD swaps are necessary for validation, testing, or rapid dataset changes. This makes it a versatile solution that bridges enterprise-grade performance with flexible deployment scenarios.

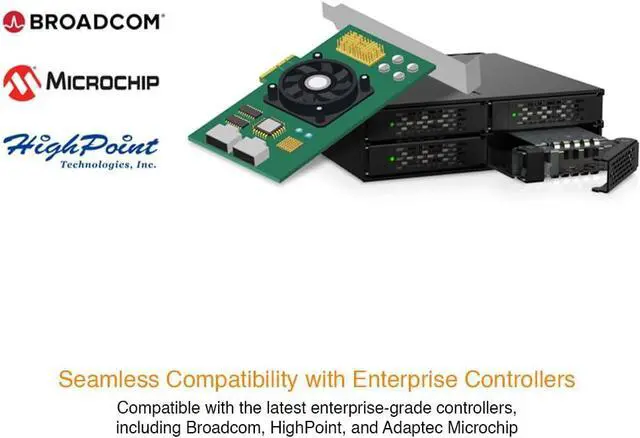

Seamless Compatibility with Enterprise Controllers

The MB699V5P-B is fully compatible with the latest enterprise-grade controllers, including Broadcom, HighPoint, and Adaptec Microchip. We actively collaborate with controller manufacturers to validate performance and interoperability, ensuring that choosing ICY DOCK means not only investing in a rugged enclosure but also benefiting from ongoing technical support and long-term compatibility across platforms.

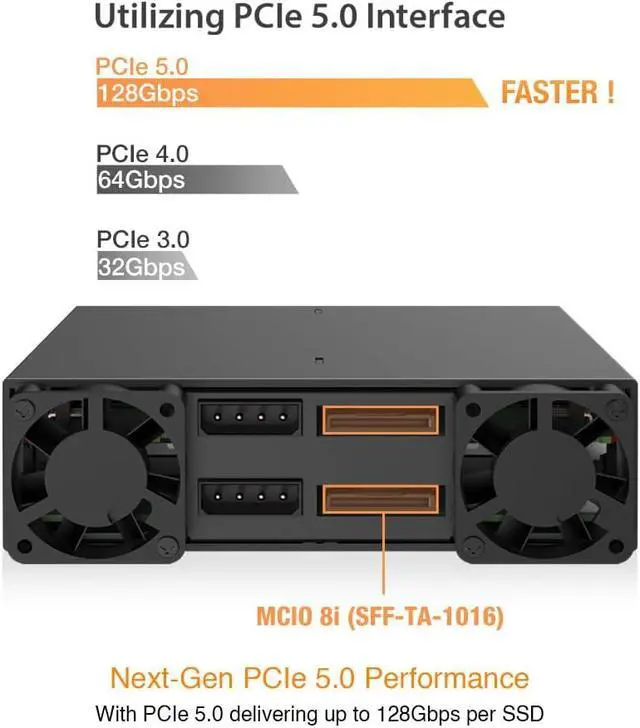

Next-Gen PCIe 5.0 Performance

With PCIe 5.0 delivering up to 128Gbps per SSD, the MB699V5P-B offers double the bandwidth of PCIe 4.0 and four times faster than PCIe 3.0. This exceptional speed makes it a perfect fit for applications such as:

1. High-resolution video editing and playback (8K/12K workflows)
2. Real-time scientific simulations and AI/ML data training
3. High-frequency trading and transactional databases
4. Large-scale virtualization and cloud computing environments

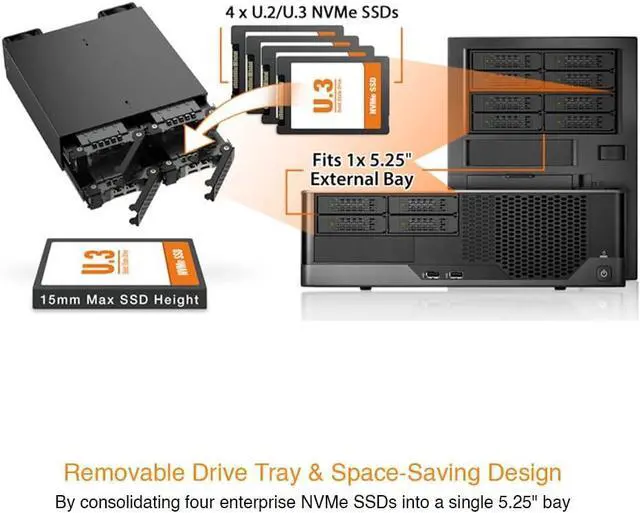

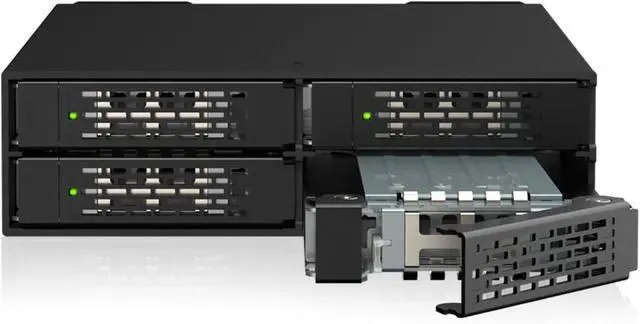

Removable Drive Tray & Space-Saving Design

The ToughArmor EZ-Slide Mini trays support all standard 7mm and 15mm U.2/U.3 SSDs, while the bay design accommodates drives ranging from 5mm to 15mm in height.

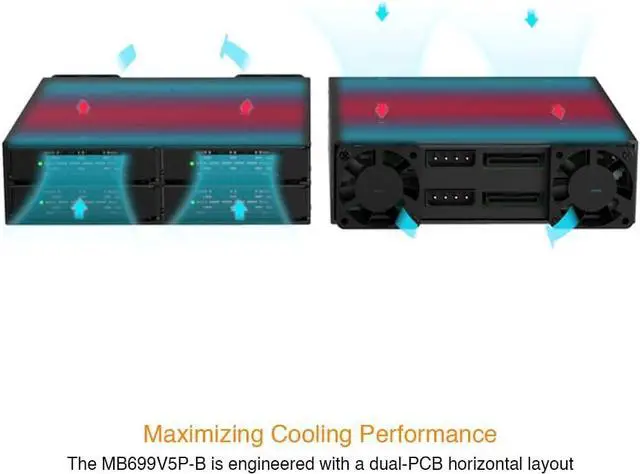

Maximizing Cooling Performance

The MB699V5P-B is engineered with a dual-PCB horizontal layout that dramatically enhances airflow compared to previous generations. This optimized design is paired with two 40×40×10mm cooling fans and a lightweight all-aluminum housing, ensuring stable thermal management for PCIe 5.0 SSDs under continuous workloads.

In addition to improved airflow, the new cooling system also delivers quieter operation, with fan noise reduced from 40dB in the previous generation to just 27.5dB - a 31% reduction. This combination of efficient cooling and lower noise makes the MB699V5P-B ideal for performance-critical environments where both reliability and acoustics matter.

EMI Grounding Technology

Each removable drive tray includes EMI grounding to protect drives from electrical interference during insertion, ensuring a stable and secure environment for sensitive enterprise-grade NVMe SSDs.

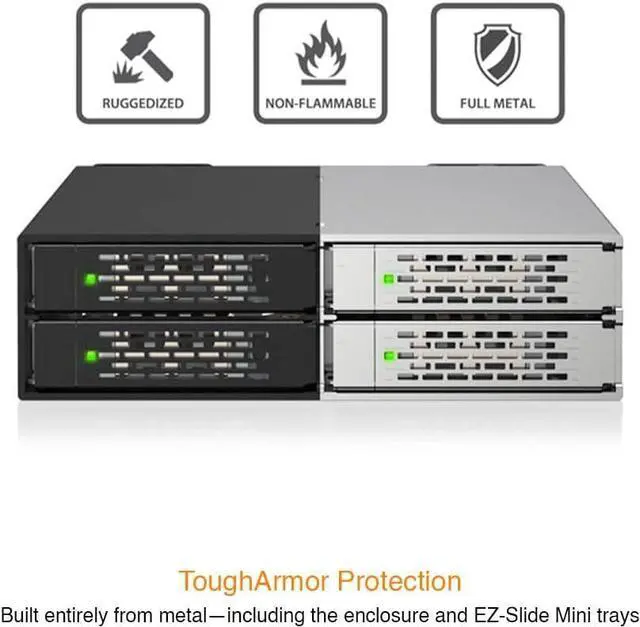

ToughArmor Protection

Built entirely from metalincluding the enclosure and EZ-Slide Mini traysthe MB699V5P-B meets the toughest industrial requirements for reliability and safety. Its rugged construction is suitable for military, medical, in-vehicle, and factory automation systems.

Convenient Utility & Accessibility

The front of the ToughArmor features individual drive status LEDs that clearly indicate power, activity, and no-drive status. With Active Power Technology (APT), the LEDs only illuminate when a drive is installed, reducing unnecessary power consumption. For added security, the tray integrates an eagle-hook lock system to prevent accidental ejection, ensuring your drives remain safe and stable during operation.

Never forget which drives belong in what bays. With included individual drive ID labels, you'll always know which drive tray belongs in your RAID array or which drives contains specific files. Freely unplug and rearrange them to better suit your configurations or remove them for a simplified look.
