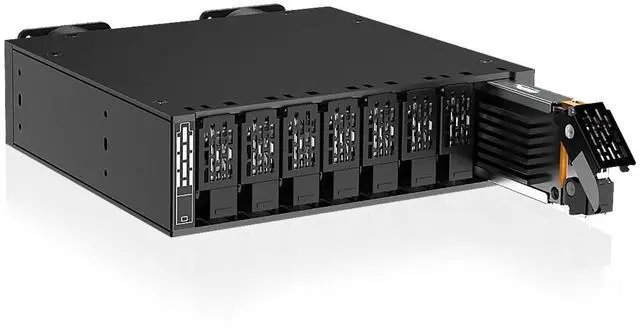

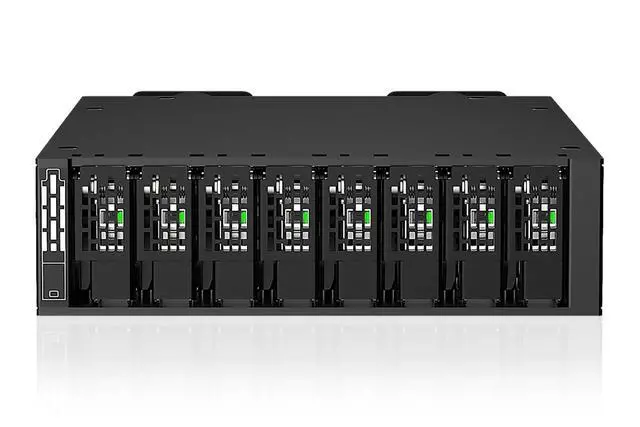

ICY DOCK ToughArmor MB218E5P-B 8 Bay 15mm E1.S SSD (9.5/15mm Heights) Mobile Rack for External 5.25" Drive Bay (4 x MCIO 8i SFF-TA-1016)
- Supports 8 x E1.S NVMe SSDs (9.5mm/15mm) in a single external 5.25" drive bay
- PCIe 5.0 x4 per slot, up to 128Gbps (depending on SSD speed)
- Front LED indicators: Green (power/activity)
- 4× MCIO 8i (SFF-TA-1016) ports; pin-out defined by SFF-9402 Rev 1.1
- Designed for broad integration with major HBA/RAID ecosystems (Broadcom, HighPoint, Areca, etc.)
- Hot-plug drive swapping support (platform support required)
- Dual 40x40x20mm cooling fans with optimized airflow path, supporting ASHRAE A2 thermal design targets
- Rugged full-metal construction with EMI shielding and grounding design
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
High-Density 8-Bay E1.S NVMe Storage in a Single 5.25" Bay
The ToughArmor MB218E5P-B is a high-density E1.S (EDSFF) NVMe SSD mobile rack designed to fit a standard 5.25" drive bay while supporting up to eight E1.S SSDs in 9.5mm or 15mm heights.
Built for PCIe Gen5 storage platforms, each slot supports PCIe 5.0 x4 bandwidth with transfer speeds up to 128Gbps (depending on SSD performance)ideal for high-throughput storage nodes that require compact serviceability without compromising performance.

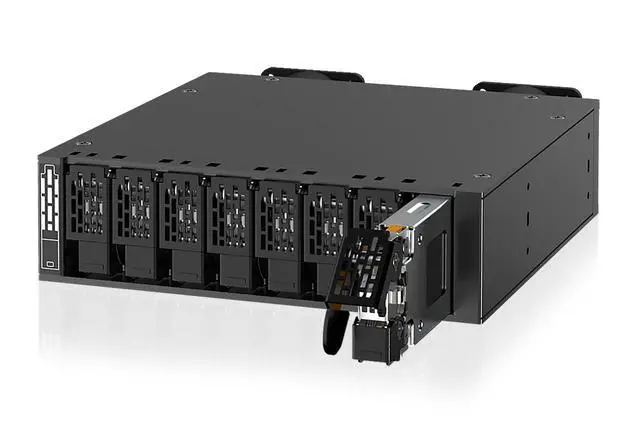

Removable Drive Trays with Screwless E1.S SSD Installation
To streamline deployment and maintenance, MB218E5P-B features eight removable drive trays with screwless SSD installation, allowing technicians to install or replace E1.S drives quickly in routine service cycles.
For environments that involve frequent drive swaps or controlled data transport, the removable tray workflow reduces handling time and helps standardize drive management across systems - especially when the chassis layout makes direct internal access difficult.
Clean Cabling for Full PCIe Gen5 Bandwidth via MCIO + EPS Power
MB218E5P-B uses four MCIO 8i (SFF-TA-1016) ports with a single ATX EPS 8-pin power connector to simplify wiring in dense builds. This architecture is intended for platforms using tri-mode HBA/RAID cards, providing a clean and scalable way to route PCIe signals and power for high-speed NVMe storage integration.
Dual Detachable 40mm Fans for Active Cooling Performance
To address the thermal demands of PCIe Gen5 NVMe SSDs, the MB218E5P-B is equipped with dual detachable 40mm fans (40×40×20mm) to maintain airflow and support stable operation in compact, high-density environments. In addition, Active Power Technology (APT) helps reduce unnecessary wear and noisethe LEDs and fans power on only when a drive is installed.
Enterprise-Ready ToughArmor Construction and Reliability Features
Built with a rugged full-metal enclosure, MB218E5P-B is engineered for durability in enterprise environments. Front status LEDs provide quick at-a-glance monitoring, with green indicating power and activity.
Integrated grounding points help reduce EMI interference between the enclosure and chassis, supporting stable operation in signal-sensitive systems and professional deployments.
Compatible Drive Tray (Caddy): MB218TP-B
| Model Number: | MB218E5P-B |
| Color: | Black |
| Support Drive Size: | 9.5/15mm E1.S SSD |
| Compatible Drive Type: | E1.S SSD |
| Number of Drives: | 8 |
| Drive Bay: | 1 x 5.25" bay |
| Host Interface: | 4 x MCIO 8i (SFF-TA-1016) |
| Power Input: | 1 x EPS 8 pin power connector |
| Transfer Rate: | Up to 128Gbps (depending on SSD speed) |
| Support SSD Capacity: | No limitation |
| Drive Cooling: | 2 x 40 x 40 x 20mm fan |
| Structure / Material: | Full metal |
| Hot Plug: | Yes |
| Product Dimension (W x H x D): | 146 x 41.2 x 168.7 mm |
| Product Net Weight: | 841.3g |
| Package Gross Weight: | 1051.8g |
| Drive Activity LED Indication: | Green: LED (drive power: solid green, drive access: flashing green) |
| Package Contents: | Device, user manual, screws, 1 x EPS 8 pin to 2 x PCIe 8 pin adapter cable, ID plugs |
| Connector Insertion Rate: | 5,000 |
| Humidity: | 5%~65% RH |
| Operating Temperature: | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature: | -35°C to 70°C (-31°F to 158°F) |
| Compliance: | CE, UKCA, RoHS, REACH |
| Warranty: | 5 years limited warranty |
