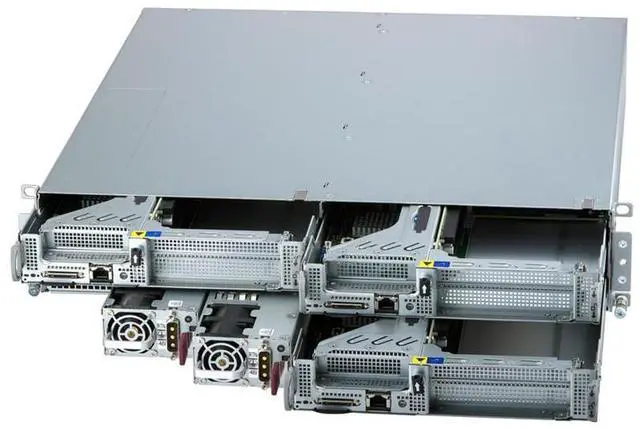

SYS-211SE-31D IoT 2U Barebone Single Xeon Scalable Processors 5th And 4th Generation
- SYS-211SE-31D IoT 2U Barebone Single Xeon Scalable Processors 5th And 4th Generation
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
1. Single Socket E (LGA-4677) 5th Gen Intel® Xeon®/4th Gen Intel® Xeon Scalable processors (per node)
2. 8 DIMMs; Up to 2TB ECC DDR5-5600MT/s; R-DIMM / R-DIMM 3DS (per node)
3. 2 PCIe Gen5 x16 FHHL slot and 1 PCIe Gen5 x16 HHHL slot (per node)
4. 2 NVMe M.2 2280/22110 (per node)
5. 4 counter-rotated fan speed control (per node); 1 Air Shroud (per node)
6. Front-access 1+1 Redundant 2000W DC Power Supplies (per system)
7. Operating Temperature 0°C to 35°C ( 32°F to 95°F ) CPU TDP max 300W Operating Temperature 0°C to 55°C ( 32°F to 131°F ) CPU TDP max 205W Operating Temperature -5°C to 55°C ( 23°F to 131°F ) CPU TDP max 205W (Short Term)
| Product SKUs | |
| Product SKUs | SYS-211SE-31D |
| Motherboard | |
| Motherboard | Super X13SEED-F |
| Processor (per Node) | |
| CPU | Single Socket E (LGA-4677) |
| 4th Gen Intel® Xeon® Scalable processors | |
| Supports 85W - 300W TDP CPUs (Air Cooled) | |
| Cores | Up to 20C/40T; Up to 60MB Cache |
| Note | CPUs (Air Cooled) with TDP over 205W are only supported under specific conditions. Contact customer support for details. |
| System Memory (per Node) | |
| Memory | Memory Capacity: 8 DIMM slots |
| Up to 2TB: DDR5 ECC RDIMM/RDIMM | |
| Memory Type: 4800MHz ECC DDR5 RDIMM/LRDIMM | |
| Memory Voltage | 1.1 V |
| Error Detection | ECC |
| On-Board Devices (per Node) | |
| Chipset | Intel® C741 |
| Network Connectivity | 1x 1GbE BaseT port(s) |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | |
| Input / Output (per Node) | |
| LAN | 1 RJ45 GbE LAN port (shared with IPMI) |
| Video | 1 VGA port(s) |
| Serial Port | 1 COM Port(s) (1 COM) |
| Others | 1 KVM dongle (output VGA x1, COM x1, USB 2.0 x2 through KVM cable) |
| Management | |
| Software | SuperDoctor® 5 |
| IPMI 2.0 | |
| Power Configurations | Power-on mode for AC power recovery |
| ACPI Power Management | |
| PC Health Monitoring | |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors | |
| Fans with tachometer monitoring |
