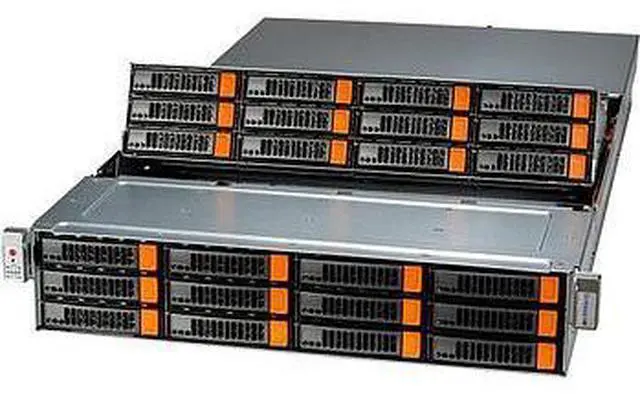

    SSG-620P-E1CR24H Storage 2U Barebone Dual Xeon Scalable Processors 3rd Generation

    Be the first to review this product...
    • SSG-620P-E1CR24H Storage 2U Barebone Dual Xeon Scalable Processors 3rd Generation
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

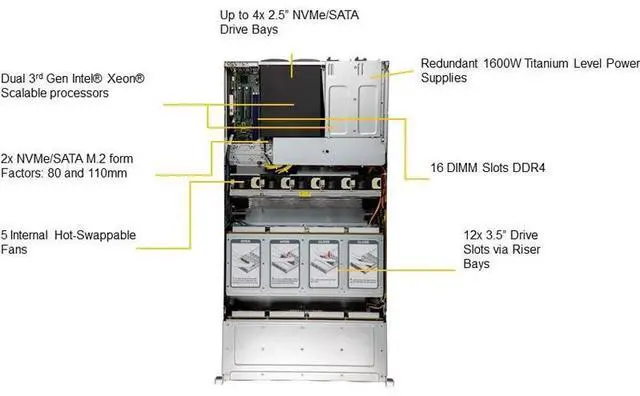

    1. Dual socket 3rd Gen Intel® Xeon® Scalable processors, up to 72 Cores Per Node

    2. 16 ECC DDR4-3200: LRDIMM/RDIMM

    3. Dedicated PCIe 4.0 AIOM slot 3 x PCIe 4.0 x16 Slots

    4. Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN per node

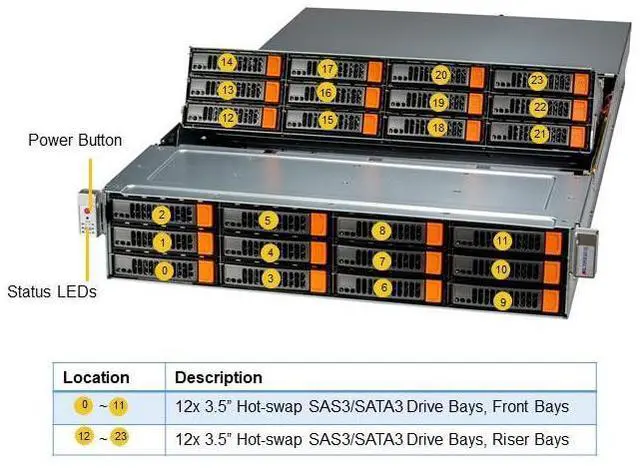

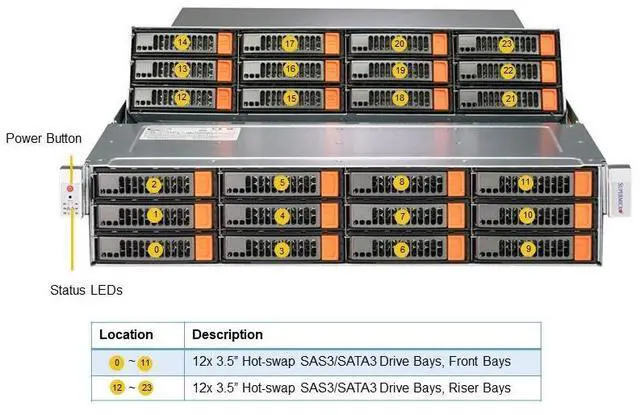

    5. 24 3.5" Hot-swap SAS3/SATA3 drives, 4x Rear SATA/NVMe Slots, 2x SATA/NVMe M.2 (form factor: 2280)

    6. 5x 8cm hot-swap counter-rotate redundant PWM cooling fans

    7. 1600W Redundant Power Supplies Titanium Level (96%)

    8. HW RAID support via Broadcom® 3908


    Motherboard
    MotherboardSuper X12DSC-A6
    Processor
    CPU3rd Gen Intel® Xeon® Scalable processors

    		Dual Socket P+ (LGA-4189)

    		Support CPU TDP 120-205W
    CoresUp to 38C/76T; Up to 57MB Cache
    System Memory
    MemoryMemory Capacity: 16 DIMM slots

    		Memory Type: 3200MHz ECC DDR4 RDIMM;LRDIMM

    		Up to 4TB: 16x 256 GB DRAM
    Memory Voltage1.2 V
    Error DetectionECC
    On-Board Devices
    ChipsetIntel® C621A
    Network Connectivity2x 10GbE BaseT with Intel® X550
    IPMISupport for Intelligent Platform Management Interface v.2.0

    		IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

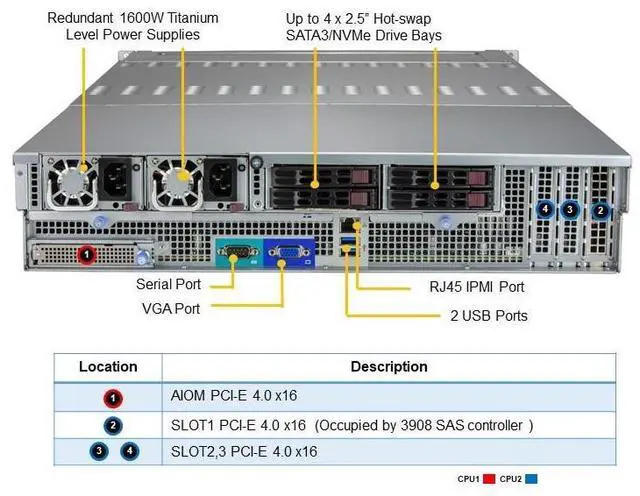

    Input / Output
    LAN1 RJ45 Dedicated IPMI LAN port
    USB2 USB 3.0 port(s) (2 Rear_USB)
    Video1 VGA port(s)
    Serial Port1 COM Port(s) (1 rear)
    DOM2 Super DOM (Disk on Module) port
    System BIOS
    BIOS TypeAMI 128MB SPI Flash EEPROM
    Management
    SoftwareWatch Dog

    		NMI

    		SuperDoctor® 5

    		IPMI 2.0

    		SUM
    Power ConfigurationsPower-on mode for AC power recovery

    		ACPI Power Management
    PC Health Monitoring
    CPUMonitors for CPU Cores, Chipset Voltages, Memory

    		4+1 Phase-switching voltage regulator
    FANStatus monitor for speed control
