SYS-530AD-I Gaming PC Mid-Tower Single Core I3/I5/I7/I9 Processors 11th Generation
- SYS-530AD-I Gaming PC Mid-Tower Single Core I3/I5/I7/I9 Processors 11th Generation
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
1. 11th Generation Intel® Core Processors (i3/i5/i7/i9), Pentium® and Celeron® Processors

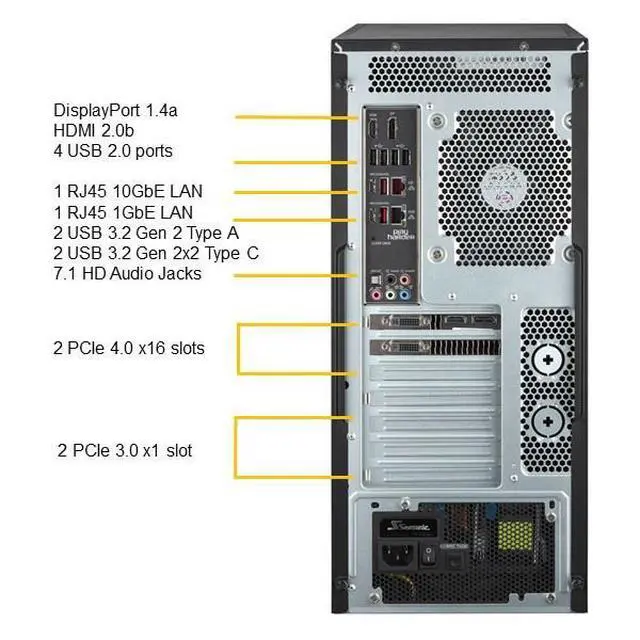

2. 2 PCIe 4.0 x16 slots (16/NA or 8/8)2 PCIe 3.0 x1
2xPCIe 4.0 x16 Slots (Slot#4 and Slot#6 can be configured as 16/NA, 8/8)
M.2 Interface: 1 PCIe 4.0 x4 and 2 PCIe 3.0 x4
3. Single LAN with Intel® i219V 1Gb
Single LAN with Marvell AQC113C 10Gb
4. 3x 12cm PWM Fans
5. 750W 80PLUS Gold Power Supply
| Motherboard | |||
| Motherboard | Super C9Z590-CG | ||
| Processor | |||
| CPU | Single Socket H5 (LGA-1200) | ||
| 11th Generation Intel® Core Processors | |||
| Support CPU TDP 125W | |||
| Cores | Up to 8C/16T; Up to 16MB Cache | ||
| System Memory | |||
| Memory | Memory Capacity: 4 DIMM slots | ||
| Memory Type: 3200MHz DDR4 non-ECC UDIMM | |||
| On-Board Devices | |||
| Chipset | Intel® Z590 | ||
| Network Connectivity | 1x 1GbE BaseT with Intel® PHY i219V | ||
| 1x 10GbE BaseT with Marvell AQC113C | |||
| Input / Output | |||
| SATA | 4 SATA (6Gbps) port(s) | ||

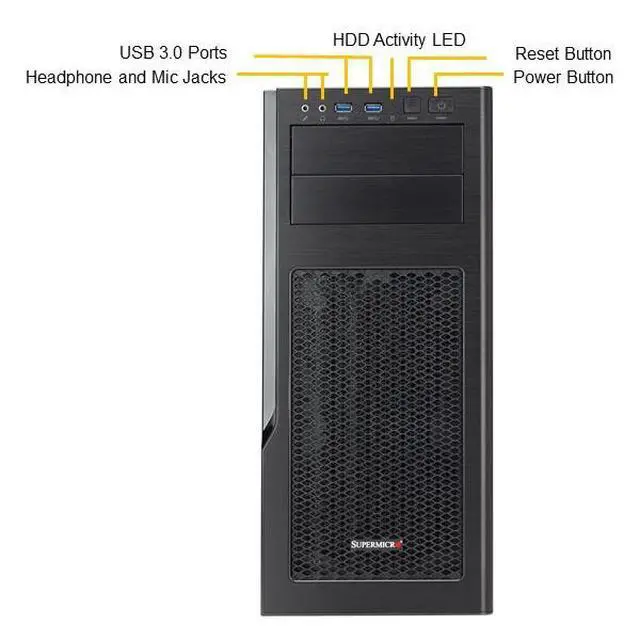

| USB | 2 USB 3.2 Gen 1 port(s) (2 front) | ||
| 2 USB 3.2 Gen 2 port(s) (2 rear) | |||
| 3 USB 3.2 Gen 2x2 port(s) (3 rear) | |||
| 6 USB 2.0 port(s) (2 header; 4 rear) | |||
| Serial Port | 1 COM Port(s) (1 header) | ||
| Video | 1 HDMI 2.0b port(s) | ||
| 1 DisplayPort (s) | |||
| Audio | 7.1 HD Audio | ||
| System BIOS | |||
| BIOS Type | AMI 256MB SPI Flash | ||
| Management | |||
| Software | SuperDoctor 5 | ||
| Power Configurations | ACPI 6.0 | ||
| PC Health Monitoring | |||
| Voltage | +1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM temperature | ||
| Other Features | 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, RoHS, Voltage and Frequency Overclocking, WOL | ||
| Chassis | |||
| Form Factor | Mid-Tower | ||
| Model | CSE-GS5A-754K | ||
| Dimensions and Weight | |||

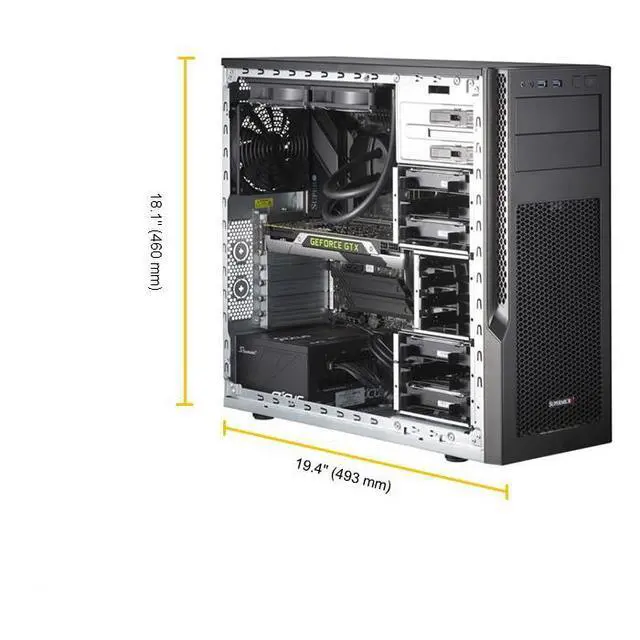

| Height | 18.1" (460mm) | ||
| Width | Learn more about the Detailed Specifications
