SYS-E102-13R-E IoT Fan-Based Embedded Raptor Lake-P I5-1350PE 12C/16T Processor
- SYS-E102-13R-E IoT Fan-Based Embedded Raptor Lake-P I5-1350PE 12C/16T Processor
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
1. Intel® Intel® Raptor Lake-P I5-1350PE 12C/16T Processor
2. Dual Channel DDR5 4800MHz SO-DIMM, up to 64GB
3. 2x 2.5GbE LAN Ports
4. 1x 2.5 7mm Storage Drive
5. 1x M.2 M-Key 2242/2280 (PCIe x4), 1x M.2 E Key 2230, 1x M.2 B-key 2242/3042/2280
6. 4x USB 3.2 Ports Gen2, 2x HDMI Port, 2x DisplayPort (2x USB type-C for USB & DP)
| Product SKUs | |||
| Product SKUs | SYS-E102-13R-E | ||
| Motherboard | |||

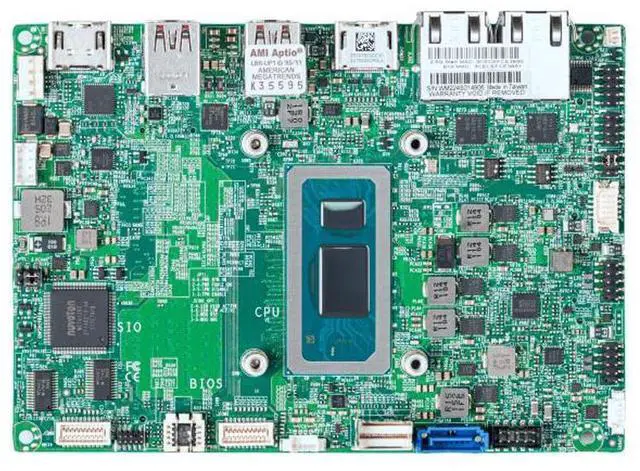

| Motherboard | Super X13SRN-E-WOHS | ||
| Processor | |||
| CPU | Single processor(s) | ||
| Core Count | 12C/24T; 12MB Cache | ||
| Note | Supports up to 28W TDP CPUs (Air Cooled) | ||
| System Memory | |||
| Memory | View Memory Options | ||
| Slot Count: 2 DIMM slots | |||
| Max Memory (2DPC): 64GB 4800MT/s non-ECC DDR5 SO-DIMM | |||
| Memory Voltage | 1.1V | ||
| On-Board Devices | |||
| SATA | SATA (6Gbps) | ||
| Chipset | Intel® System on Chip | ||
| Network Connectivity | View AOC Options | ||
| 2 RJ45 2.5GbE with Intel® I226-IT | |||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | ||
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | |||

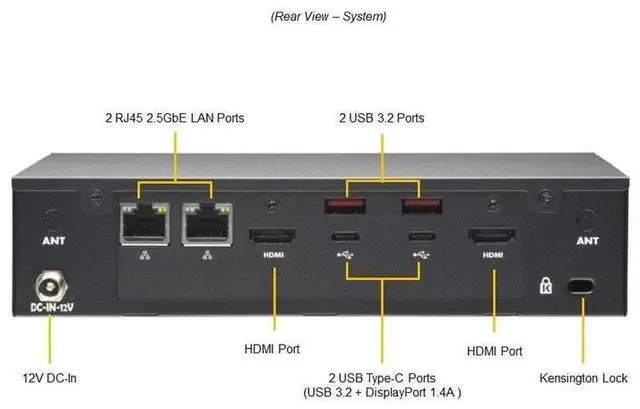

| Input / Output | |||
| LAN | 2 RJ45 2.5 GbE LAN port(s) | ||
| USB | 2 USB 3.2 Gen2 Type-A port(s) (Rear) | ||
| 2 USB 3.2 Gen2 Type-C port(s) (Rear) | |||
| Video | 1 HDMI 2.0b port(s) (Rear) | ||
| 1 HDMI 1.4b port(s) (Rear) | |||
| 2 DisplayPort over USB Type-C 1.4 port(s) (Rear) | |||
| System BIOS | |||
| BIOS Type | AMIUEFI | ||
| BIOS Features | ACPI 6.4 | ||
| SMBIOS 3.5 or later | |||
| UEFI 2.8B | |||
| PCI F/W 3.3 | |||
| Management | |||
| Software | KVM with dedicated LAN | ||
| Redfish API | |||
| SuperDoctor® 5 | |||
| IPMI 2.0 | |||
| Supermicro Update Manager (SUM) | |||
| Supermicro Server Manager (SSM) | |||
| Super Diagnostics Offline | |||
| Power configurations | Learn more about the Detailed Specifications
