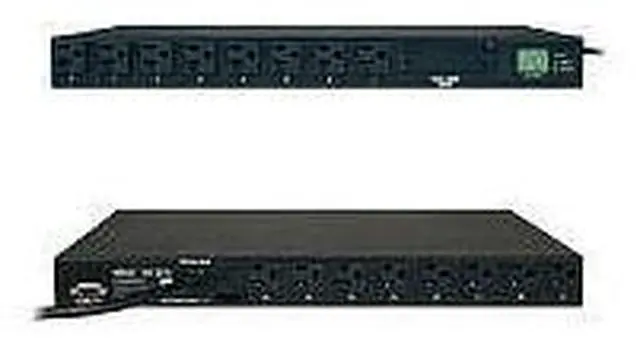

PDUMH20AT Metered PDU With Automatic Transfer

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

1U rackmount PDU with digital current monitoring display

20A 120V capacity with 16 NEMA 5-15/20R outlets

Connects to NEMA 5-20R and locking L5-20R receptacle

Sequential outlet power-on prevents inrush-related equipment interaction on startup

Integrated Automatic Transfer Switch (ATS) allows PDU to operate from secondary input source when primary input fails

Main Specifications
Device Type	Power distribution unit - rack-mountable
Dimensions (WxDxH)	17.5 in x 14.5 in x 1.7 in
Color	Black
Height (Rack Units)	1U
Weight	12.1 lbs
Interface	1 x management - 9 pin D-Sub (DB-9)
Power Device
Frequency Required	50/60 Hz
Input Connector(s)	2 x power NEMA L5-20
Input Voltage	AC 120 V
Max Electric Current	20 A
Output Connector(s)	16 x power NEMA 5-15/20
Output Voltage	AC 120 V ( 50/60 Hz )
Expansion / Connectivity
Expansion Slots Total (Free)	1 ( 1 ) x expansion slot
Environmental Parameters
Humidity Range Operating	0 - 95%
Max Operating Temperature	104 F
Min Operating Temperature	32 F
Miscellaneous
Cables Included	1 x power cable - 12 ft 1 x power cable - 12 ft 2 x power connector adapter - 6 in
Compliant Standard(s)	NOM, RoHS
Feature(s)	Wall mountable , current meter, amp meter, LED indicators, Automatic Transfer Switch (ATS)

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
