PDUMV30HV Metered PDU - Power Distribution Unit

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

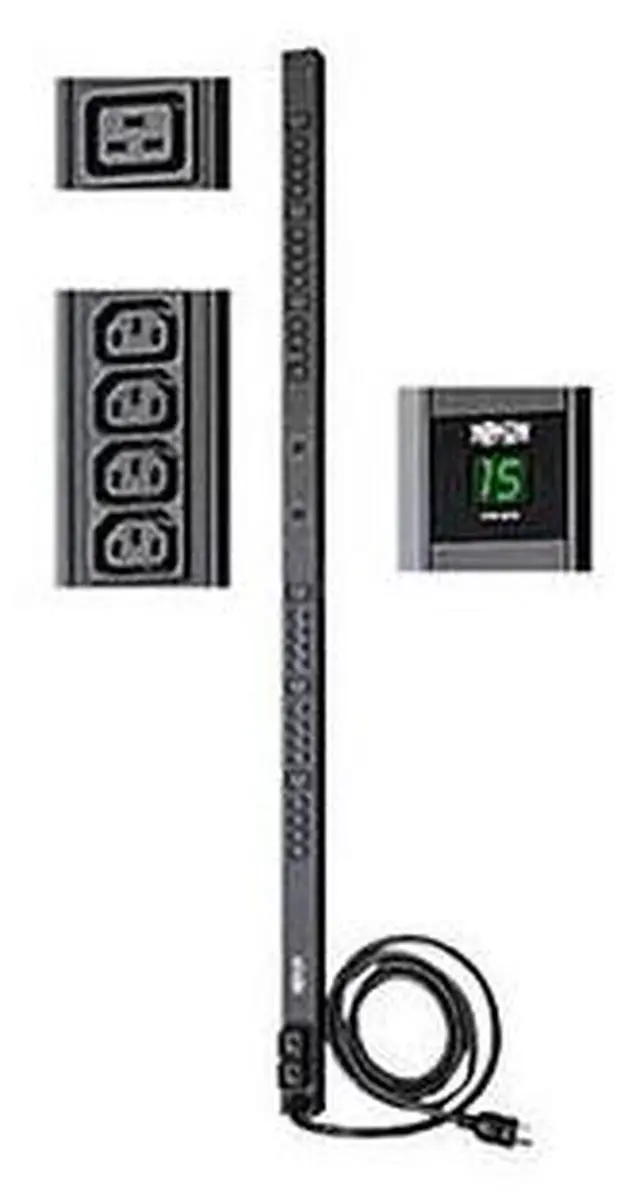

Metered 0U 63.75 in. vertical rack PDU

208/240V 30A maximum capacity

Tooless button-mount installation

Cord retention brackets keep vital equipment plugs connected

Two built-in ammeters display current usage for both 15A breakered load banks

10 ft. input cable with locking L6-30P plug and 30 output receptacles (6 C19, 24 C13)

Main Specifications
Device Type	Power distribution unit - rack-mountable
Dimensions (WxDxH)	2.2 in x 3.7 in x 63.8 in
Height (Rack Units)	0U
Weight	7.9 lbs
Power Device
Circuit Protection	Circuit breaker
Frequency Required	50/60 Hz
Input Connector(s)	1 x power NEMA L6-30
Input Voltage	AC 208/240 V
Max Electric Current	30 A
Output Connector(s)	30 x power IEC 320 EN 60320 C13, power IEC 320 EN 60320 C19
Output Connector(s) Detail(s)	24 x power IEC 320 EN 60320 C13
Output Connectors Details	6 x power IEC 320 EN 60320 C19
Output Voltage	AC 208/240 V ( 50/60 Hz )
Environmental Parameters
Humidity Range Operating	0 - 95%
Max Operating Temperature	104 F
Min Operating Temperature	32 F
Miscellaneous
Cables Included	1 x power cable - 10 ft
Compliant Standard(s)	NOM, UL 60950-1
Rack Mounting Kit	Included

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
