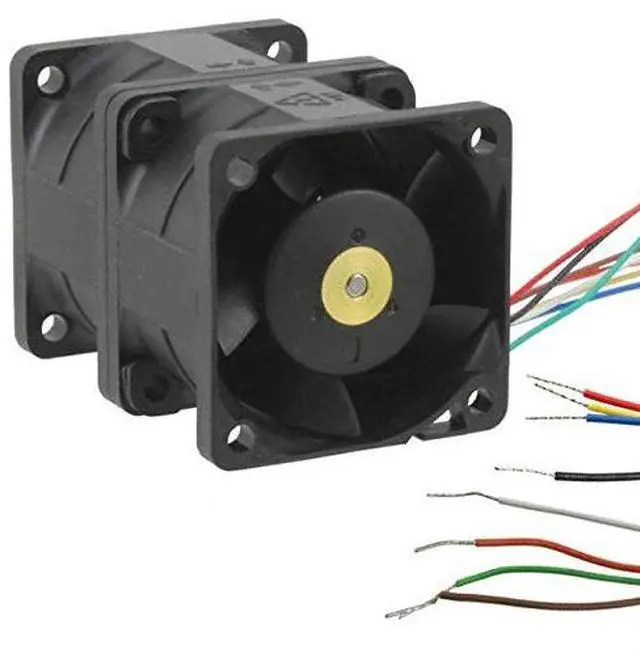

Delta Electronics GFC0412DS-TP01 GFC Series Dual Fan, 40mm x 56mm, 12VDC, 30.5 CFM, Ball Bearing, PWM Control
- DUAL FAN DESIGN: Features two powerful 40mm x 40mm fans in a compact 56mm width housing, with front fan running at 15,300 RPM and rear fan at 11,300 RPM
- ADVANCED FEATURES: Includes PWM control for precise speed adjustment, locked rotor protection, and speed sensor (tachometer) functionality for monitoring
- PERFORMANCE SPECS: Delivers impressive 30.5 CFM airflow with 1.726 in H2O static pressure, operating at 12VDC (4-13.2VDC range) with 1.0A current draw
- DURABILITY: Ball bearing construction ensures reliable operation for up to 70,000 hours at 40°C, with operating temperature range of 14°F to 158°F
- CONSTRUCTION: Plastic frame and blade design weighs 0.199 lb, with 4-wire leads per fan for enhanced control and monitoring capabilities
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
DUAL FAN DESIGN: Features two powerful 40mm x 40mm fans in a compact 56mm width housing, with front fan running at 15,300 RPM and rear fan at 11,300 RPM
ADVANCED FEATURES: Includes PWM control for precise speed adjustment, locked rotor protection, and speed sensor (tachometer) functionality for monitoring
PERFORMANCE SPECS: Delivers impressive 30.5 CFM airflow with 1.726 in H2O static pressure, operating at 12VDC (4-13.2VDC range) with 1.0A current draw
DURABILITY: Ball bearing construction ensures reliable operation for up to 70,000 hours at 40°C, with operating temperature range of 14°F to 158°F
CONSTRUCTION: Plastic frame and blade design weighs 0.199 lb, with 4-wire leads per fan for enhanced control and monitoring capabilities
ADVANCED FEATURES: Includes PWM control for precise speed adjustment, locked rotor protection, and speed sensor (tachometer) functionality for monitoring
PERFORMANCE SPECS: Delivers impressive 30.5 CFM airflow with 1.726 in H2O static pressure, operating at 12VDC (4-13.2VDC range) with 1.0A current draw
DURABILITY: Ball bearing construction ensures reliable operation for up to 70,000 hours at 40°C, with operating temperature range of 14°F to 158°F
CONSTRUCTION: Plastic frame and blade design weighs 0.199 lb, with 4-wire leads per fan for enhanced control and monitoring capabilities
