- JINGCHENGMEI's professional team design products to meet your standard 19-inch equipments according to EIA/ECA-310-E.
- Besides product's quality, reliability and compatibility, we are striving to optimize product structure and packaging to make products safer and easier in transit !

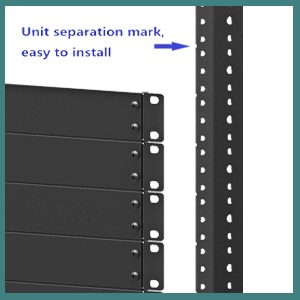

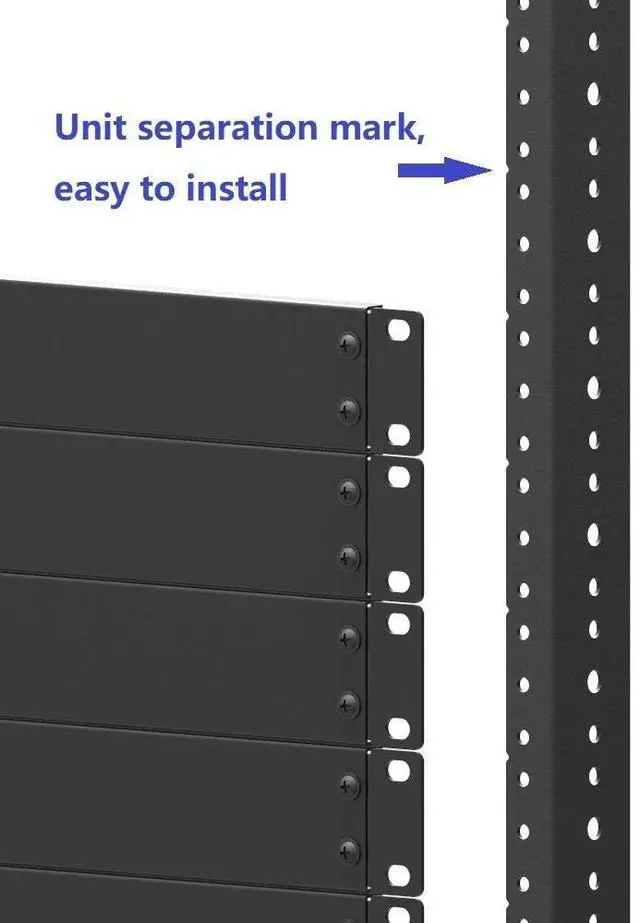

Unit Separation Mark for a Easy Installation
- In Order to Mount the Equipments onto the Rack Rails easily, Unit Separation Marks are Added onto the Rails.

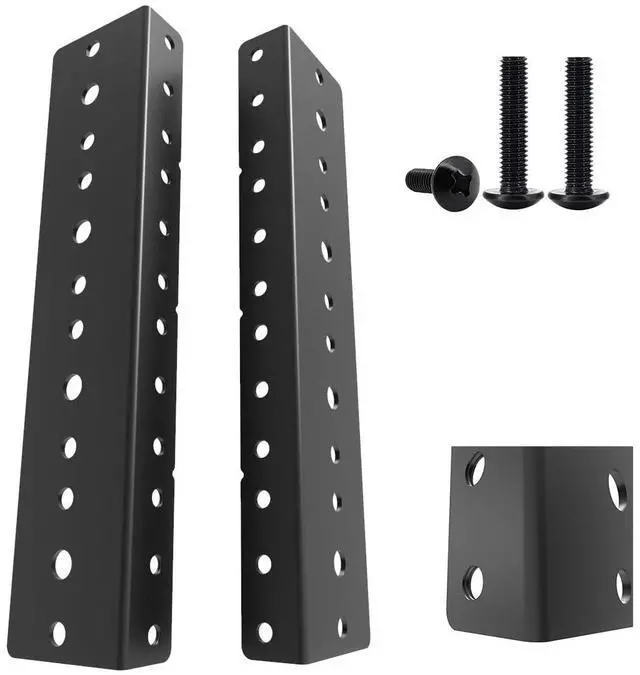

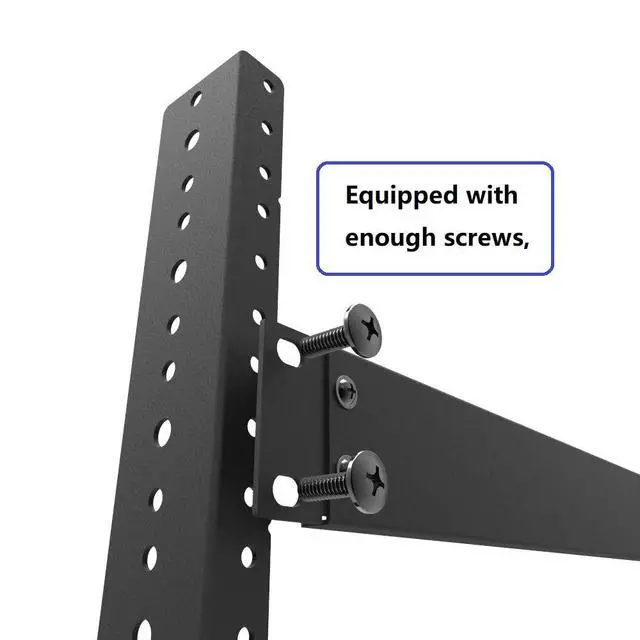

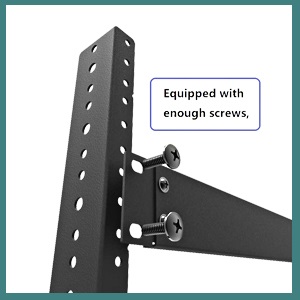

Equipped with Mounting Screws
- Including Enough Screws for Mounting your Equipments onto the Rack Rails.

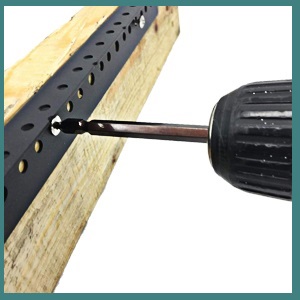

Equipped with Installing Screws
- Including Enough Screws for Installing onto the wooden frame.

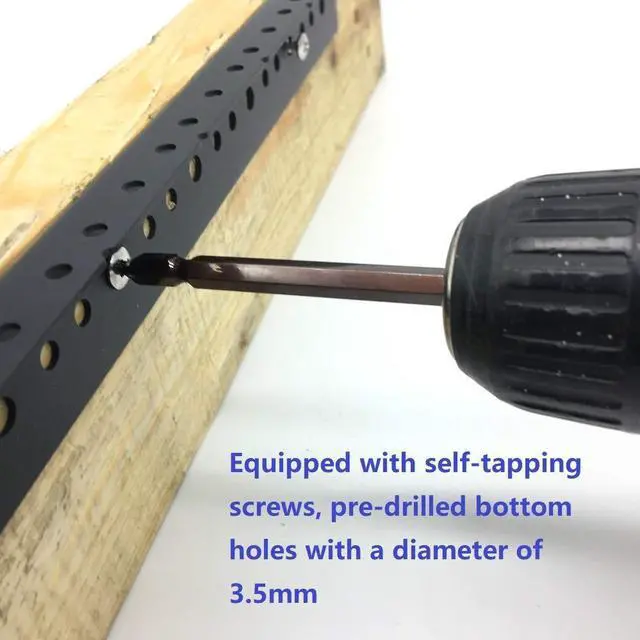

- Tip: Pre-drilling Bottom Holes with a Diameter of 3.5 mm on Wooden Frame Making Installation Easier.
Triangle Tapping Screws for Mounting Equipments onto the Rack Rails

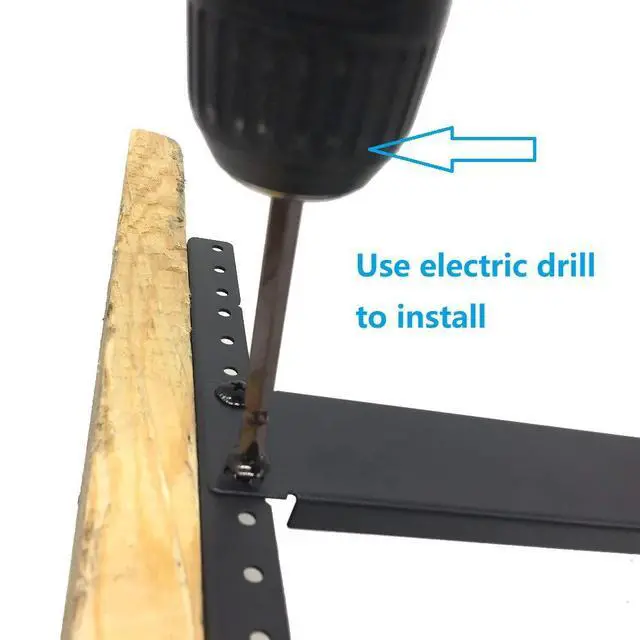

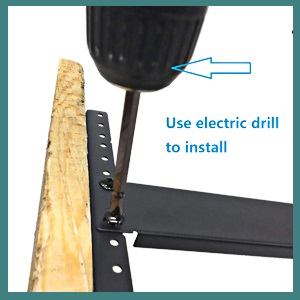

Mounting onto Rack Rails
- In Order to Install your Equipments onto the Rack Rails Firmly, we don't make the thread on the Rack Rails when production.
- No Need to Thread the Rails Specially !
- The Triangle Self-tapping Screws Can Automatically Tap the Internal Thread in One Step While by Electric Screw Driver.
Installation Screws
- The Screws are Characterized by Low Screwing Torque are High Locking Performanace. Your Equipments will be Fixed onto the Rails Firmly.

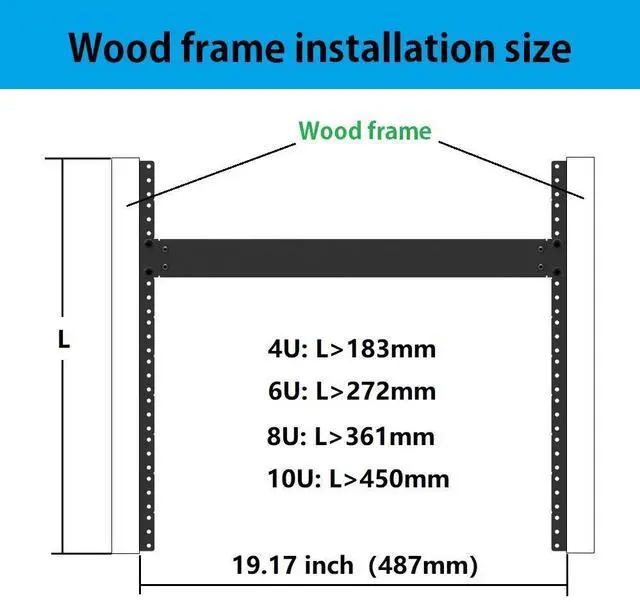

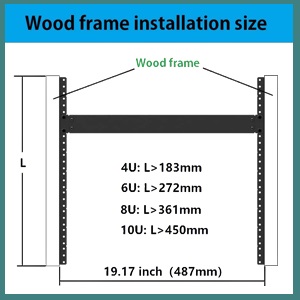

Wooden Frame Installation Size
- 4U Rack Rails: Wooden Frame Needs to be more than 183 mm
- 6U Rack Rails: Wooden Frame Needs to be more than 272 mm
- 8U Rack Rails: Wooden Frame Needs to be more than 361 mm
- 10U Rack Rails: Wooden Frame Needs to be more than 450 mm

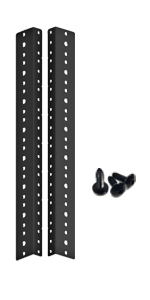

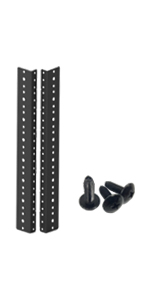

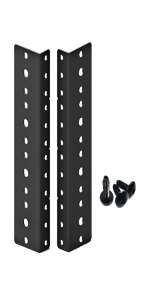

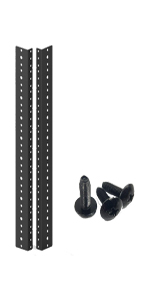

 Jingchengmei 4U Rack Rails Kit with Hardware - 2 Pieces |  Jingchengmei 6U Rack Rails Kit with Hardware - 2 Pieces |  Jingchengmei 8U Rack Rails Kit with Hardware - 2 Pieces |  Jingchengmei 10U Rack Rails Kit with Hardware - 2 Pieces | |
|---|---|---|---|---|
| Customer Reviews | — | — | — | — |
| Price | — | — | — | — |
| U Height | 4U | 6U | 8U | 10U |
| Product Width | 0.67" | 0.67" | 0.67" | 0.67" |
| Product Depth | 1.5" | 1.5" | 1.5" | 1.5" |
| Material | Cold Rolled Steel | Cold Rolled Steel | Cold Rolled Steel | Cold Rolled Steel |
| Screws for Installing | 4 Pcs | 4 Pcs | 4 Pcs | 8 Pcs |
| Screws for Mounting | 16 Pcs | 24 Pcs | 32 Pcs | 48 Pcs |
