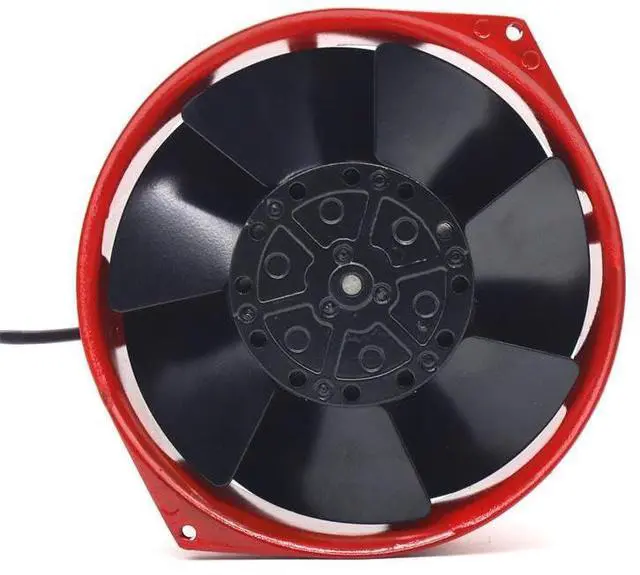

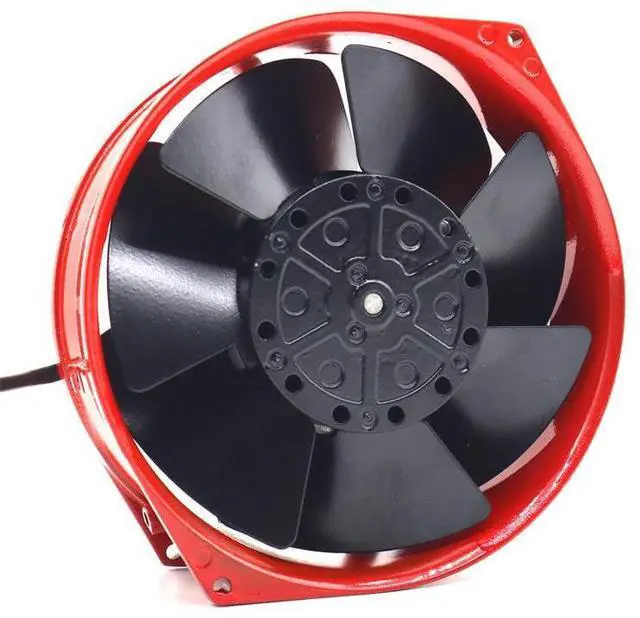

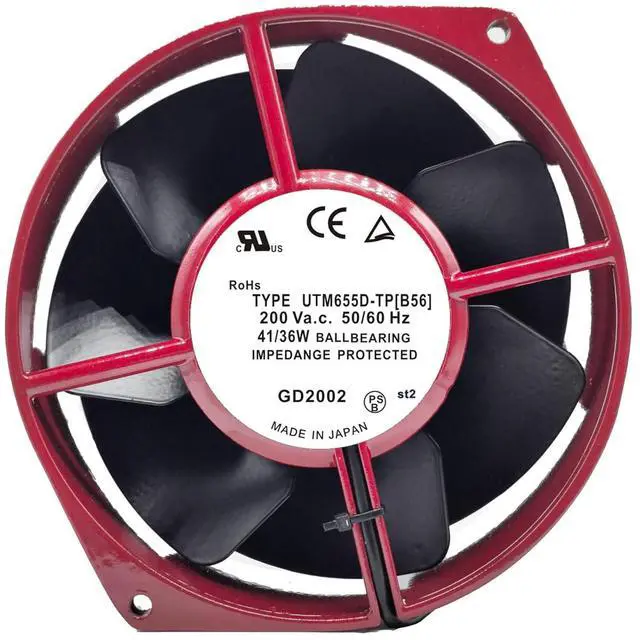

172MM AIXAL Fan UTM655D-TP (B56) AC200V 172 * 150 * 55MM All Metal Cabinet Fan
- Rated voltage: AC200V, input power:41/36W.
- Model Number: UTM655D-TP[B56]
- Appearance Size: 172*150*55mm (frame length * side length * thickness)
- Bearing structure:high precision double ball bearing.Lead Interface:2-wire without terminal interface.
- Scope of application: high-end and reliable heat dissipation applications such as inverters, chassis, power supplies, cabinets, industrial equipment, servers, etc.
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model: UTM655D-TP [B56]
Size: 172*150×55mm
Diagonal screw hole distance 162MM
Voltage: 200Va.c. 50/60Hz
Power: 41/36w
Speed: 2800/3250r/min
Wind pressure: 5.2/6.0m3/ min
Static pressure: 118/78 Pa
Noise: 55/58dB(A)
Net weight: 1.2kg
Material: Full metal frame blade high temperature resistant fan
Size: 172*150×55mm
Diagonal screw hole distance 162MM
Voltage: 200Va.c. 50/60Hz
Power: 41/36w
Speed: 2800/3250r/min
Wind pressure: 5.2/6.0m3/ min
Static pressure: 118/78 Pa
Noise: 55/58dB(A)
Net weight: 1.2kg
Material: Full metal frame blade high temperature resistant fan
