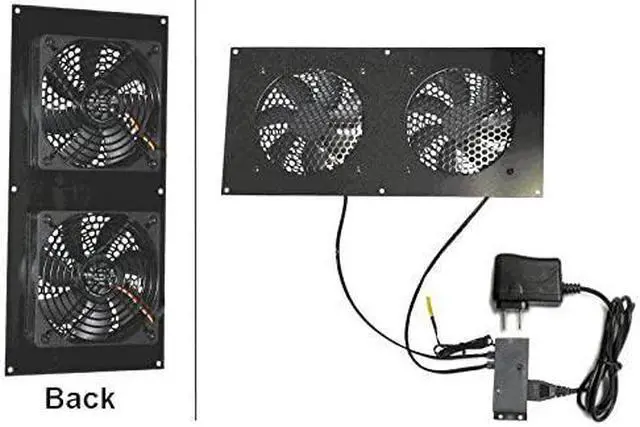

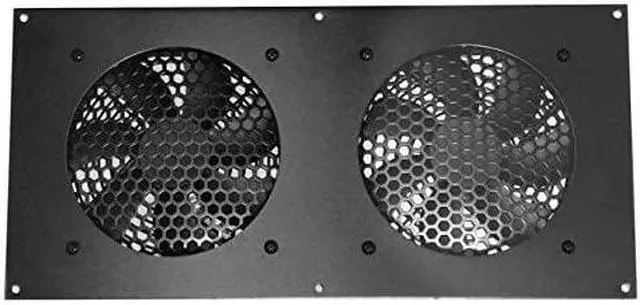

Coolerguys Dual 80mm Preset Thermostat Cabinet Fan Kit Designed for mounting on any side of a cabinet by cutting a rectangular hole. Insert completed cooler assembly in hole and attach to cabinet with appropriate screws. Thermostat controlled system to turn on [at 88° F] and off [at 81° F] only when needed. Total unit has a 0.18A operating draw. We leave our kits un-assembled so that our customers are able to modify them to be either intake or exhaust systems.
Our fans blow air towards the side with the logo: simply screw it into your bracket the direction you want the air to flow.
We normally recommend getting our 120mm systems if space permits due to optimal noise, airflow, and lifespan ratios. Fan upgrades for higher CFM are also available.

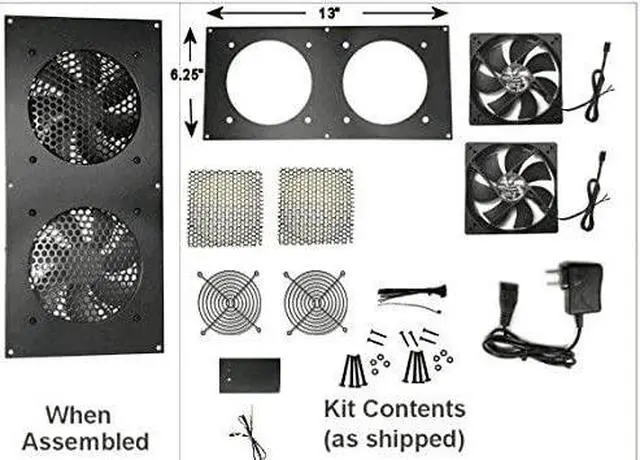

(1) 110-240V AC to 12v DC Power Supply with 4 Pin Molex (500mA) (2) Ultra quiet 120mm Fans: 30" cord, 19 dBA (1) Black Powder Coated Metal Fan bracket (13" x 6.25" x .125") (1) Coolerguys Thermal Controller (2) Black 120mm Honeycomb Mesh Fan Grills (2) Black 120mm Fan Grills (8) Fan nuts and bolts Pack - 4" Nylon Multi-Purpose Tie Black (6) #6 - 1/2" black Cabinet screw This is a kit and basic assembly is required.
Brackets come in Thermal Plastic or Black Powder Coated Steel to satisfy different quality, durability, and appearance requirements.
Powerful fan combinations:
Single/Double 80mm - 20/40 CFM Single/Double 92mm - 30/60 CFM Single/Double/Triple 120mm - 45/90/135 CFM Single 140mm - 68 CFM Fans can be mounted either as intake or exhaust systems.
Assembled Unit Sizes:
Single 80mm: 4.25" x 4.25" x 1.38" Double 80mm: 7.87" x 4.25" x 1.38" Single 92mm: 4.75" x 4.75" x 1.38" Double 92mm: 8.87" x 4.75" x 1.38" Single 120mm: 6.25" x 6.25" x 1.38" Double 120mm: 13" x 6.25" x 1.38" Triple 120mm: 17.75" x 6.5" x 1.38" Single 140mm: 7.25" x 7.25" x 1.38" WHAT IS IN THE BOX: BRACKET MATERIAL AIRFLOW BRACKET CONFIGURATIONS
