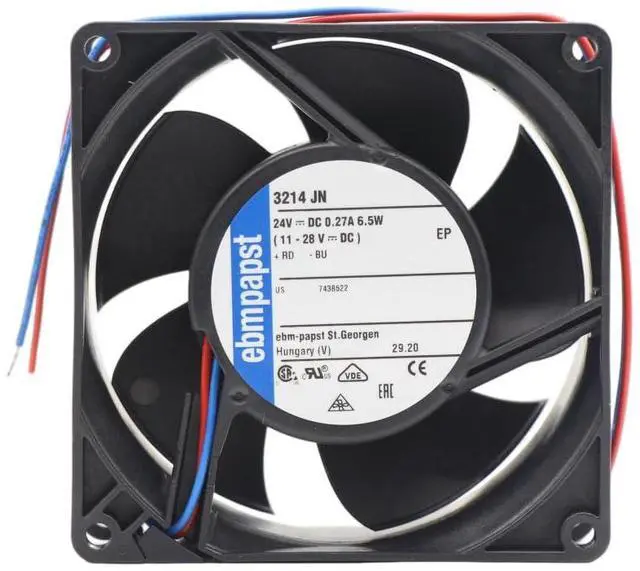

3214JN ebm-papst DC Axial Compact Fan 3214 JN 24V 6000RPM Cooling Fan for Power module, drive module, power electronics, frequency converter, enclosures, military electronics

Item Parameter: Voltage:24.0V DCnominal, 11~28V DCrange | Frequency:Not applicableDC type | Current Draw:0.271Acalculated by P=UI, P=6.5W, U=24V, tolerance not specified | Power Input:6.5Wwide open state, higher at operating point | Speed:6000 RPM | Type:DC axial compact fan | Material:Impeller:Glass-fiber reinforced PA plastic; Housing:Glass-fiber reinforced PBT plastic| Direction of Rotation:Clockwiseviewed toward rotor | Airflow direction:Exhaust over struts | Air flow:130.0m³/h | Sound Data:Sound power level=6.1B; Sound pressure level=51dB(A) | Protection:Reverse polarity protection; Locked rotor protection
Model:3214 JN fan for ebm papst; Type:DC axial compact fan; Temperature Range:-20 to+70 (operating); Bearing system:Ball bearing; Cable:Leads AWG 24, TR 64, stripped and tin-plated; Installation position:Anyshaft orientation, no restriction mentioned
Fan Size:92.0mm × 92.0mm × 38.0mmLength×Width×Depth; Weight:0.240 kg; High-reliability 3214 JN fan built with German precision. A high-airflow DC axial cooling fan engineered for industrial ventilation and heat dissipation.
Applicance:3214 JN fan widely used in industrial electronic enclosures, medium-sized equipment and high-airflow cooling systems; note that power consumption is higher at the operating point than the wide-open state; our store is professional for providing ventilation and heat dissipation products and industry control accessories.
Condition:All items tested and brand-new states before sale, compliant with VDE; CSA; UL. Based on the correct installationfollow DC voltage range & wire connection rulesand use, we can provide 6-month warranty. More details, feel free to contact us.
