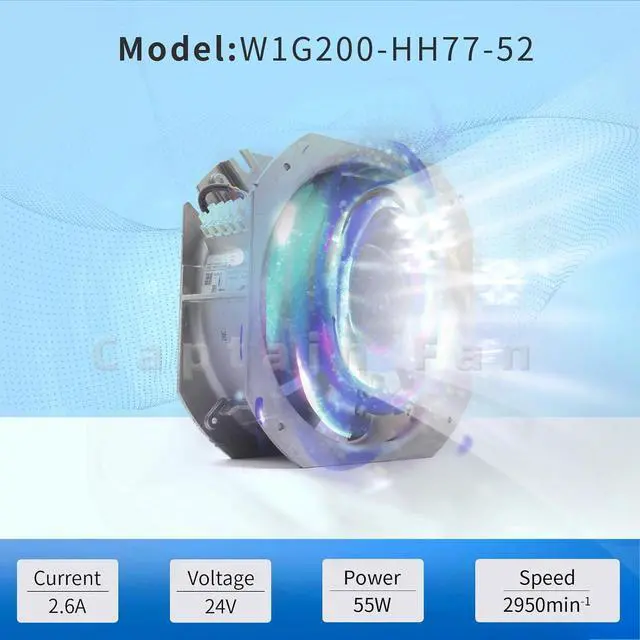

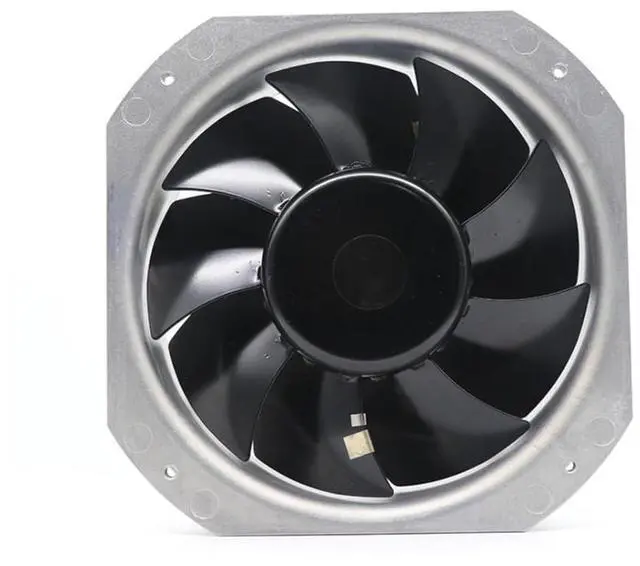

W1G200-HH77-52 Ebm Papst Fan 24VDC 2.6A 55W Axial Cooling Fan
- Model: W1G200-HH77-52; Brand: Ebm Papst; Type: Axial Fan; Motor: M1G074-BF
- Parameter: Nominal voltage: 24VDC; Nominal voltage range: 16...28VDC; Speed: 2950RPM; Power consumption: 55W; Current draw: 2.5A; Max. back pressure: 120Pa; Min. ambient temperature / Max. ambient temperature: -25 / +60
- Other information: Weight: 2.12 kg; Size: 200 mm; Motor size: 74; Rotor surface: Painted black; Blade material: Sheet steel, painted black; Fan housing material: Die-cast aluminum; Number of blades: 9; Degree of protection: IP42; Insulation class: B; Motor bearing: Ball bearing
- Advantage: Captain Fan specializes in the sale of ventilation and heat dissipation products and industry control accessories.
- Other application: All units fully tested. Our products are widely used in industries including ventilation, air conditioning, refrigeration, heating, electrical automation, frequency variator (inverter), rail transit, air purification, new energy, etc.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model: W1G200-HH77-52; Brand: Ebm Papst; Type: Axial Fan; Motor: M1G074-BF
Parameter: Nominal voltage: 24VDC; Nominal voltage range: 16...28VDC; Speed: 2950RPM; Power consumption: 55W; Current draw: 2.5A; Max. back pressure: 120Pa; Min. ambient temperature / Max. ambient temperature: -25 / +60

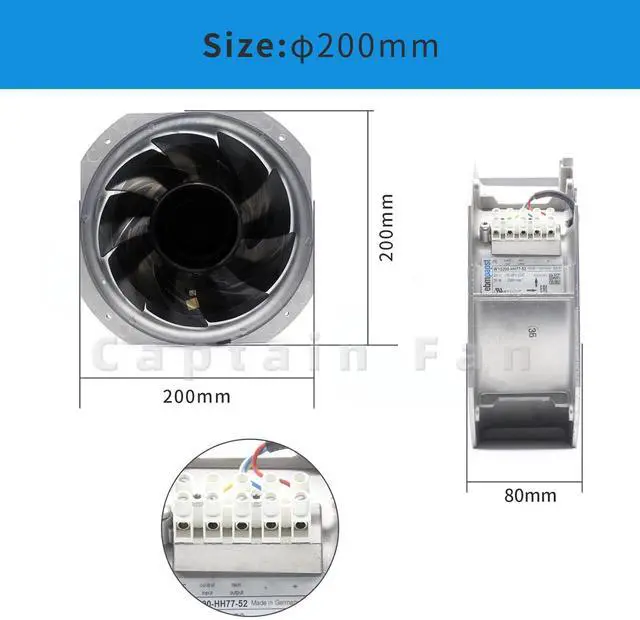

Other information: Weight: 2.12 kg; Size: 200 mm; Motor size: 74; Rotor surface: Painted black; Blade material: Sheet steel, painted black; Fan housing material: Die-cast aluminum; Number of blades: 9; Degree of protection: IP42; Insulation class: B; Motor bearing: Ball bearing
Advantage: Captain Fan specializes in the sale of ventilation and heat dissipation products and industry control accessories.
Other application: All units fully tested. Our products are widely used in industries including ventilation, air conditioning, refrigeration, heating, electrical automation, frequency variator (inverter), rail transit, air purification, new energy, etc.
Parameter: Nominal voltage: 24VDC; Nominal voltage range: 16...28VDC; Speed: 2950RPM; Power consumption: 55W; Current draw: 2.5A; Max. back pressure: 120Pa; Min. ambient temperature / Max. ambient temperature: -25 / +60
Other information: Weight: 2.12 kg; Size: 200 mm; Motor size: 74; Rotor surface: Painted black; Blade material: Sheet steel, painted black; Fan housing material: Die-cast aluminum; Number of blades: 9; Degree of protection: IP42; Insulation class: B; Motor bearing: Ball bearing
Advantage: Captain Fan specializes in the sale of ventilation and heat dissipation products and industry control accessories.
Other application: All units fully tested. Our products are widely used in industries including ventilation, air conditioning, refrigeration, heating, electrical automation, frequency variator (inverter), rail transit, air purification, new energy, etc.
