8214JH3 ebm-papst DC Axial Compact Fan 8214 JH3 DC 24V 12~27.6V DC 26W 12000RPM 190m³/h Glass-Fiber Reinced Material Cooling Fan for Frequency Converter Cooling Fan
- Item Parameter: Voltage:24V DC 12~27.6V DC range | Power Input:26W wide open state values may be higher at operating point | Speed:12000 RPM | Type:DC axial compact fan | Material:Impeller:Glass-fiber reinforced PA plastic ; Housing:Glass-fiber reinforced PBT plastic | Airflow direction:Exhaust over struts | Direction of Rotation:Counterclockwise viewed toward rotor | Air flow:190m³/h | Sound Data:Sound power level=7.3B; Sound pressure level=66dB(A) | Protection:Protection against reverse polarity and blocked rotor
- Model:8214 JH3 fan for ebm papst; Type:DC axial compact fan; Temperature Range:-20 to+70 operating; Bearing system:Ball bearing; Cable:Leads AWG 22 TR 64 stripped and tin-plated
- Fan Size:80mm × 80mm × 38mm Length×Width×Depth; Weight:0.200 kg. A high-performance DC axial compact cooling fan engineered for industrial ventilation and heat dissipation

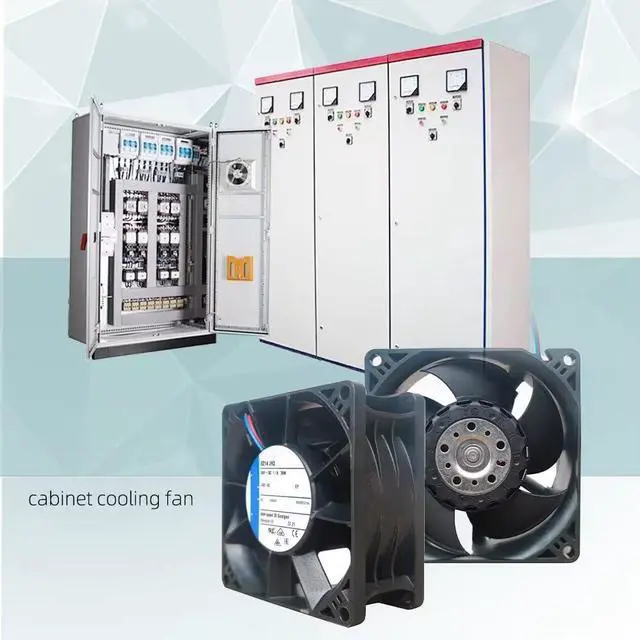

- Applicance:8214 JH3 fan widely used in industrial electronic components and equipment cooling systems; our store are profes
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Parameters |

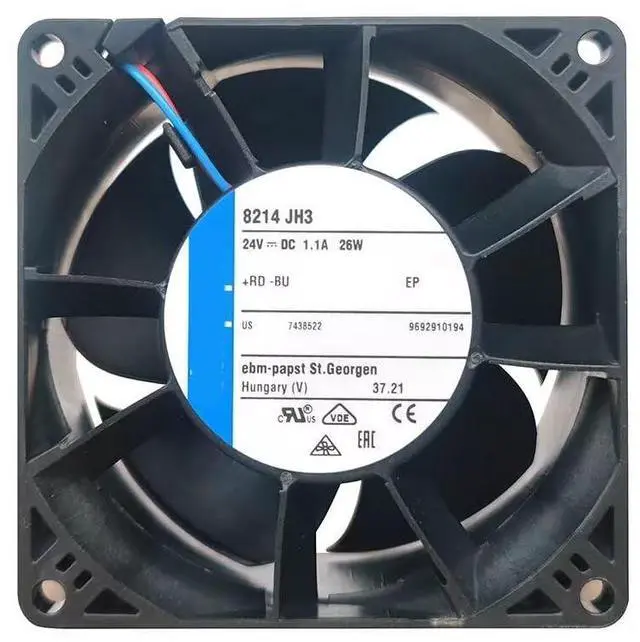

Type 8214 JH3DC axial compact fan
Nominal voltage 24 VDC
Nominal voltage range 12~27.6 VDC
Power consumption 26 W wide open state values may be higher at operating point

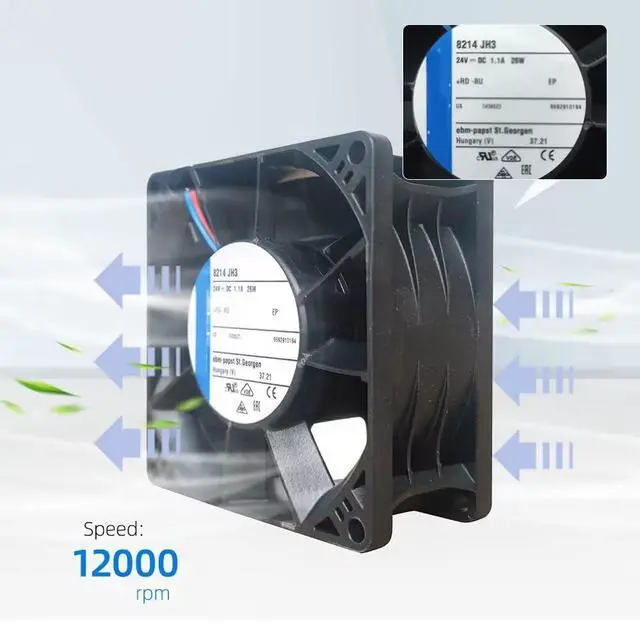

Speed 12000 RPM

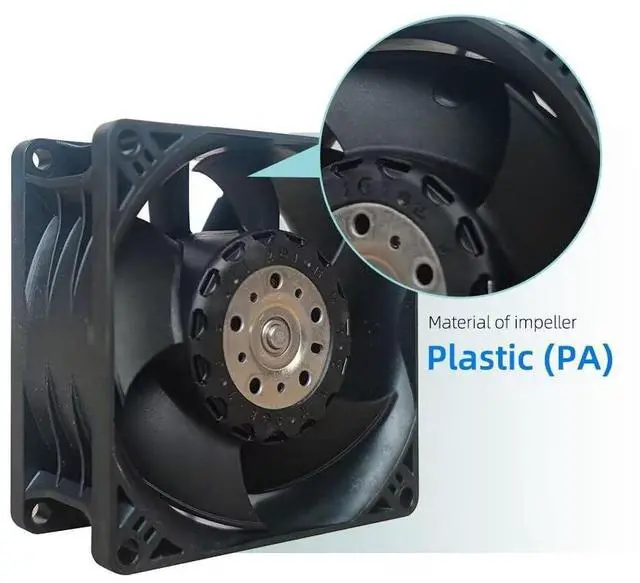

Impeller material Glass-fiber reinforced PA plastic
Housing material Glass-fiber reinforced PBT plastic
Airflow direction Exhaust over struts
Direction of rotation Counterclockwise viewed toward rotor
Air flow 190 m³/h
Sound Data Sound power level=7.3 B; Sound pressure level=66 dB(A)
Bearing system Ball bearing

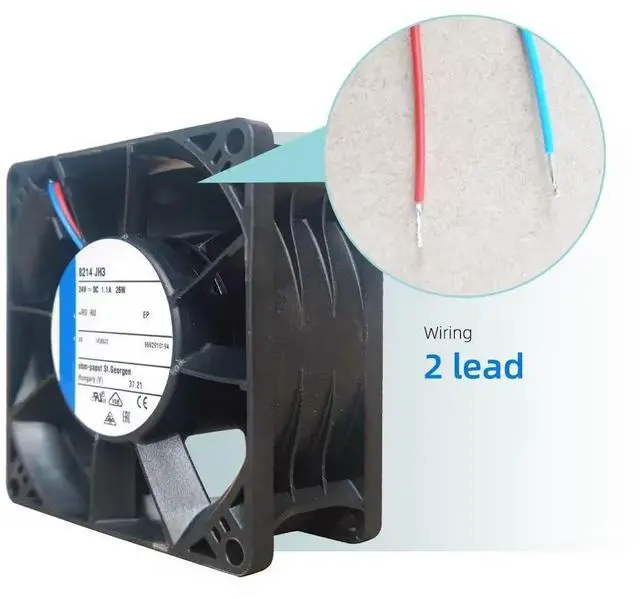

Cable details Leads AWG 22 TR 64 stripped and tin-plated
Motor protection Protection against reverse polarity and blocked rotor
Operating temperature -20 ~ 70
Service life L10 at 40=55000 h; L10 at maximum temperature=27500 h
Optional custom design Speed signal
Weight 0.200 kg

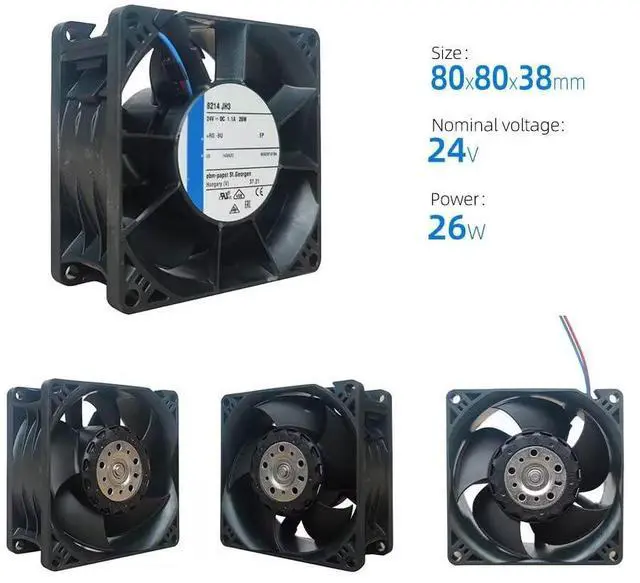

Dimensions 80mm × 80mm × 38mm
Type 8214 JH3DC axial compact fan
Nominal voltage 24 VDC
Nominal voltage range 12~27.6 VDC
Power consumption 26 W wide open state values may be higher at operating point
Speed 12000 RPM
Impeller material Glass-fiber reinforced PA plastic
Housing material Glass-fiber reinforced PBT plastic
Airflow direction Exhaust over struts
Direction of rotation Counterclockwise viewed toward rotor
Air flow 190 m³/h
Sound Data Sound power level=7.3 B; Sound pressure level=66 dB(A)
Bearing system Ball bearing
Cable details Leads AWG 22 TR 64 stripped and tin-plated
Motor protection Protection against reverse polarity and blocked rotor
Operating temperature -20 ~ 70
Service life L10 at 40=55000 h; L10 at maximum temperature=27500 h
Optional custom design Speed signal
Weight 0.200 kg
Dimensions 80mm × 80mm × 38mm
