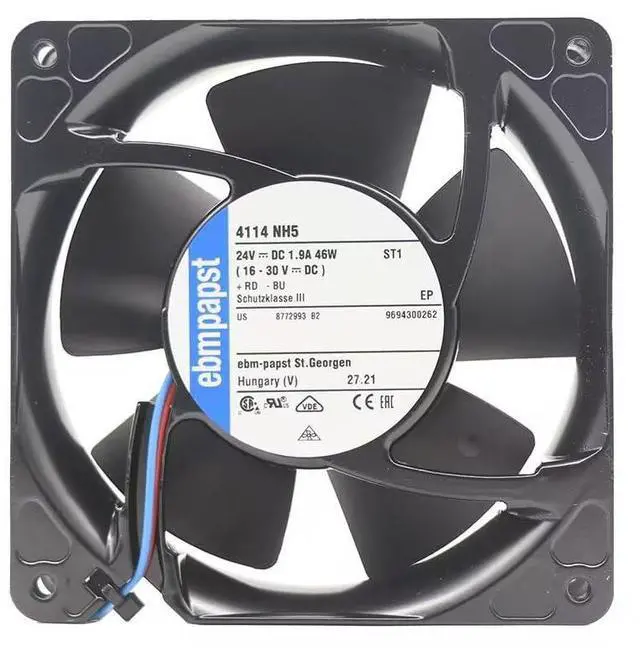

4114NH5 ebm-papst DC Axial Compact Fan 4114 NH5 DC 24V16~30V DC45W 1.875A 7500RPM 390m³/h Die-Cast Aluminum Housing Cooling Fan for Rack Cooling

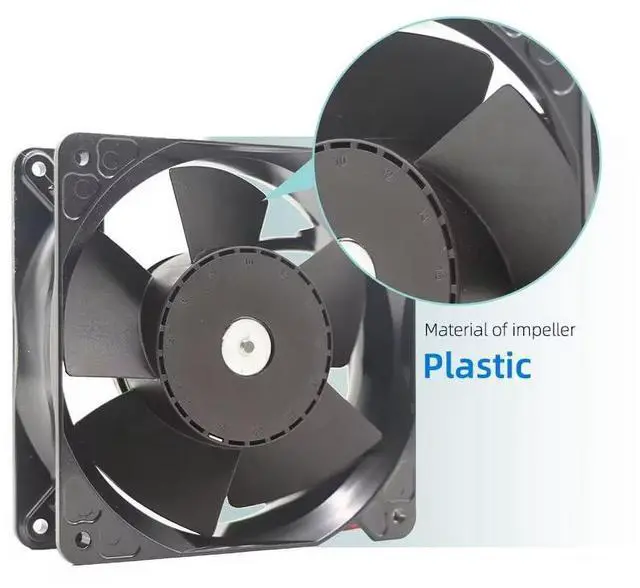

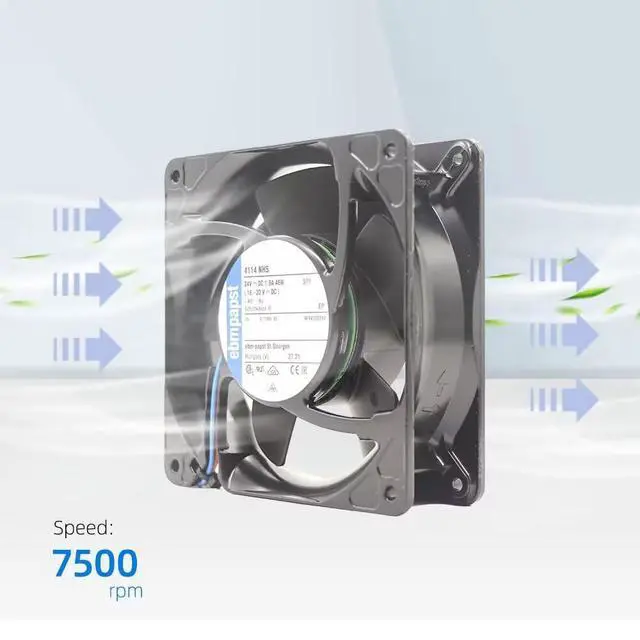

Item Parameter: Voltage:24.0V DCnominal, 16~30V DCrange | Frequency:Not applicableDC type | Power Input:45Wwide open state, higher at operating point | Speed:7500 RPM | Type:DC axial compact fan | Material:Housing:Die-cast aluminum; Impeller:Glass-fiber reinforced PA plastic| Direction of Rotation:Clockwiseviewed toward rotor | Airflow direction:Intake over struts | Air flow:390.0m³/h | Sound Data:Sound power level=7.6B; Sound pressure level=70dB(A) | Protection:Reverse polarity protection; Locked rotor protection
Model:4114 NH5 fan for ebm papst; Type:DC axial compact fan; Temperature Range:-20 to+65 (operating); Bearing system:Ball bearing; Cable:Leads AWG 22, UL 1007, TR 64, stripped and tin-plated; Installation position:Anyshaft orientation, no restriction mentioned

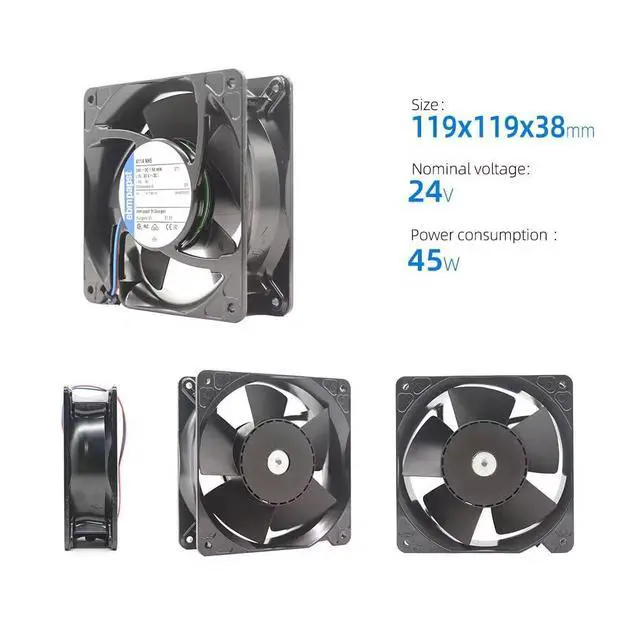

Fan Size:119.0mm × 119.0mm × 38.0mmLength×Width×Depth; Weight:0.390 kg; High-reliability 4114 NH5 fan built with German precision. A high-airflow DC axial cooling fan engineered for industrial ventilation and heat dissipation.

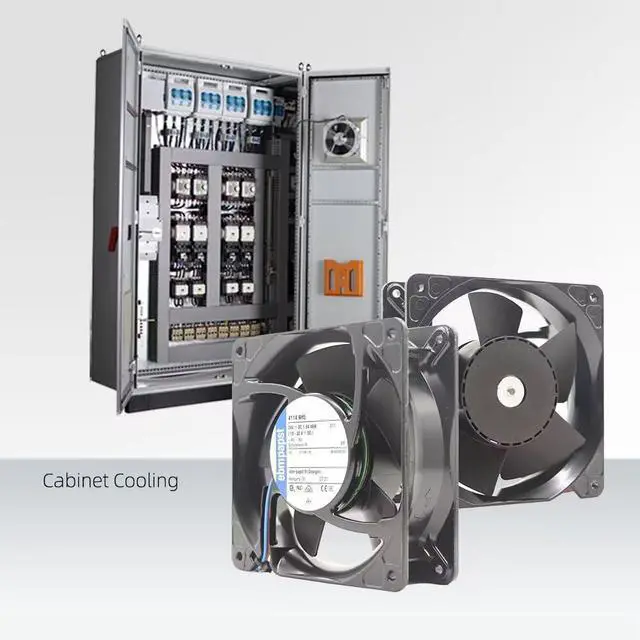

Applicance:4114 NH5 fan widely used in industrial electronic enclosures, medium-to-large-scale equipment and high-airflow cooling systemsnote: power consumption is higher at operating point than wide-open state; our store is professional for providing ventilation and heat dissipation products and industry control accessories. Optional custom design: Speed signal.

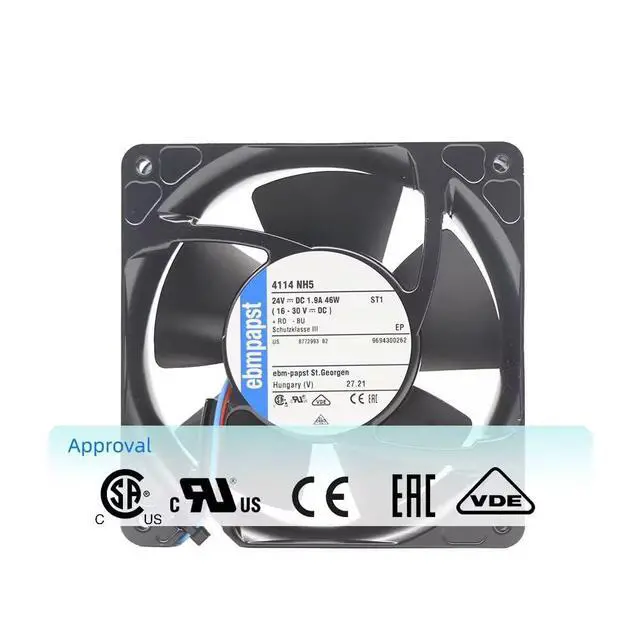

Condition:All items tested and brand-new states before sale, compliant with VDE; CSA; UL. Based on the correct installationfollow DC voltage range & wire connection rulesand use, we can provide 6-month warranty. More details, feel free to contact us.
