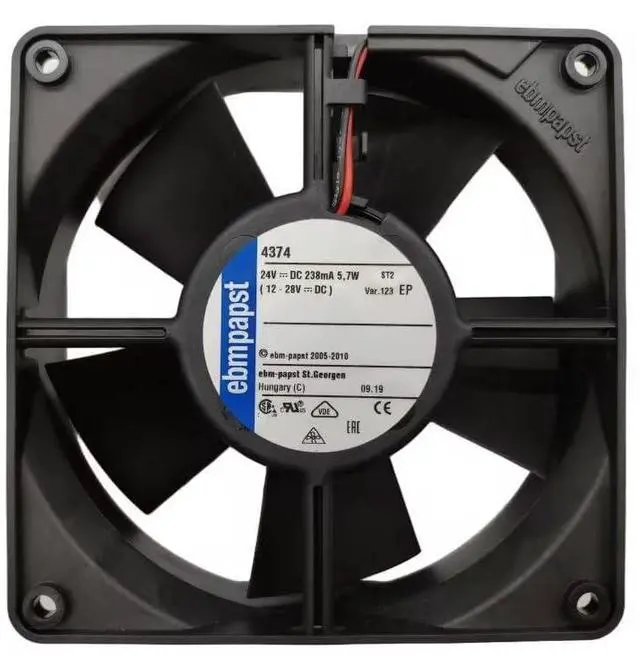

4374-123 ebm-papst DC Axial Fan4374123 DC 12-28V 24V Nom 1.2-8W 100-286mA 1720-3300RPM 180m³/h 90Pa Ball Bearing Cooling Fan for Electrical Cabinet Cooling electrical cinet cooling

Item Parameter: Voltage:12~28V DCnominal:24.0V DC | Current Draw:100mA±17.5%/238mA±12.5%/286mA±15.0%p=0; Starting current:930mA; Locked rotor current930mAat UN | Power Input:1.2W±17.5%/5.7W±12.5%/8W±15.0%p=0 | Speed:1720±12.5%/3000±7.5%/3300±10.0% RPMp=0 | Type:DC axial fan | Material:Housing:Plastic; Impeller:Plastic| Direction of Rotation:Clockwiseviewed toward rotor
Model:9294305123VWC0119XUJAZ/4374-123fan for ebm papst; Type:DC axial fan; Temperature Range:-20~75 (operating); -40~80 (storage); Bearing system:Ball bearing; Connection:PlugLead wire length/Plug/Contact:See drawing; Installation torque:Wire outlet corner=25Ncm, Remaining corners=20Ncm; Screw size:ISO 4762 - M4degreased, without additional brace/washer; Installation position:Anyshaft orientation; Pollution degree:1DIN EN 60664-1, dry non-conductive pollution
Fan Size:119.0mm (Width) × 119.0mm (Height) × 32.0mm (Depth); Weight:0.230 kg; High-reliability 9294305123 fan built with German precision, measured via double chamber intake rigDIN EN ISO 5801. A high-airflow DC axial cooling fan with ball bearing, engineered for industrial ventilation and heat dissipation.
Applicance:9294305123 fan widely used in sheltered rooms with controlled temperature and humiditydirect water exposure avoided, industrial electronic enclosures and high-airflow cooling systems; compliant with constant humid heatDIN EN 60068-2-78,14 days; our store is professional for providing ventilation and heat dissipation products and industry control accessories.
Condition:All items tested and brand-new before sale, compliant with EACEurasian Conformity, UL507Electric Fans E38324, VDEEN 60950, CSAC22.2 No.113. Based on correct installationfollow plug connection rules & voltage limitsand useavoid water exposure, we provide 6-month warranty. More details, feel free to contact us.
