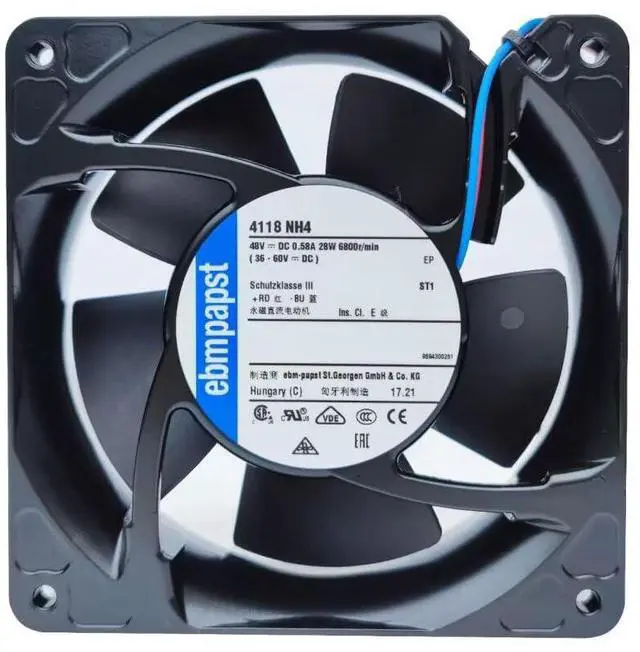

4118NH4 ebm-papst DC Axial Compact Fan 4118 NH4 DC 48V36~60V DC28W 0.583A 6800RPM 355m³/h Die-Cast Aluminum Housing Cooling Fan

Item Parameter: Voltage:48.0V DCnominal, 36~60V DCrange | Frequency:Not applicableDC type | Power Input:28Wwide open state, higher at operating point | Speed:6800 RPM | Type:DC axial compact fan | Material:Housing:Die-cast aluminum; Impeller:Glass-fiber reinforced PA plastic | Direction of Rotation:Clockwiseviewed toward rotor | Airflow direction:Intake over struts | Air flow:355.0m³/h | Sound Data:Sound power level=7.4B; Sound pressure level=67dB(A) | Protection:Reverse polarity protection; Locked rotor protection
Model:4118 NH4 fan for ebm papst; Type:DC axial compact fan; Temperature Range:-20 to+65 (operating); Bearing system:Ball bearing; Cable:Leads AWG 22, UL 1007, TR 64, stripped and tin-plated; Installation position:Anyshaft orientation, no restriction mentioned
Fan Size:119.0mm × 119.0mm × 38.0mmLength×Width×Depth; Weight:0.390 kg; High-reliability 4118 NH4 fan built with German precision. A medium-high airflow DC axial cooling fan engineered for industrial ventilation and heat dissipation.
Applicance:4118 NH4 fan widely used in industrial electronic enclosures, medium-scale equipment and cooling systems requiring higher nominal voltagenote: power consumption is higher at operating point than wide-open state; our store is professional for providing ventilation and heat dissipation products and industry control accessories. Optional custom design: Speed signal.
Condition:All items tested and brand-new states before sale. Based on the correct installationfollow DC voltage range & wire connection rulesand use, we can provide 6-month warranty. More details, feel free to contact us.
