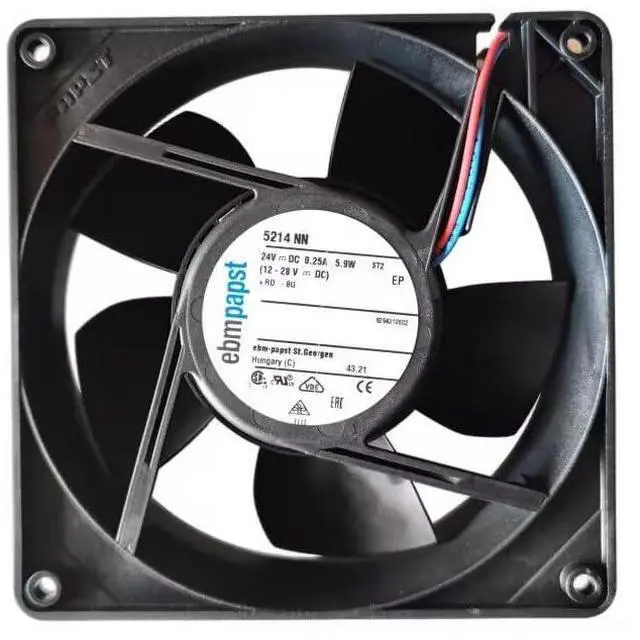

5214NN ebm-papst DC Axial Fan 5214 NN DC 12-28V 24V Nom 1.4-8.2W 113-292mA 1750-3520RPM 216m³/h 107Pa Ball Bearing Cooling Fan for Network power supply

Item Parameter: Voltage:12~28V DCnominal:24.0V DC | Current Draw:113mA±17.5%/245mA±12.5%/292mA±15%p=0; Starting current:<1450mA; Locked rotor current1450mAat UN | Power Input:1.4W±17.5%/5.9W±12.5%/8.2W±15%p=0 | Speed:1750±12.5%/3150±7.5%/3520±10% RPMp=0 | Type:DC axial fan | Material:Housing:Plastic; Impeller:Plastic | Direction of Rotation:Counterclockwiseviewed toward rotor
Model:9294310602VWC0127YUJBS/5214 NNfan for ebm papst; Type:DC axial fan; Temperature Range:-20~75 (operating); -40~80 (storage); Bearing system:Ball bearing; Connection:310mm±10.0mm AWG22 wires1-red:+UB, 2-blue:-GND, insulation diameter=1.70mm; Installation torque:Wire outlet corner=10Ncm, Remaining corners=60Ncm; Screw size:ISO 4762 - M4degreased, no additional brace/washer; Installation position:Anyshaft orientation; Pollution degree:1DIN EN 60664-1, dry non-conductive pollution
Fan Size:127.0mm (Width) × 127.0mm (Height) × 38.0mm (Depth); Weight:0.315 kg; High-reliability 9294310602 fan built with German precision, measured via double chamber intake rigDIN EN ISO 5801. A high-airflow DC axial cooling fan with ball bearing, engineered for industrial ventilation and heat dissipation.
Applicance:9294310602 fan widely used in sheltered rooms with controlled temperature and humiditydirect water exposure avoided, industrial electronic enclosures and high-airflow cooling systems; compliant with constant humid heatDIN EN 60068-2-78,14 daysand EMC Class B standards; our store is professional for providing ventilation and heat dissipation products and industry control accessories.
Condition:All items tested and brand-new before sale, compliant with CEEC Declaration of Conformity, EACEurasian Conformity, UL507Electric Fans E38324, VDEEN 60950, CSAC22.2 No.113. Based on correct installationfollow DC voltage range & wire connection rulesand useavoid water exposure, we provide 6-month warranty. More details, feel free to contact us.
