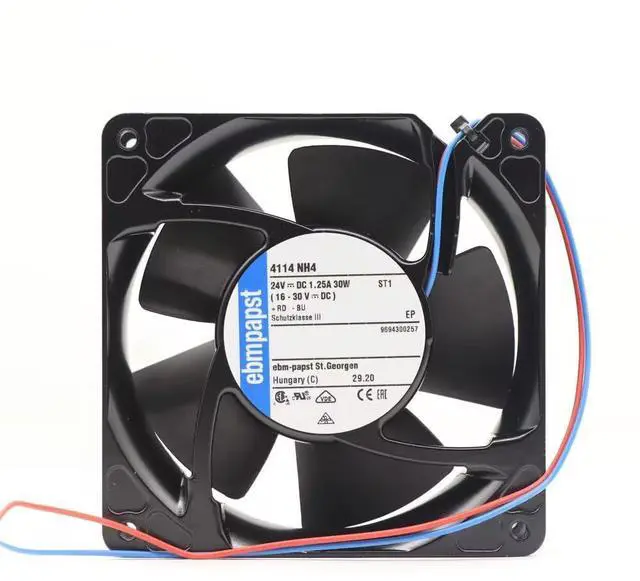

Axial Fan, Square, 24VDC, 209 cfm, 119mm W.

Item Parameter: Voltage:24.0V DCnominal16~30V DCrange | Power Input:30Wwide open state, higher at operating point | Speed:6800 RPM | Type:DC axial compact fan | Material:Housing:Die-cast aluminum; Impeller:Glass-fiber reinforced PA plastic | Direction of Rotation:Clockwiseviewed toward rotor | Airflow direction:Intake over struts | Air flow:355.0m³/h | Sound Data:Sound power level=7.4B; Sound pressure level=67dB(A) | Protection:Protection against reverse polarity and blocked rotor
Model:4114 NH4 fan for ebm papst; Type:DC axial compact fan; Temperature Range:-20 to+65 (operating); Bearing system:Ball bearing; Cable:Leads AWG 22, UL 1007, TR 64, stripped and tin-plated
Fan Size:119.0mm × 119.0mm × 38.0mmLength×Width×Depth; Weight:0.390 kg; High-reliability 4114 NH4 fan built with German precision. A DC axial compact cooling fan engineered for industrial ventilation and heat dissipation.
Applicance:4114 NH4 fan widely used in industrial electronic enclosures and medium-to-large-scale equipment cooling systemsnote: power consumption is higher at operating point than wide-open state; our store is professional for providing ventilation and heat dissipation products and industry control accessories. Optional custom design: Speed signal
Condition:All items tested and brand-new states before sale; CCC:Not applicable. Based on the correct installationfollow DC voltage range & wire connection rulesand use, we can provide 6-month warranty. More details, feel free to contact us.
