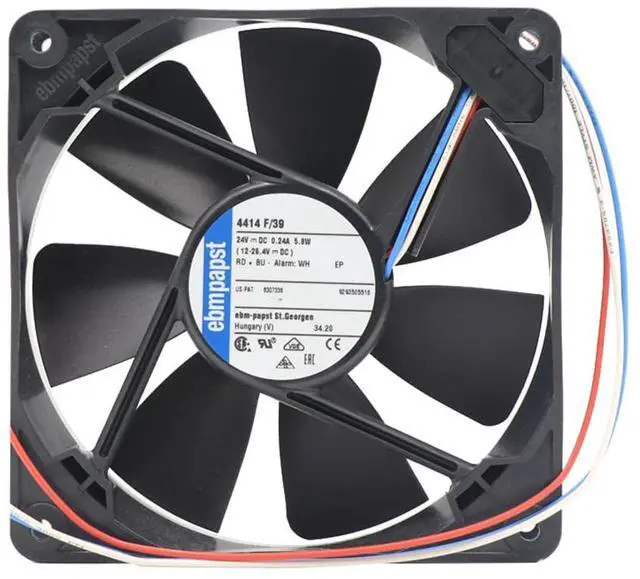

4414F/39 ebm-papst DC Axial Fan 4414 F/39 DC 12-28VNominal 24VAlarm-Equipped Ball Bearing Cooling Fan for Power module cooling

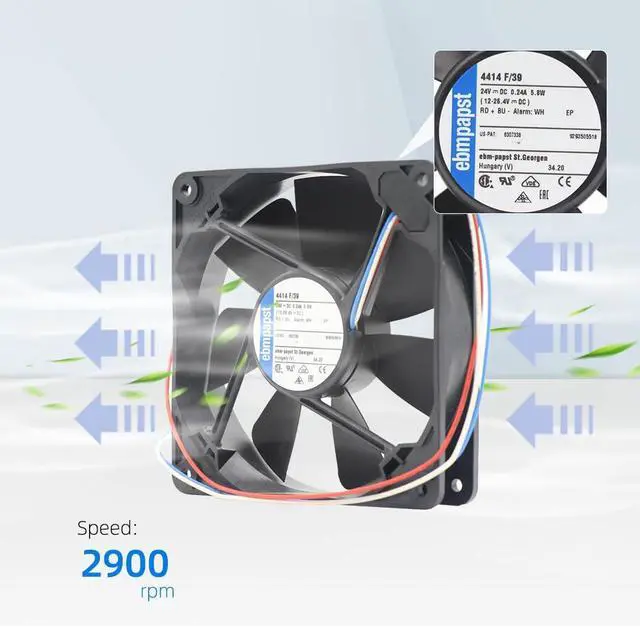

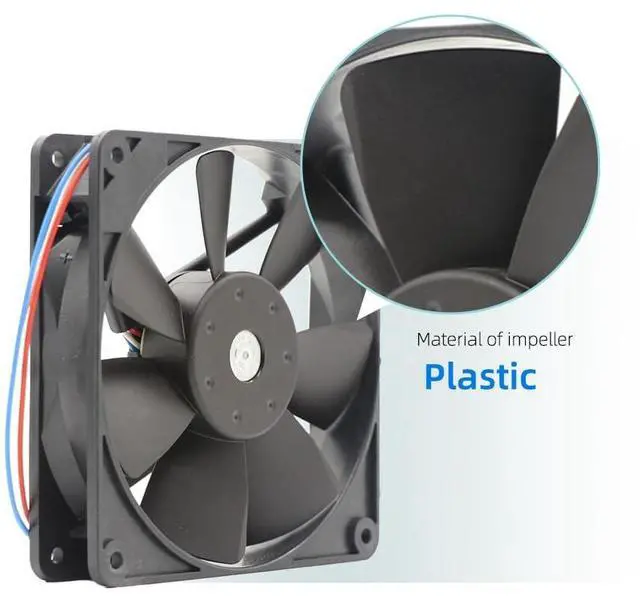

Item Parameter: Voltage:12~28V DCNominal:24V DC | Frequency:Not applicableDC type | Current Draw:Not specified in PDFp=0; Starting current:680mA; Locked rotor current500mAat UN | Power Input:Not specified in PDFp=0 | Speed:1700±12.5%/2900±7.5%/3150±10.0% RPMp=0 | Type:DC axial fanwith Alarm function | Material:Housing:Plastic; Impeller:Plastic | Direction of Rotation:Counterclockwiseviewed toward rotor | Airflow direction:Air outlet over struts | Max. free-air flow:168m³/h2900RPM, p=0; Max. static pressure:61Pa2900RPM, p=max.

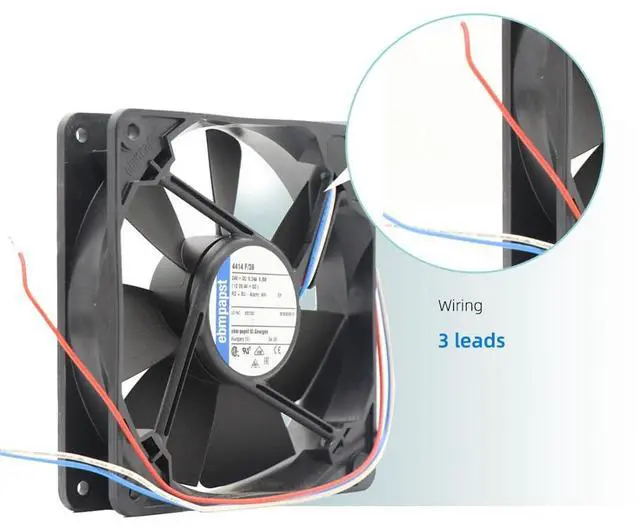

Model:9293505518VWC0119FUGAS/4414 F/39fan for ebm papst; Type:DC axial fanwith Alarm; Temperature Range:-20~60 (operating); -40~80 (storage); Bearing system:Ball bearing; Connection:310mm±10.0mm AWG24 wires1-red:+UB, 2-blue:-GND, 3-white:Alarm, insulation diameter=1.55mm; Installation torque:Wire outlet corner=40Ncm, Remaining corners=10Ncm; Screw size:ISO 4762 - M4degreased, no additional brace/washer; Installation position:Anyshaft orientation; Pollution degree:1DIN EN 60664-1, dry non-conductive pollution

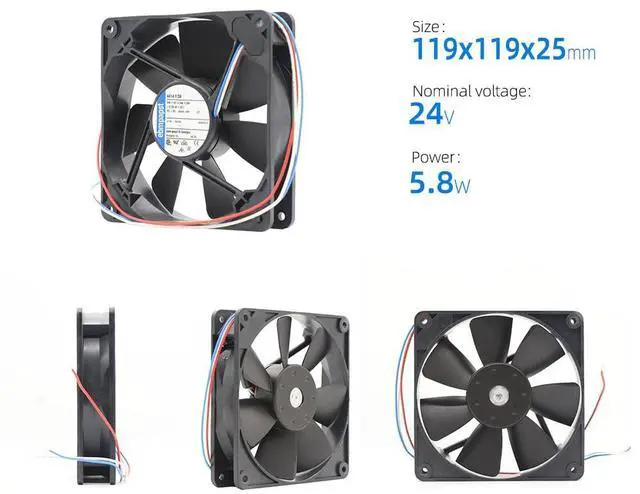

Fan Size:119.0mm (Width) × 119.0mm (Height) × 25.4mm (Depth); Weight:0.170 kg; High-reliability 9293505518 fan built with German precision, measured via double chamber intake rigDIN EN ISO 5801. A DC axial cooling fan with ball bearing & Alarm function, engineered for industrial ventilation and heat dissipation.

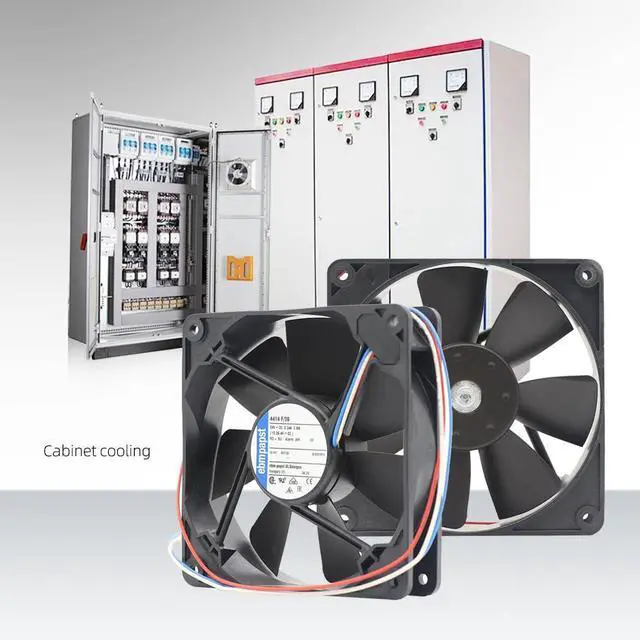

Applicance:9293505518 fan widely used in sheltered rooms with controlled temperature and humiditydirect water exposure avoided, industrial electronic enclosures and high-airflow cooling systems; compliant with EMC Class BDIN EN 55032, suitable for residential/industrial areas; our store is professional for providing ventilation and heat dissipation products and industry control accessories.
Condition:All items tested and brand-new before sale, compliant with EACEurasian Conformity, UL507Electric Fans E38324, VDEEN 60950, CSAC22.2 No.113. Based on correct installationfollow Alarm wiring rules & voltage limitsand useavoid water exposure, we provide 6-month warranty. More details, feel free to contact us.
