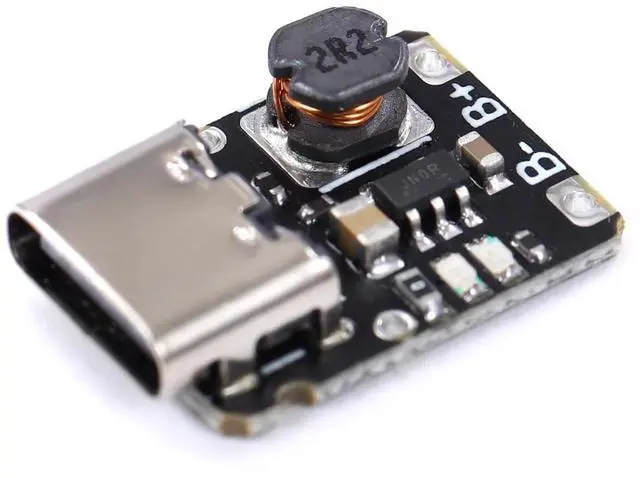

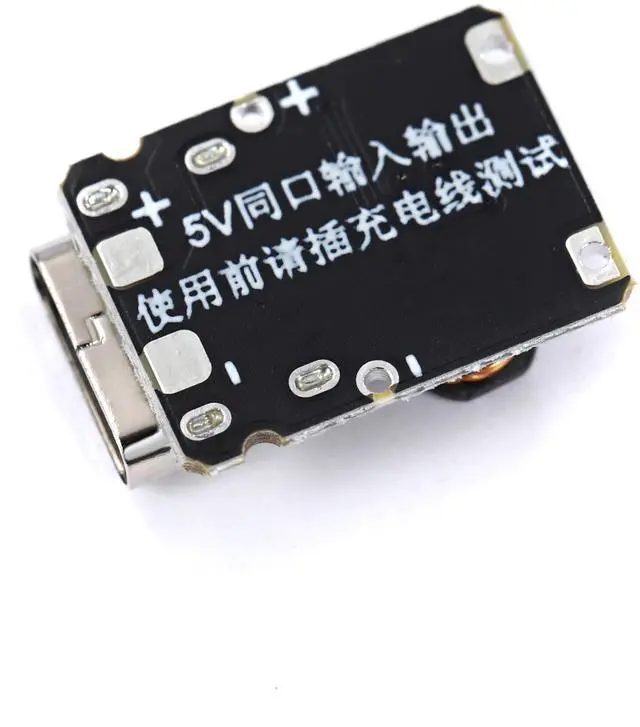

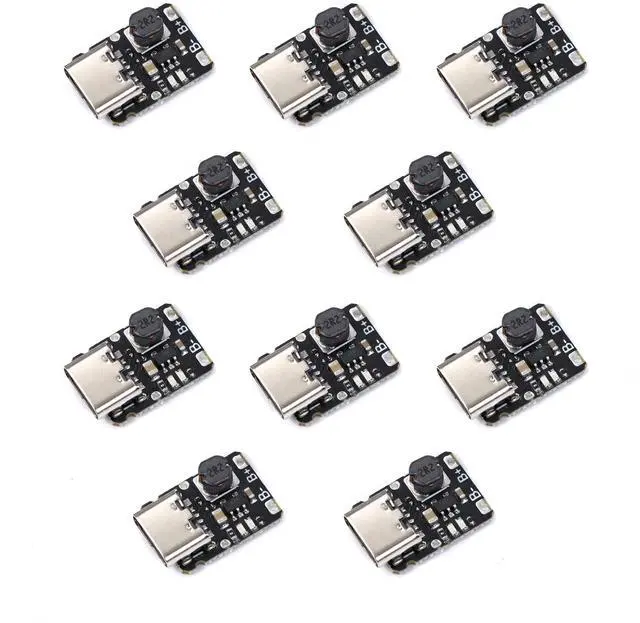

Type-c 5V Charge and Discharge Integrated Module 1A 18650 Li-ion Battery Charge Boost Power Board Protection Over TP4056 10pcs
- Limit large 5V1.2A charging current, 5V output suitable for small current, automatic switching / normally open output input output display indicator, 3.7V Rieden charging full 4.2V / suitable for 18650 polymer and so on.
- Smaller than 18650 battery cross section charging module, also with discharge, is an alternative to 4056 and other linear charging module. Comparison of 4056/4057 and other linear charging technology. This module charging temperature control can be said to throw off ten streets. The focus is only 16 * 12 * 4.4mm in length, width and height. using Type-c port, can be input, can also be output.
- 4.5-5.5V power supply, applicable to a single section of electricity (parallel connection is not limited), limited to 1.2A, according to the requirements of the use of the current can be stabilized 1A.
- Applicable to all types of 3.7V carp batteries, including 18650 and collection of batteries with overcharge and overdischarge protection, overdischarge protection 29V, charging cutoff voltage 4.2V
- No external input voltage automatically switch to output mode, support small current, output 5V output support about 450ma. If output 1A, the voltage will be around 4.9V-4.5V according to the power condition.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Automatic switching input and output, external voltage input when charging the battery, otherwise discharging charging green light flashes, full of green light long light, discharging no load standby when the light does not light, with a load discharging blue light. Standby power consumption of about 0.8mA.
