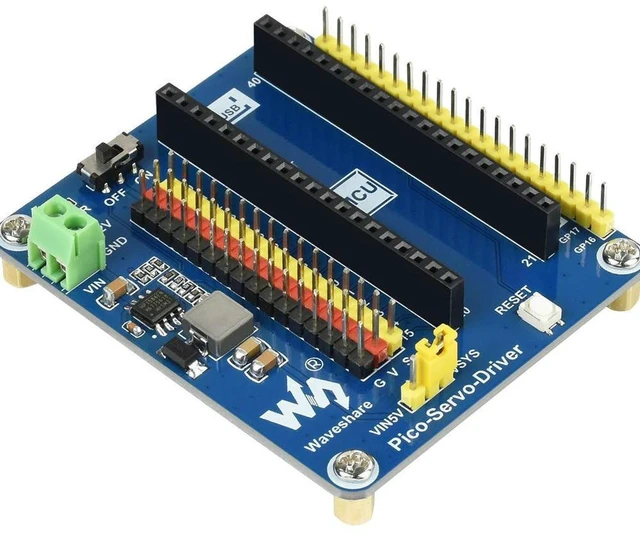

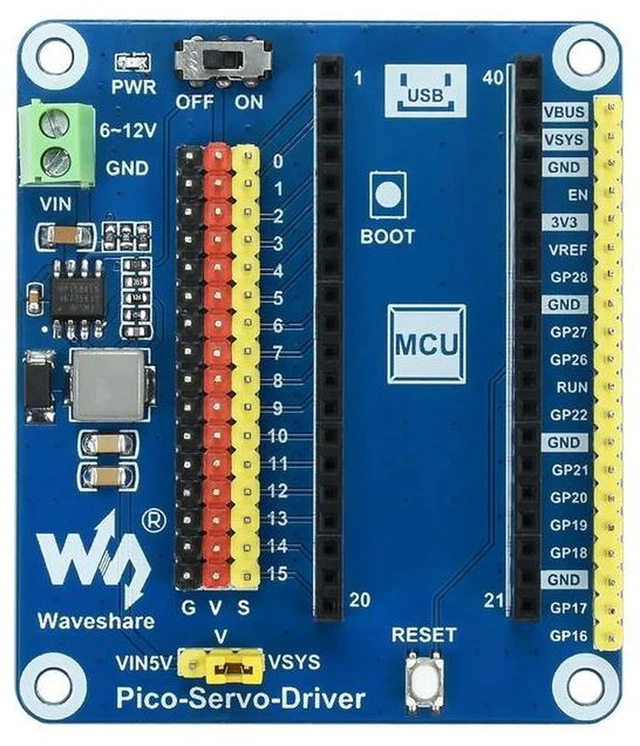

16-Channel Servo Driver Module 16-Bit PWM Controller Expansion Board with Onboard 5V 3A Regulator and GPIO Control Servo Motor Control Board for Raspberry Pi Pico Robotics Projects
- Provides 16 independent servo/PWM output channels, allowing multiple servos or PWM devices to be controlled from one expansion board.
- Uses 16-bit resolution per channel for smooth, precise servo angle adjustment and detailed motion control.
- Designed for direct connection to Raspberry Pi Pico with GPIO control, simplifying installation without complex wiring.
- Integrates a 5V regulator with up to 3A maximum output current for powering connected servo devices.
- Accepts a separate 6-12V power input through the VIN terminal to help prevent excessive load on the Pico board.

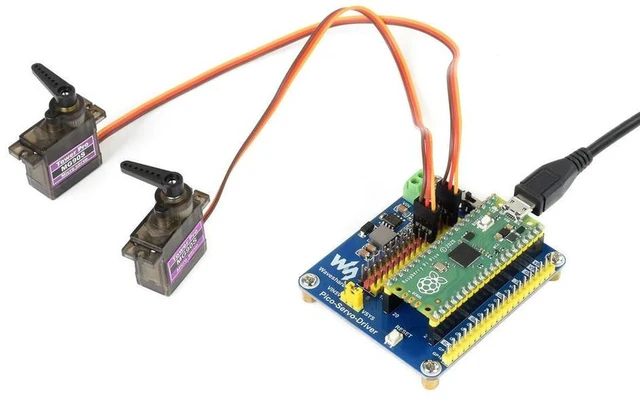

- Includes standard servo pin headers for quick connection to common hobby servos, including SG90 and MG90S models.
- Supports 3.3V logic voltage and 5V servo power, matching the listed control and servo power requirements.
- Measures 65 × 56mm and is suited to robot arms, hexapod robots, animatronic models, and DIY robotics projects.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Product Description:
Servo driver expansion module for Raspberry Pi Pico, providing 16 independent servo or PWM outputs for robotics, embedded motion control, robotic arms, hexapod robots, animatronics, and automated small equipment.
Core Selling Points:
Each channel delivers 16-bit high resolution for smooth and accurate servo angle adjustment. The onboard 5V regulator supports up to 3A output current, while the VIN terminal allows separate servo power to help avoid overloading the Pico board. Standard servo pin headers enable quick connections to most hobby servos, with GPIO control and no complex wiring required. Sample codes are available for development.
Technical Specifications:
Compatible Mainboard: Raspberry Pi Pico. Channels: 16-channel servo/PWM output. Resolution: 16-bit per channel. Logic Voltage: 3.3V. Servo Power: 5V. Max Output Current: 3A. External Power Input: 6~12V via VIN terminal. Control Interface: GPIO. Dimensions: 65 × 56mm.
Before Purchase:
Designed for Raspberry Pi Pico. Confirm your servo power requirements match the 5V servo power supply and use a 6~12V external input through the VIN terminal when separate servo power is needed. Check available GPIO connections and the 65 × 56mm module dimensions before installation.
