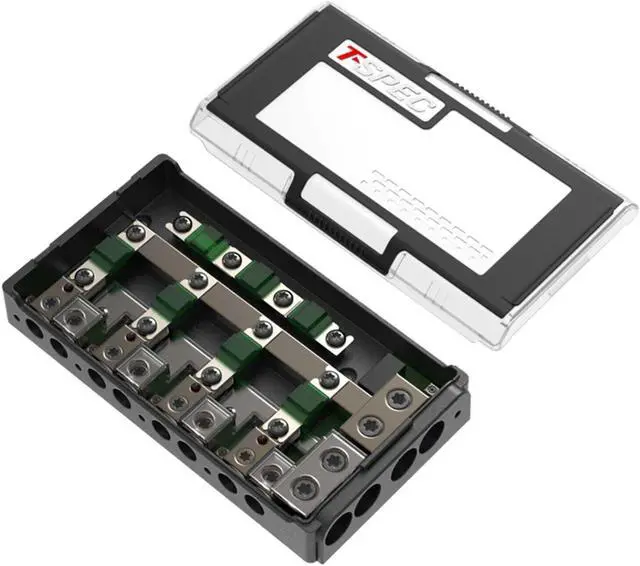

T-Spec VBDB4 Dual Input 4-Way Power and Ground Distribution Block

T-Spec VBDB4 Dual Input 4-Way Power and Ground Distribution Block

T-SPECs VBDB4 is a unique distribution block that combines the most practical, sophisticated features in its class with the highest performance on the market to unleash the full power of a car audio system. Premium construction and materials allow for a highly conductive block with 5mm thick solid brass bus bars and a satin gunmetal finish, with dual 0/1 ground inputs to match the dual 0/1 positive inputs. This block also has a built-in amplification relay for boosting the current rating of the amplifier turn-on wire, distributing it across all 4 outputs. The 4 mated outputs group remote, 4ga power, and 4ga ground together for quick identification, and an anti-short sub-cover isolates the returning ground bar and terminals. A Blown Fuse Indicator (BFI) LED light for each circuit indicates which fuse to replace and 3 rapid replacement spare MANL fuse locations built into the case make replacement simple and easy. A TPE wrapped soft-touch cover completes the high-end look for this premium performance distribution block.

Features

Dual 0/1 AWG positive in

Dual 0/1 AWG negative in

(4) Mated 4 AWG output sets with remote distribution

Built-in amplification relay for boosting the current rating of the amplifier turn-on wire, distributing it across all 4 outputs

Anti-short sub-cover to isolate the ground bar and terminals

(4) Independently MANL fused positive circuits

Blown Fuse Indicator (BFI) LED for each circuit

(3) Rapid replacement spare MANL fuse locations built inside the case

One tool for hardware installation using T-SPEC T20 Torx® screws with Gate Lock technology

Satin gunmetal finished 5mm brass bus bars for power and ground distribution

TPE wrapped soft-touch cover with modern aesthetics
