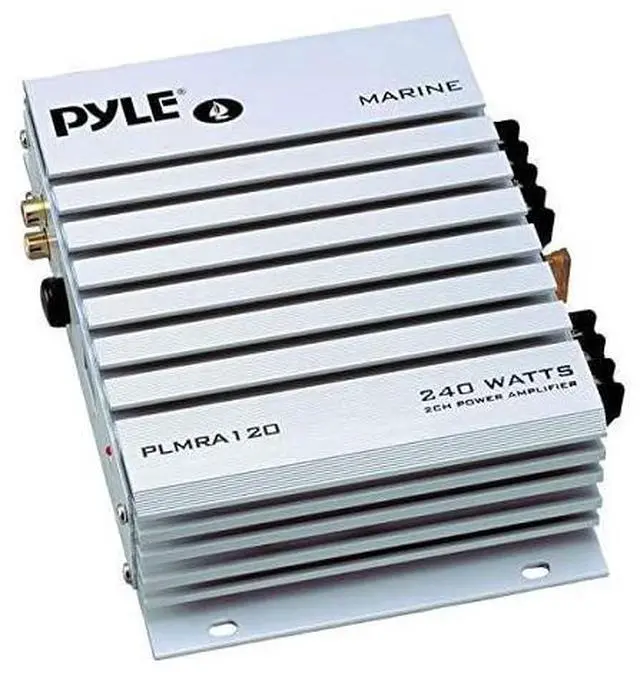

FOR-Hydra Marine Amplifier Upgraded Elite Series 240 Watt 4 Channel Audio Amplifier Waterproof 48 Ohm Impendance GAIN Level Controls RCA Stereo Input LED Indicator PLMRA120

Size: 240

Watts|Style: 2

Channel|Product Packaging: Standard Packaging Marine 2 channel 240W amplifier This Hydra amp will power your speakers on the dock, in your boat, or by the pool--it's completely waterproof. This 2-channel, 240-watt marine amp takes both high- and low-level inputs, so it's compatible with a variety of head units and sources. Remote turn/on off makes controlling the amp a breeze, and gold-plated RCA inputs mean it won't be a weak link in your setup. Power your speakers on the dock, in your boat, or by the pool. Click here for a larger image View a connection diagram. Click here for a larger image Input Options The PLMRA120 features low-level RCA inputs for sources that use RCA-type connectors. If your marine receiver lacks RCA output jacks, you can connect speaker output leads to the high-level terminal inputs. Input Level Control Adjust the line level input for the least amount of distortion to match your source unit. Protection Protect the amp and your vehicle's electrical system from short circuit conditions with built-in fuse protection, along with overload, thermal and short circuit protection. A heavy duty aluminum alloy heatsink helps prevent any thermal issues.

4 or 8 Ohm Speaker Impedance The PLMRA120 is ready for either 4- or 8-ohm speakers, in pair. Remote Turn-On/Off Wire the PLMRA120 to turn on and off in tandem with your receiver/head unit. PLMRA120 Select

Specifications Power Rating: 120 Watts x 2 Maximum (70 Watts x 2 RMS) T. H.

D: 0.05 %

S/N Ratio: > 80dB

Power Supply Voltage: 12V DC Neg.

Ground (11-16V) Frequency Response: 20 Hz-30 KHz

Input Impedance: Low

Level: 10K

OhmsHigh Level: 100 Ohms

Input Sensitivity: Low

Level: 300mVHigh

Level: 3V

Dimensions: 7.87 x 2 x 5.2 Inches (L x W x H) What's in the Box PLMRA120 Amplifier, Mounting Hardware, User's Manual
