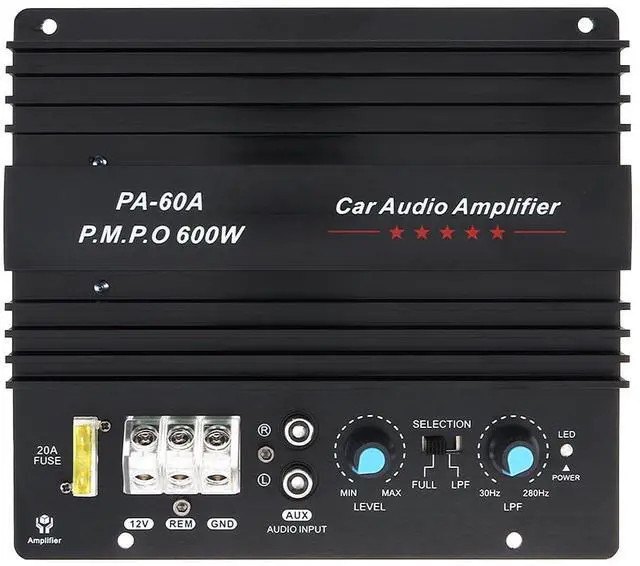

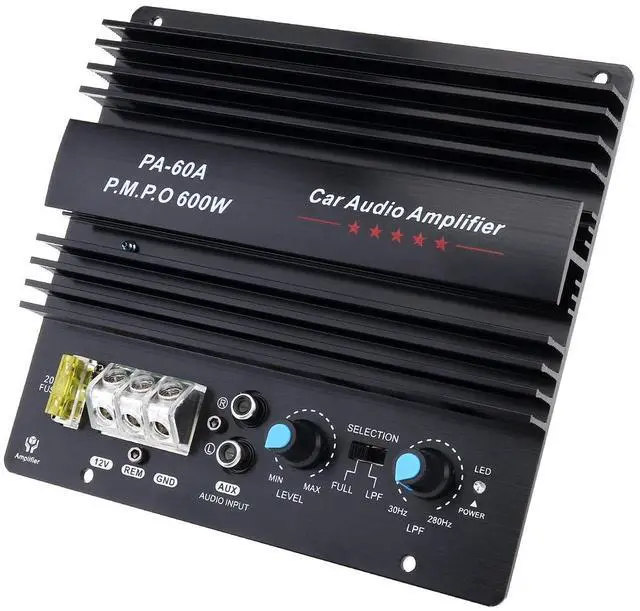

12V 600W Subwoofer Board Bass Module High Power Mono Channel Car Audio Amplifier Board, Powerful Bass Car Audio High Power Amplifier Amp Board

Features:

- Using high power non-sense resistance, good stability, support high temperature working.

- The design of aluminum alloy cooling holes for vehicle power amplifiers has wider contact with air and faster heat dissipation.

- Vehicle power amplifier housing adopts standard safety interface to remove inferior accessories.

- Two color coil transformer, small size and high power, reject all short circuit and improve the utilization rate of PCB board.

- Black Diamond capacitors, sound and mellow, increase the musical expression of equipment, greatly enhance the overall sound effect.

- Powerful electric circulating coil ensures sufficient power when the power amplifier is in operation, and it is safer, more efficient and more stable when used.

- 3D surrounds you to immerse yourself in reality.

- When the circuit is shorted, the fuse will automatically disconnect and protective equipment.

- 600W High Power Amplifier Board.

- Can push 8-12 inch woofer (double voice coil speaker can also be).

Specifications:

Product Name: Car Audio Power Amplifier Board

Signal To Noise Ratio: 75-90DB

Out Power: 600W

Subwoofers Types: Enclosed Subwoofer Systems

RMS: 150W

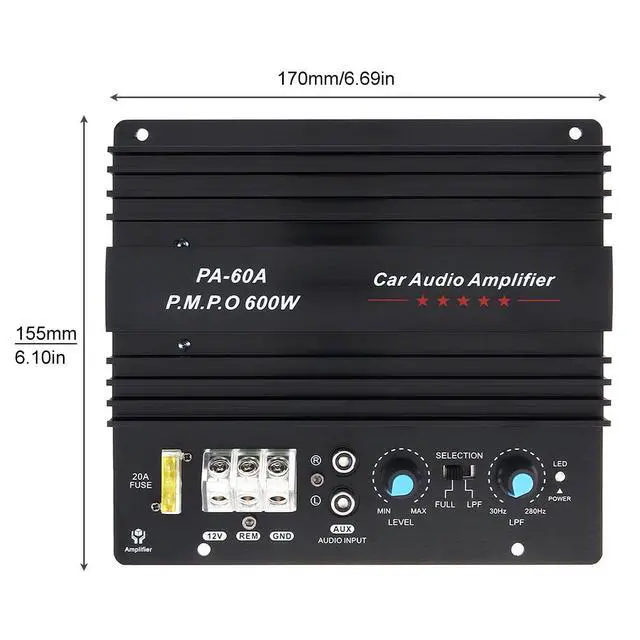

Item Size: 155x170mm/6.1x6.69in

Material Type: Metal

Voltage: 12V

Frequency Range (Hz): 30Hz~280KHz

Impedance: 4

Audio Sensitivity: 75-90DB

Color: Black

Note:

- Connected to the 12V power supply must be connected to the positive electrode of a battery, can not in the car just to find a positive line connected, or burned

- GND interface must be connected with the cathode

- Connect the power cord of the three interface in the middle of the interface is the control line rem, began testing machine take 12V test. And then find the top of the CD ACC control line interface wiring, and be careful not to touch the ground in the car, the exposed place carefully with electrical tape wrapped package is solid, otherwise it will cause a short circuit burned out the machine.

Package Includes:

1 x Car Audio Amplifier Board
