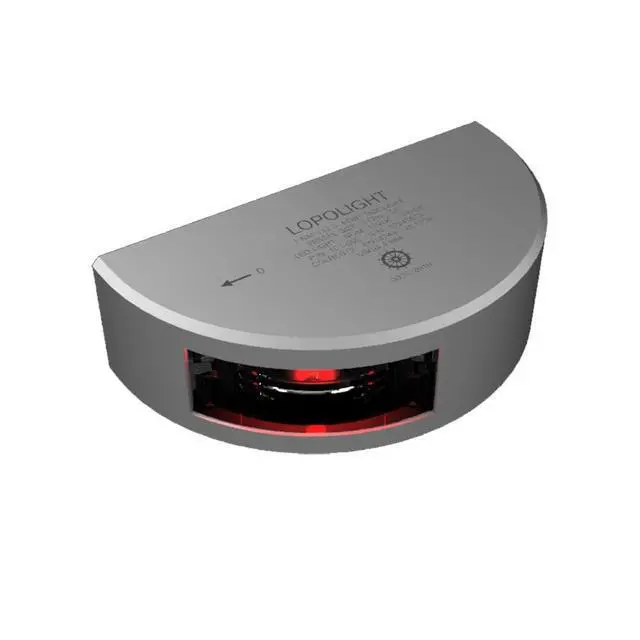

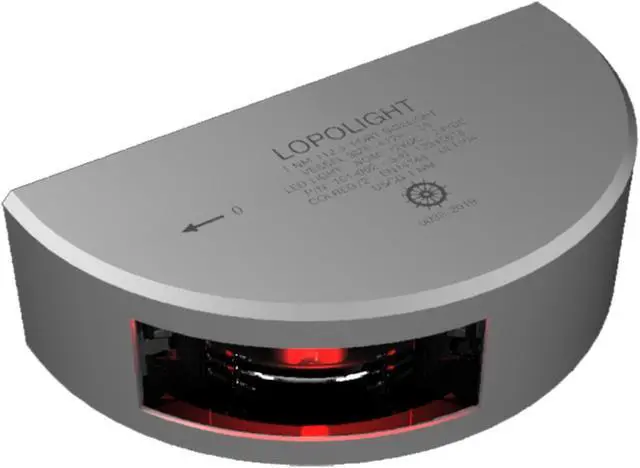

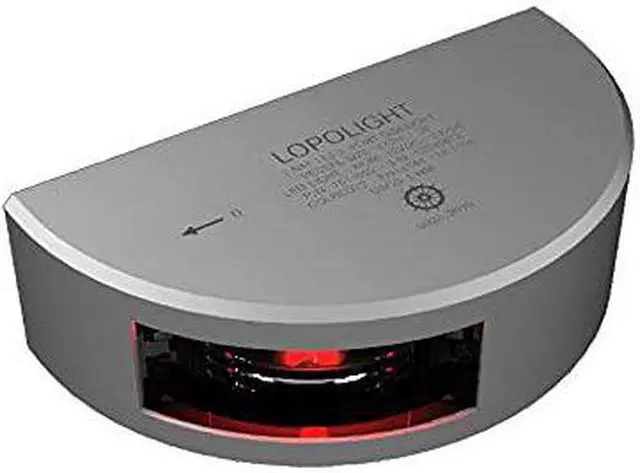

Lopolight Port SideLight - Vertical Mount - Aluminum Housing - 1nm/. [101-002]

Port SideLight - Vertical Mount - Aluminum Housing - 1nm/ 112.5 ° Red with Cable This LED navigation light consists of a single high-power LED that produces light in the specified angle utilizing a special designed PMMA light precision machined 6082 aluminium housing with an anodized surface makes the light a rugged and durable housing for the LEDs and electronics contained interior is completely filled with a special potting resin making it water- and vibration in our in-house manufacturing facility to meet and exceed exacting standards such as EN14744 and UL1104, under a quality management system continuously surveyed by Lloyds Register Quality light is subjected to final testing for a minimum of 16 hours of continuous operation bringing the total test time beyond 24 hours.

This navigation light is in compliance with the following standards: COLREG72EN14744IEC 60945USCG (UL1104)
Specifications:
Materials: Anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane.
Supply Voltage: 10.0 - 32.0 VDC
Power Consumption: 1, 0 WattCurrent @ 12
VDC: 0, 08
A: Current @ 24
VDC: 0, 04
A Light Colors:
RedIntensity: > 1.2
CDVisibility (@K= 0.8 ): 1 nmNumber of
LEDs: 1Vessel
Size: 12
meter ( 39.4 feet)Mounting: Vertical
