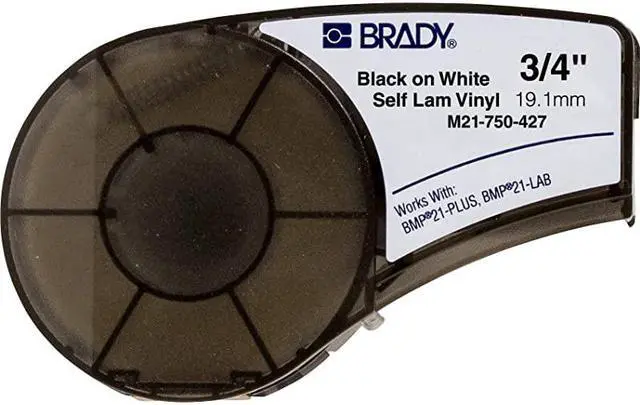

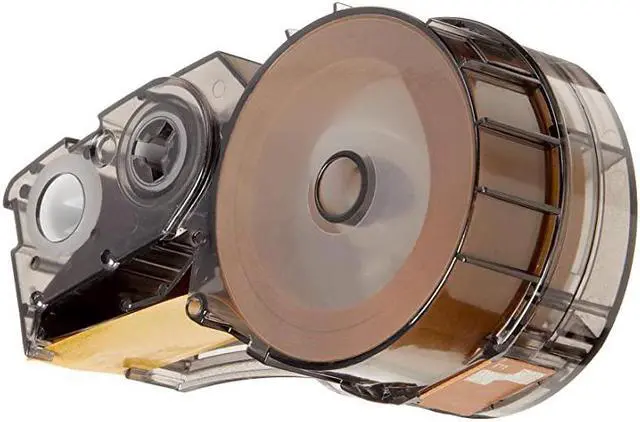

Official M21750427 SelfLaminating Vinyl Label Tape Black on WhiteTranslucent Designed for BMP21PLUS BMP21LAB IDPAL and LABPAL Label Printers 14 Length75quot Width

Color: Black On White 110927/M21-750-427 Self-laminating labels for the BMP 21 mobile printer. Black ribbon on white or translucent tape. Measures 14' length by 0. 75" width, with black on white or translucent color. Material is used B-427 self-laminating vinyl. 0. 160" max, range of wire diameter, 14' width, 0. 375" height printable area, matte finished label. Printer compatibility is BMP21. Smooth, textured/rough surface. Thermal transfer print technology, translucent vinyl material type, finish type is provided in a self-laminated format with a white printable zone and a translucent overlaminating area. Adhesive is permanent acrylic. This material has good clarity, conformability and is self-extinguishing. B-427 has outstanding water and oil resistance. Recommended ribbons are series R4300 black and R4500 colored (red, blue, green) for thermal transfer printing. Regulatory/agency approvals B-427 is UL recognized to UL969 labeling and marking standard when printed with the series R4300 and R6200 ribbons. See UL files MH17154 for specific details. B-427 is RoHS compliant to 2005/618/EC MCV amendment to RoHS Directive 2002/95/EC. From the Manufacturer Self-Laminating Cable & Wire Labels (B-427) Conformable material designed to adhere to highly curved surfaces, wires and cables Features a white printable area with clear “ tail” that wraps around marker Clear tail serves as over-laminate to protect the text, providing superior resistance to abrasion, dirt, oils, solvents, water and excessive handling This material has good clarity, conformability and is self-extinguishing
Service temp: -40º F to 158º F
Application temp: 50º F to 158º F
Material Description Print Technology: Thermal Transfer
Material Type: Translucent vinyl

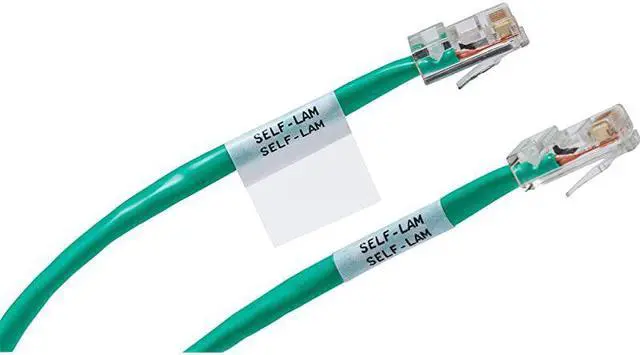

Finish: Provided in a self-laminated format with a white printable zone and a translucent overlaminating area.

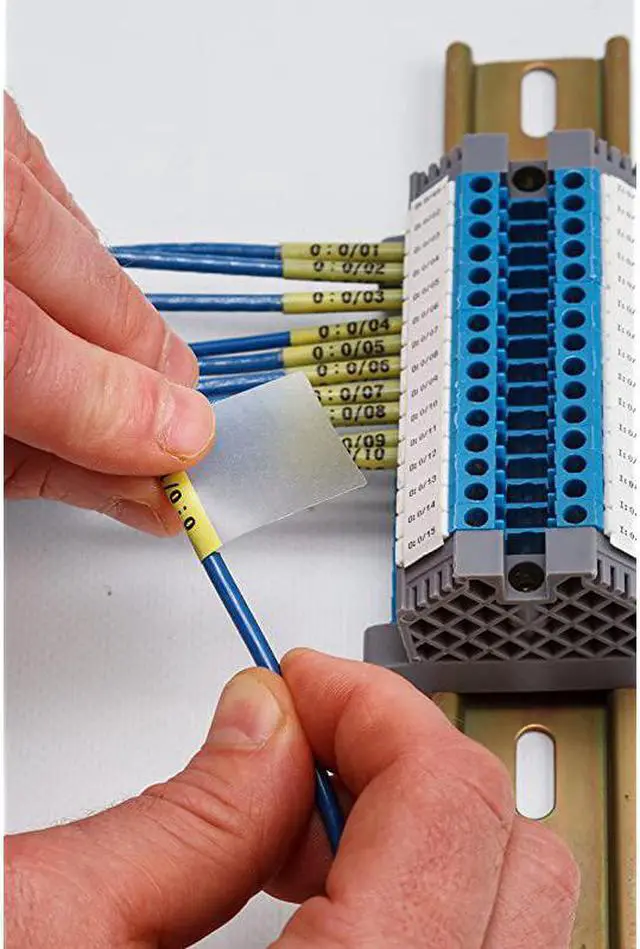

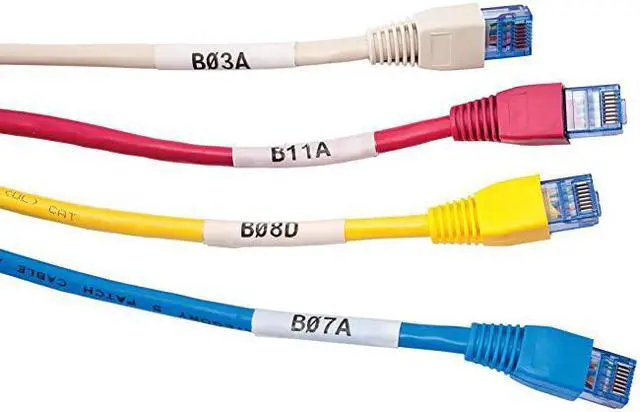

Adhesive: Permanent acrylic Applications Wire and cable identification Recommended Thermal Transfer Ribbons Thermal transfer ribbons are only needed for labels that do not have self-contained print ribbons Series R4300 - Black Series R4500 - Red, Blue, Green Series R6200 Regulatory/Agency
Approvals UL: Recognized to UL969 Labeling and Marking Standard when printed with the Series R4300 and R6200 ribbons. See UL files MH17154 for specific details
RoHS: Compliant to 2005/618/EC MCV amendment to RoHS Directive 2002/95/EC Material Details PHYSICAL PROPERTIES RESULTS TEST METHODS Total Thickness 0.0040 inch ( 0.102 mm) ASTM D 1000 Adhesion to Stainless Steel 38 oz/inch (42 N/100 mm) 20 minute dwell; 49 oz/inch (54 N/100 mm) 24 hour dwell ASTM D 1001 Adhesion to Polypropylene 25 oz/inch (28 N/100 mm) 20 minute dwell; 33 oz/inch (36 N/100 mm) 24 hour dwell ASTM D 1003 Tack 13.3 oz (378 grams); Polyken Probe Tack ASTM D 2979 Drop Shear 3.3 Hours PSTC-7 (except use 1/2" x 1" sample) Tensile Strength & Elongation 12 lb/in (210 N/100 mm) 152%, Machine; 11 lbs/in (193 N/100 mm) 195%, Cross ASTM D 1000 Flamibility ABT less than 10 Seconds ASTM D 1000 High Service Temperature Slight discoloration at 140°F (60°C) 30 days at 158°F (70°C) Low Service Temperature No visible effect 30 minutes at -40°F (-40°C) Weatherability No visible effect 30 days in Xenon Arc Weatherometer (ASTM G155, Cycle 1) Humidity Resistance No visible effect 30 days at 100°F, 95% R. H. About Corporation manufactures signs, tags, printers, and other industrial safety and identification products. was founded in 1914, is headquartered in Milwaukee, Wisconsin, and meets International Organization for Standardization (ISO) 9000 standards.
