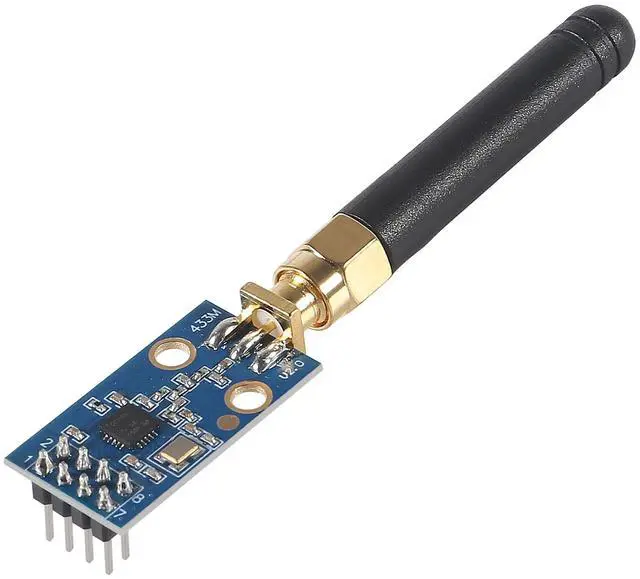

    DWEII 2 Sets CC1101 Wireless Module with SMA Antenna Wireless Transceiver Module for Arduino 315/433/868/915MHZ

    Be the first to review this product...
    • Made of high-quality materials, durable.CC1101 wireless RF transceiver 315/433/868/915MHZ + SMA antenna wireless module
    • Working voltage :1.8-3.6V Maximum transmit power: 10mW (+10dBm);
    • Instantaneous maximum working current: <30mA
    • The module has enough transmitting power, good spectrum characteristics, small harmonics, small channel crosstalk and ultra small volume.
    • Using high precision crystal oscillator and inductor, some devices have reached the military grade standard.
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

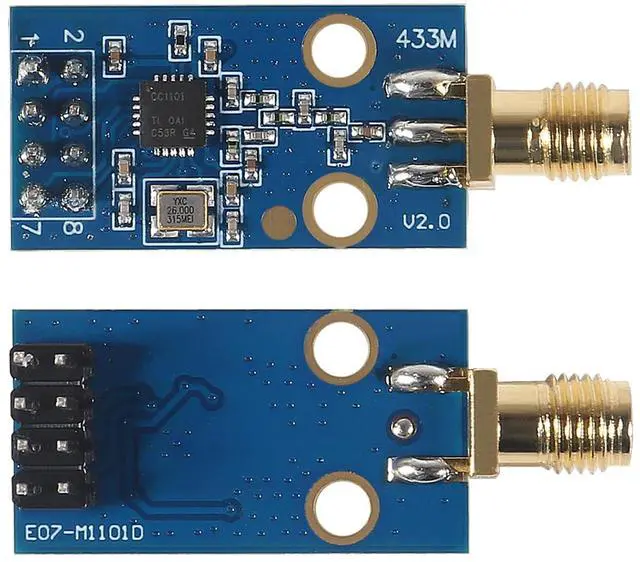

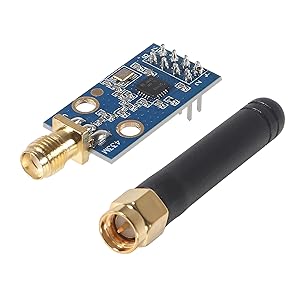

    CC1101 Wireless Module

    Industrial-grade CC1101 wireless module 433M digital transmission transceiver class NRF905 SI4432 SMA interface

    CC1101 Wireless Module:

    • Wireless Module
    • Condition: New
    • Operating frequency:(Module:387-464MHZ)
    • Working voltage :1.8-3.6V
    • Instantaneous maximum working current: <30ma>
    • Maximum transmit power: 10mW (+10dBm)
    • Features:
    • 315/433/868/915MHZ ISM band
    • Support 2-FSK, GFSK and MSK modulation
    • Receiver sensitivity -110dBm at 1200 baud
    • Minimum operating speed 1.2kbps, the highest 500kbps
    • Separate 64-byte RX and TX data FIFO buffer
    • Built-in hardware CRC error detection ensures reliable data transmission
    • Support RSSI signal strength detection and carrier sense function
    • Low power consumption

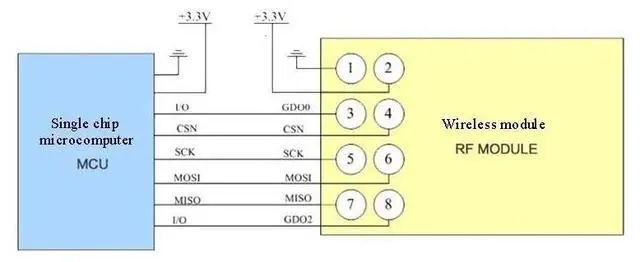

    • Mailing Address (256) Operating frequency can be programmed via SPI
    • Programmable output power, for all the support frequencies up to +10 dBm
    • WOR feature can be set to standby, the proportion receiving state timer switch time to reduce power consumption
    • Fast frequency synthesizer with proper frequency hopping system

    CC1101 Wireless Module

    Industrial-grade CC1101 wireless module 433M digital transmission transceiver class NRF905 SI4432 SMA interface

    CC1101 Wireless Module:

    • Wireless Module
    • Condition: New
    • Operating frequency:(Module:387-464MHZ)
    • Working voltage :1.8-3.6V
    • Instantaneous maximum working current: <30ma>
    • Maximum transmit power: 10mW (+10dBm)
    • Features:
    • 315/433/868/915MHZ ISM band
    • Support 2-FSK, GFSK and MSK modulation
    • Receiver sensitivity -110dBm at 1200 baud
    • Minimum operating speed 1.2kbps, the highest 500kbps
    • Separate 64-byte RX and TX data FIFO buffer
    • Built-in hardware CRC error detection ensures reliable data transmission
    • Support RSSI signal strength detection and carrier sense function
    • Low power consumption
    • Mailing Address (256) Operating frequency can be programmed via SPI
    • Programmable output power, for all the support frequencies up to +10 dBm
    • WOR feature can be set to standby, the proportion receiving state timer switch time to reduce power consumption
    • Fast frequency synthesizer with proper frequency hopping system

    Made of high-quality materials, durable

    CC1101 wireless RF transceiver 315/433/868/915MHZ + SMA antenna wireless module

    Continuous frequency band expansion:

    CC1100: 400-464 MHz and 800-928 MHz

    CC1101: 387-464 MHz and 779-928 MHz

    Working voltage: 1.8-3.6V

    Working frequency: (module: 387-464MHZ) Default working frequency: 433Mhz

    Maximum instantaneous working current: <30mA;

    Maximum transmit power: 10mW (+10dBm)

    Support 2-FSK, GFSK and MSK modulation;

    Receiver sensitivity -110dBm, 1200 baud

    The minimum operating speed is 1.2kbps, the maximum is 500kbps

    Independent 64-byte RX and TX data FIFO buffer

    Built-in hardware CRC error detection to ensure reliable data transmission

    Support RSSI signal strength detection and carrier sensing functions

    Low power consumption

    Mailing address (256) Working frequency can be programmed via SPI

    Programmable output power, supporting all frequencies up to +10 dBm

    WOR function can be set to standby, proportional receiving state timing switch machine time, reduce power consumption

    Fast frequency synthesizer with proper frequency hopping system

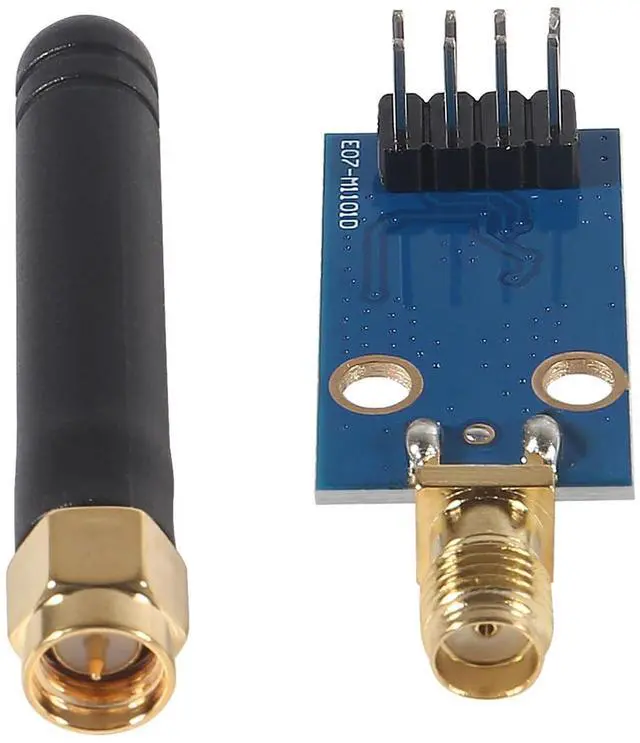

    Package list:

    1 * wireless module

    1 * Antenna


    Product information

    Brand DWEII
    Model Name CC1101 Wireless Module
    Connectivity Technology radio_frequency
    Included Components CC1101 Antenna
    Operating System Arduino IDE
    RAM LPDDR
    Wireless Type Radio Frequency
    Series CC1101 Wireless Module
    Item Weight 0.528 ounces

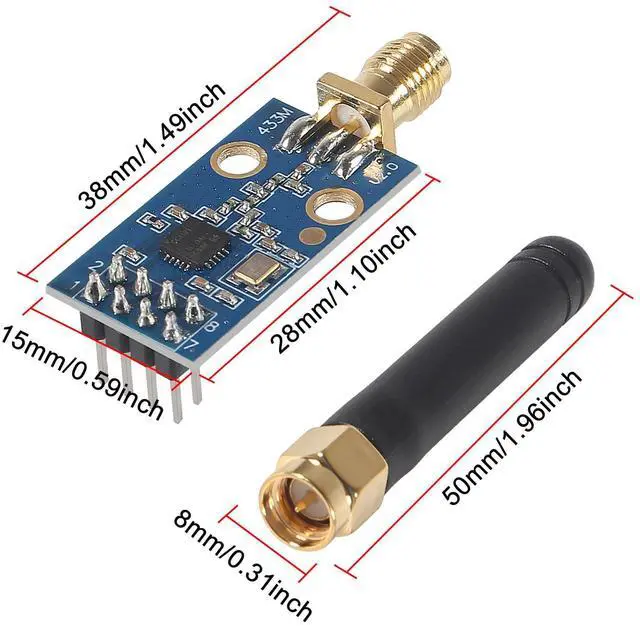

    Package Dimensions 2.83 x 1.38 x 0.55 inches
    Processor Brand STMicroelectronics
    Number of Processors 1
    Manufacturer DWEII
    Date First Available January 22, 2024
