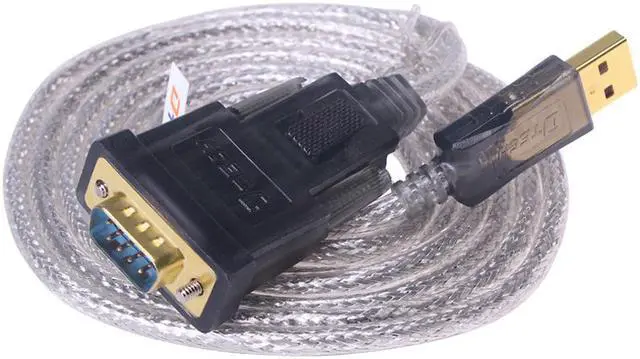

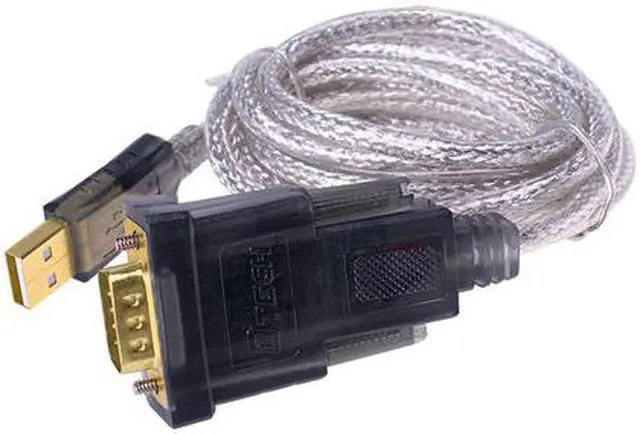

DTECH USB 2.0 Male TO SERIAL DB9 MALE (9 PIN) RS232 Converter CABLE ADAPTER (DT-5002A) 6ft/1.8m

Tekit DT-5002A 6ft. USB 2.0 TO SERIAL DB9 MALE (9 PIN) RS232 CABLE ADAPTER support win8
Brand: Dtech
DTECH Model: DT-5002A
Product Name: USB 2.0 serial cable
Color: Transparent
Black Weight: 96.47G
Cable length: 1.8M /6ft
Features: RS232 interface for connecting communication equipment
Chip: Original Taiwan chip
PL2303 PCB Material: epoxy fiberglass double panel
USB Interface Material: Gold
Material Operating voltage: 5V
Current: 200MA
Working temperature: -40 to 85 c, relative
humidity: 5-95%
Support System: Support Windows 98/Me/2000/XP/VISTA/WIN7/WIN8 or MAC version or higher.

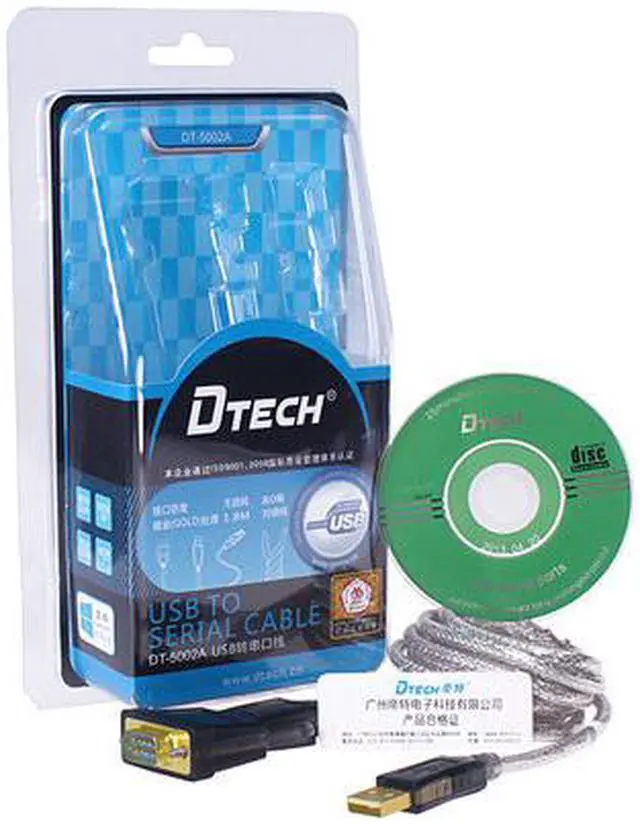

Accessories: Driver CD 1, full-speed usb device interface, compatible USBV 2.0, V 1.1 2, imported PL2303RA original chip, standard serial protocols 3, the computer side windows operating system is fully compatible serial applications without modification. 4 full-duplex hardware serial ports, built-in transceiver buffers support the communication baud rate 50bps-2Mbps. 5, supports common MODEM liaison signal RTS, DTR, DCD, RI, DSR, CTS. 6, anti-electromagnetic interference design, USB bus self-powered, plug and play. Supports baud rate 2400bps to 115200bps. 7. USB bus self-powered through USB converter cable for your computer to add a serial port, easy industrial grade, high-performance computer to communicate with RS232 devices.
Applications: All serial devices 1 Fiscal machine 2 CNC machine tools 3. PDA
4. Modem 5 STB 6 barcode machine 7 Based on MCU / PLD / FPGA to the USB port of industrial control 8 industrial machinery, instrumentation

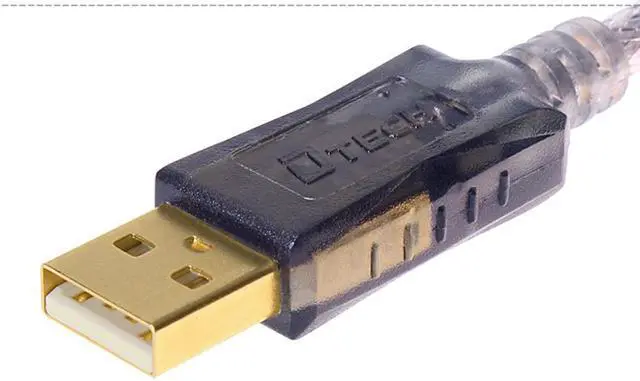

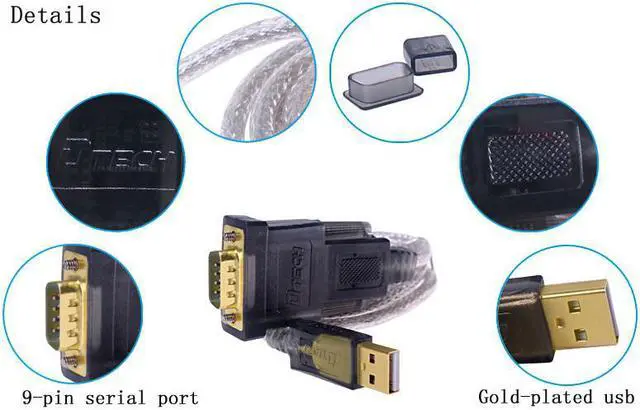

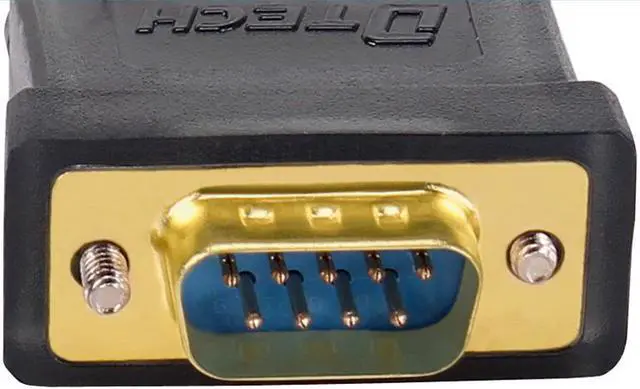

Features: 1 green crystal transparent shell is made of black PVC material to build, injection molding, with a durable, strong, anti-oxidation characteristics. 2 a gold-plated USB A-type interface for easy connection to a PC, rust, corrosion, giving a gold noble vision, in line with 2.0 standard, full-speed, high speed, backward compatible. 3 A ferry gold RS232 serial DB9 connector for easy connection to the appropriate equipment, rust, corrosion, giving a gold noble vision, support 1Mbps data transfer, and remote wake-up and power management. 4 serial cable circuit boards, soldering points more delicate and clean, model, chip solution is clearly visible, and also by RoHS environmental certification. 5 support Windows98SE/2000/XP/Vista/Win7/WIN8/Mac Os v 8.6 or later operating system
Frequently Asked Questions: 1 can not identify communication
A: Install the driver, the driver in Device Manager to see if the installation is successful in; recommended updates USB port, or a pluggable device before reconnecting; replace the operating system to test whether the product is indeed a problem 2 device can not communicate
A: The product does COM port is consistent with the customer's equipment COM port; then determine whether the same baud rate, 3
Support Systems A: Support XP (32 & 64) bit, win7 (32 & 64) bit, win8 (32 & 64) bit 4 product safety and stability
A: The product has been WHQL Driver Version Information (Windows Hardware Quality Labs OS TM) certification, product safety and reliability and stable, Taiwan imported chips, to ensure the stability of the product with durability with resistance
