Provide Full Or Half Duplex Signals Without A jumper!
Connect your RS-422 or RS-485 peripheral to a USB Port and instantly protect against 600W lightning strikes and 15KV ESD surges. Using its FTDI FT232RL chip set, you'll have plug-and-play features and transmission rates up to 921.6kbps automatically detected. Great for point to multi-point communication with up 32 devices connected per converter.
Features:

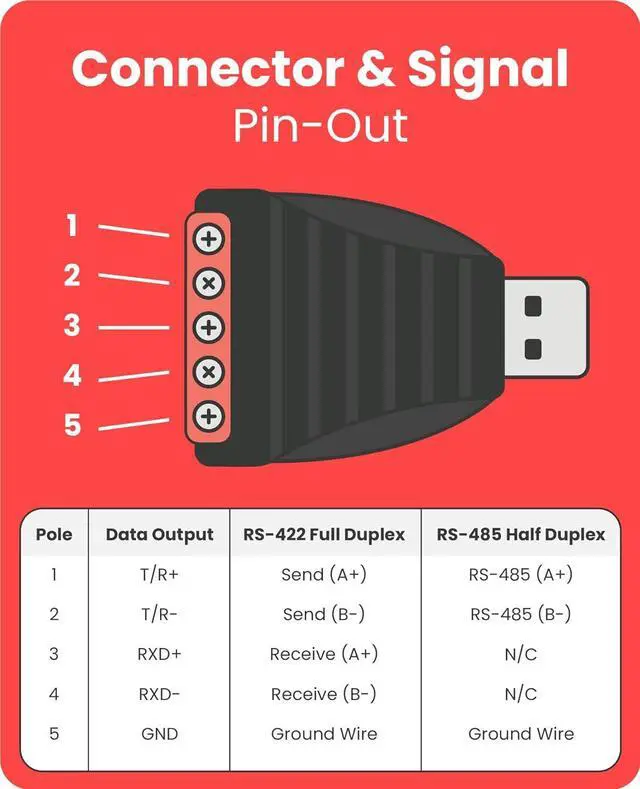

- RS-485 Signals: T/R+, T/R-, GND
- RS-422 Signals: TX+, TX-, RX+, RX-, GND
- Modes: Asynchronous, Point-to-Point, Point-to-Multipoint, 2-Wire (Half-Duplex), 4-Wire (Full-Duplex)
- Transmission Rates: Up to 921.6kbps, automatic detection of signaling rate
- Load Capability: 32 devices in Point-to-Multipoint topology.
- Transmission Distance: RS485/422: 1.2km (all rates), USB: 5m

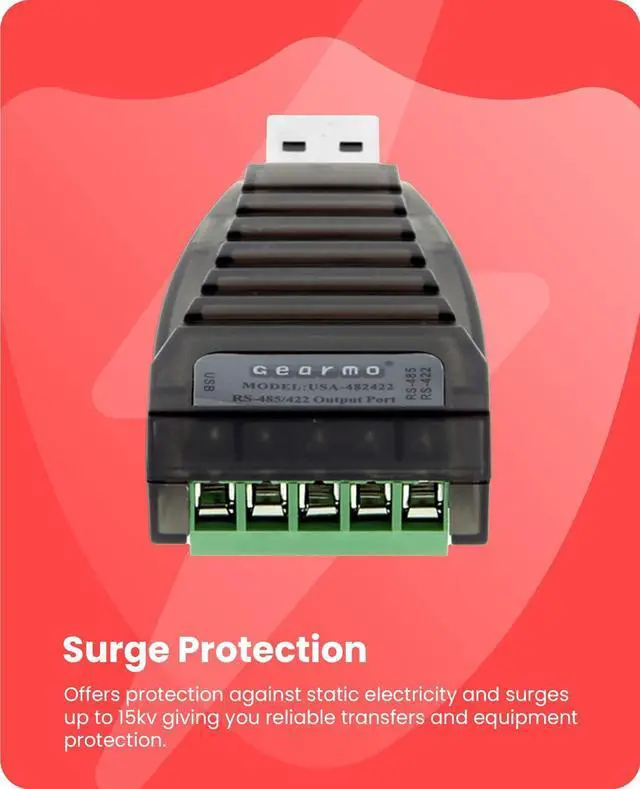

- Protection: 600W Lightning Strike and surge suppression, 15KV ESD protection
- Signaling Diagnostics: LEDs for POWER, TX and RX
- Dimensions: 62x33x19 mm
- Chipset: FTDI FT232RL
- OS Support:
- Windows 7, 8, 10, & Windows 11
- Linux
- Mac OS 10.X

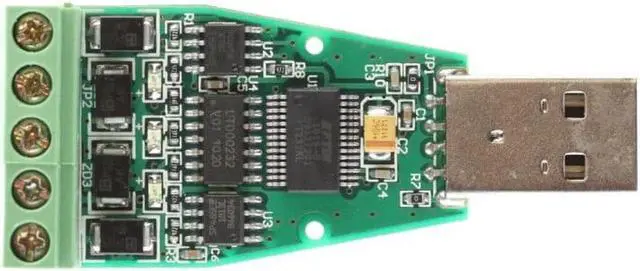

The converter contains a unique I/O circuit with an internal zero delay. The auto transceiver within controls the data stream automatically without any handshaking signals such as RTS, DTR, etc.

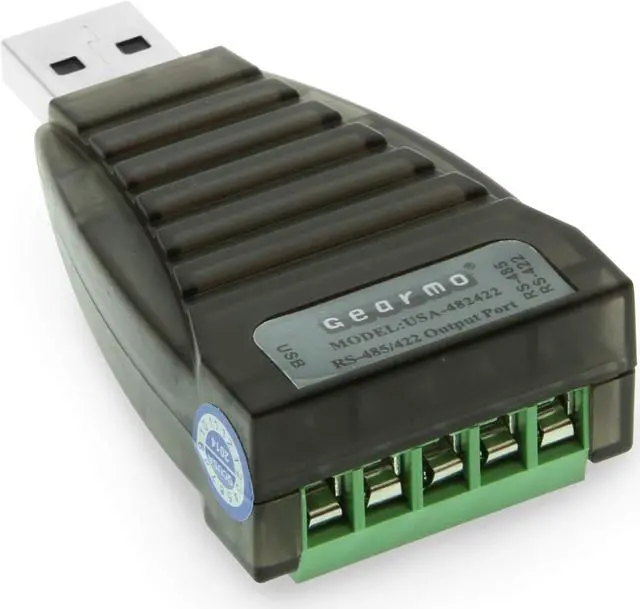

The USA-422485 is a small, compact converter that handles big communication jobs in converting RS 485 to RS 422.

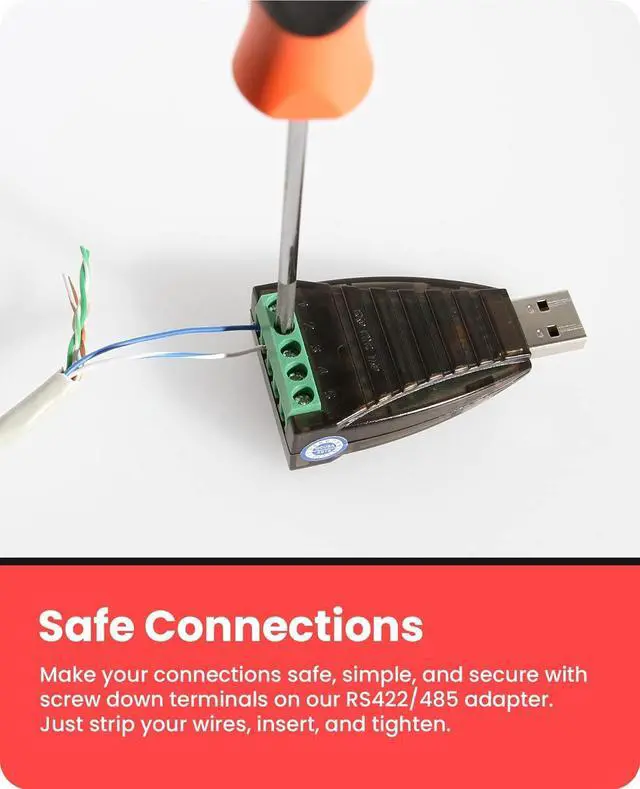

Make your connections safe, simple, and secure with screw down terminals on our RS422/485 adapter. Just strip your wires, insert, and tighten it down.
