Gearmo USB to RS-232 Serial Adapter w/ LED Indicators & Windows 11 Support
- USB TO RS232 SERIAL - 5ft length serial adapter cable allows connection of legacy DB-9 serial communications devices to a modern computer with USB.
- LED INDICATORS - Easily check the status of the RS-232 host to device link with a full LED dual color display to enable fast and easy connection testing.
- COMPATIBILITY - Supported OS platforms are Windows 7, 8, 10, and 11 as well as Linux and MacOS 10.X.
- WHY Gearmo? Your Trusted Partner based in the USA, Providing Advanced Engineering, Highly Reliable and Superior Built Products to handle the most demanding industries for over 20 years. Reach out to us for CAD, Mechanical Drawings and, Data Sheets.
+
+
Overview
Specs
Reviews

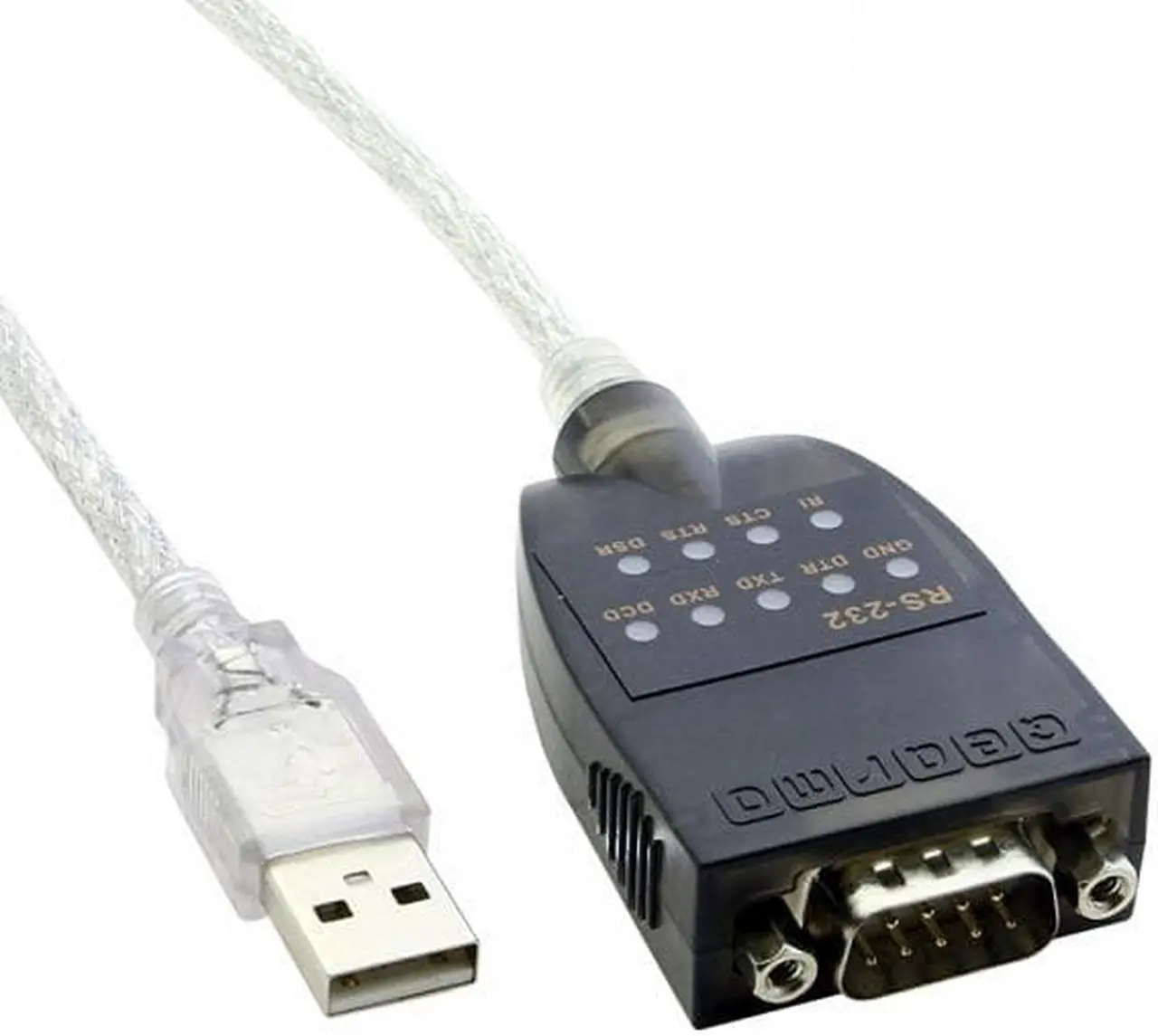

USB RS-232 serial adapter with LED indicators
Introduction:

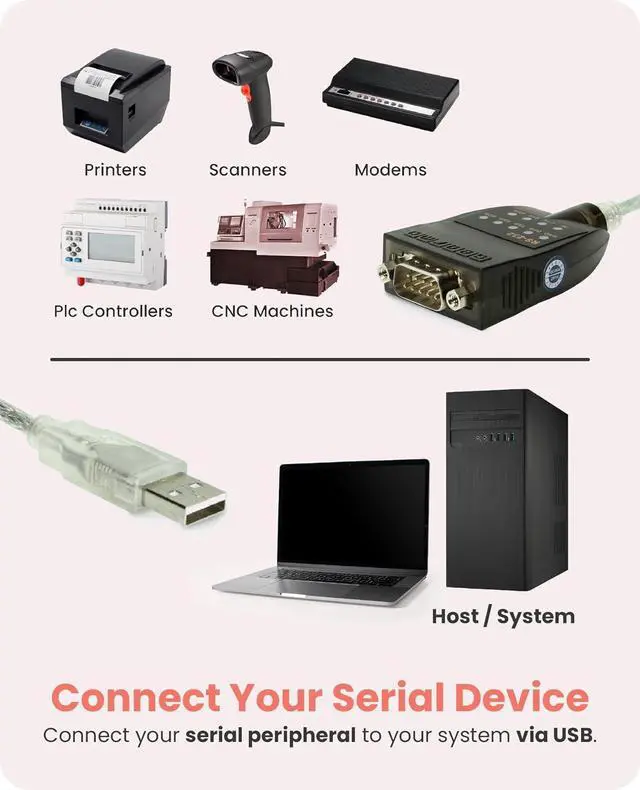

This adapter is the easiest way to add a serial port to your computer. Many digital cameras, GPS units, barcode scanners, PDAs, and other equipment require a serial connection and many newer computers don't have serial ports.

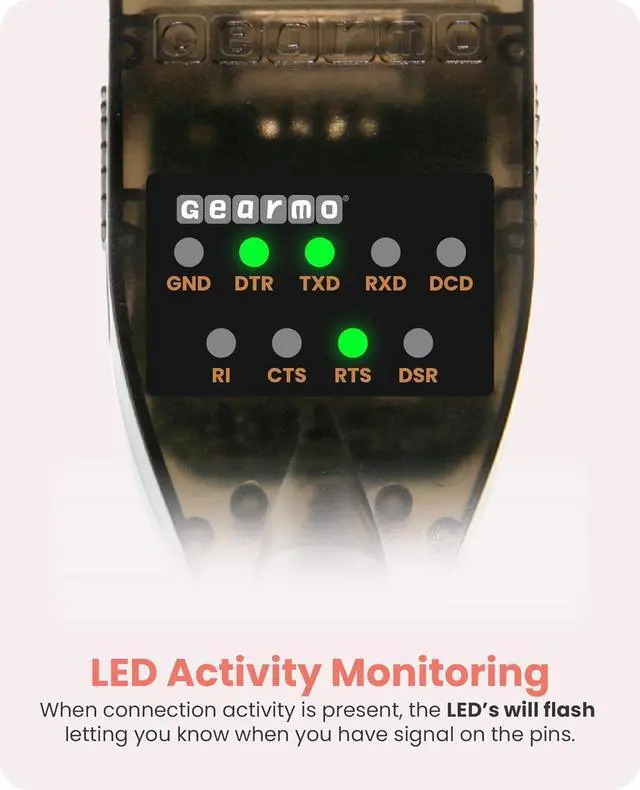

This adapter also allows you to monitor the status of your connections by marking them with LEDs, which flash when there is activity on the pins. The FTDI-LED offers an advanced FTDI chipset, USB to RS-232 connection with double color LED display of full signal power. The device is powered individually by the USB port. This device is easy to install, it features a plug & play easy test RS-232 host to device link.
Device support:
PDA RS-232 port support, 56K modem support, serial mouse support, serial PC camera support.

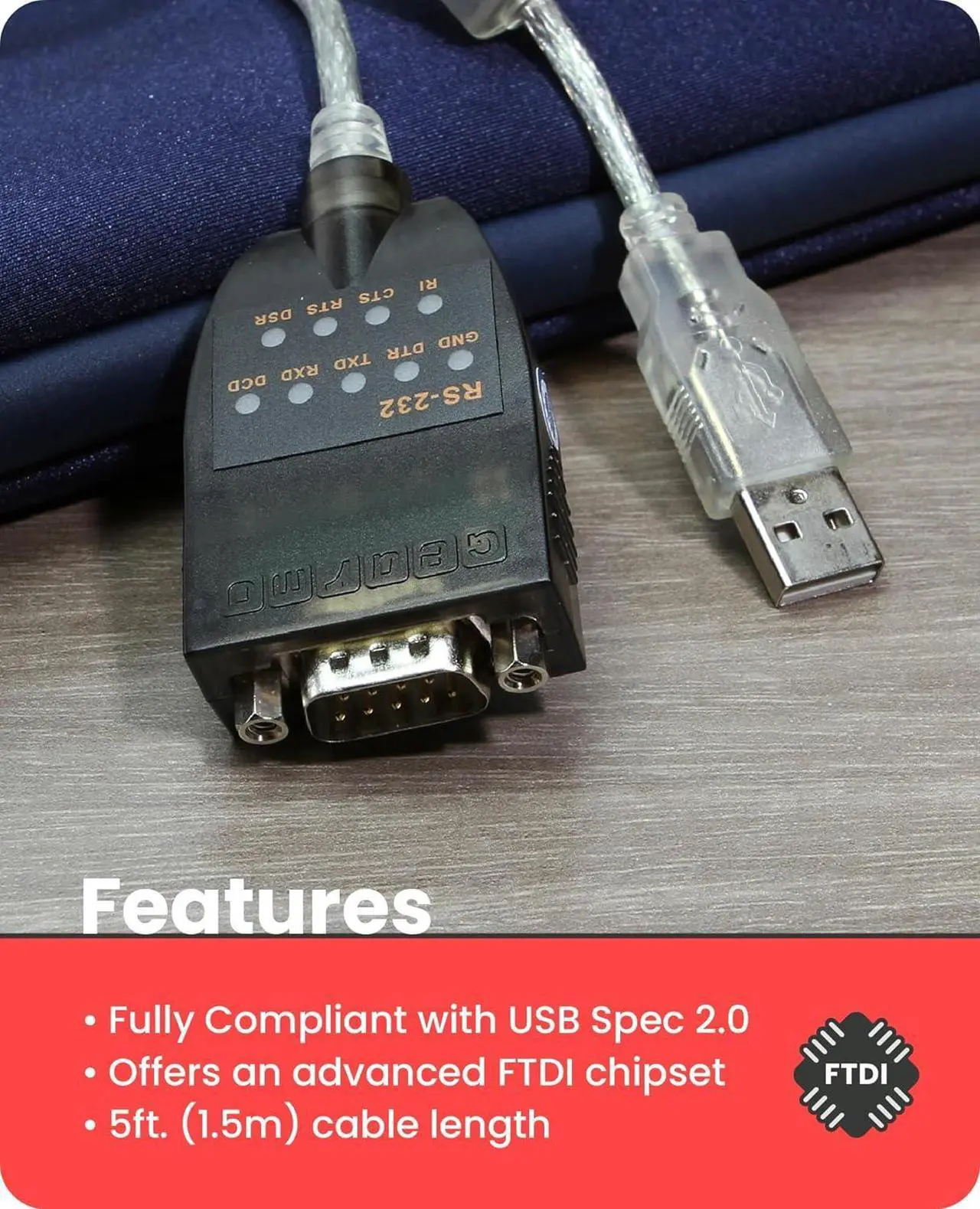

Features
- Fully compliant with USB 2.0 / USB 1.1
- RS-232 - DB9/M
- Data rate: over 1000kbps
- ESD protection for RS-232 +-15KV RS-232 for DTE mode.

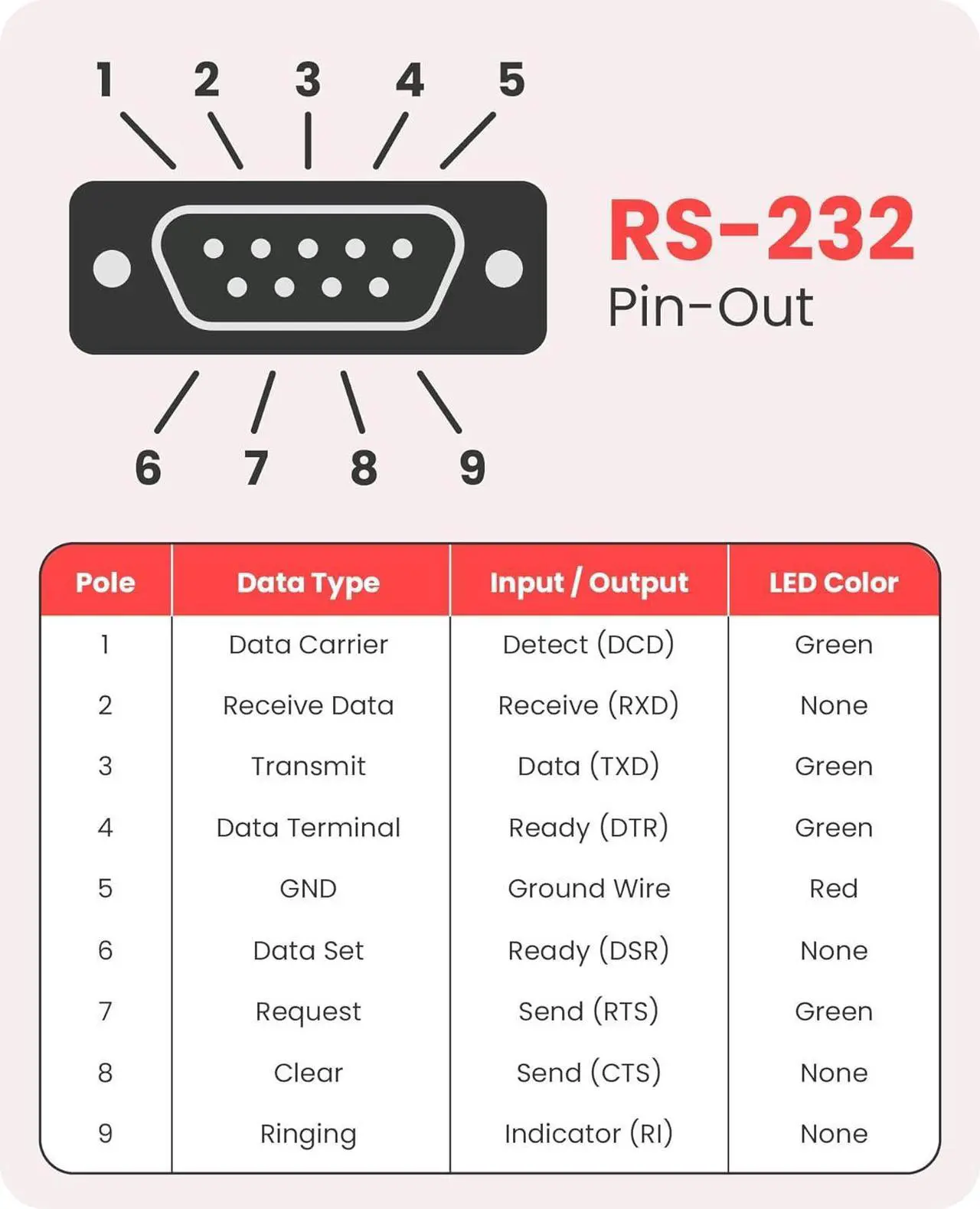

- LED color: 1~4, 6~9 pin signal 0 : green/signal 1 : red GND - red - power PS. DB9-F pin/1,2,6,8,9 no input LED no light , DCD , RXD, TXD, DTR , GND,DSR ,RTS ,CTS , RI
- Easy test RS-232 host to device link

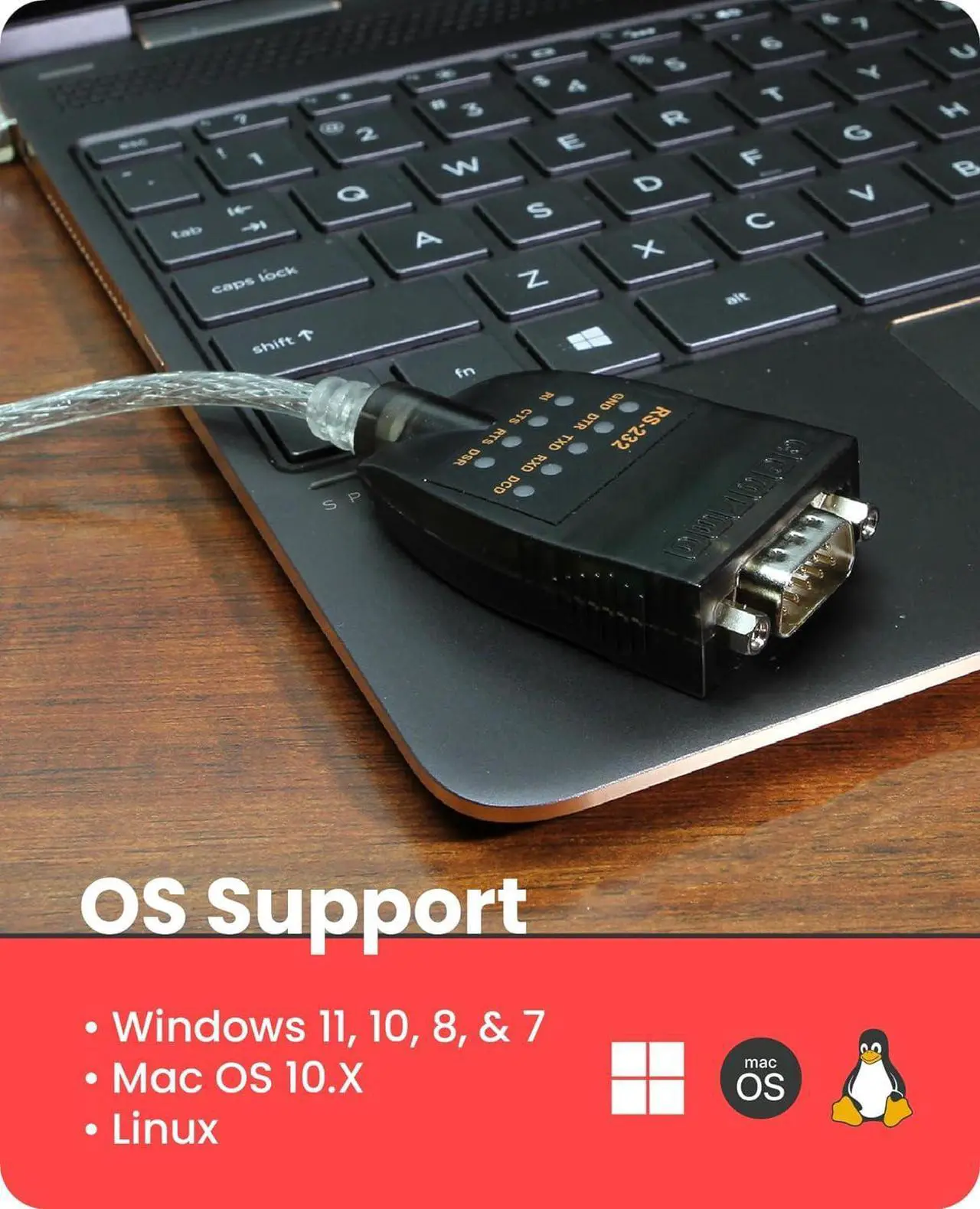

- OS support: Windows 7, 8, 10, & Windows 11, Linux, & Mac OS 10.X.
