USBGear 1-Port USB to RS-232 Selectable RS-422 or RS-485 Industrial Adapter
- [ Instant Serial Expansion ] : Adds RS-232, RS-422, or RS-485 communication to your system via USB - ideal for printers, data collection, POS systems, bar code scanners, automation, and more.
- [ Durable Construction ] : SECC metal chassis with surface mounting flanges perfect for installations in labs, warehouses, or heavy machinery.
- [ Flexible Connectivity ] : Includes both DB9 male and 6-pin terminal block connectors for versatile setups.
- [ Power Output Capability ] : Delivers 5V/150mA through the terminal block to power serial devices.
- [ Fast Data Transfer ] : Supports baud rates up to 921.6K bps with non-standard rate compatibility.
- [ Reliable Protection ] : Built-in 10KV surge protection ensures safe operation in demanding environments, with fully configurable COM Ports to preserve assignments after reboot.
+
+
Overview
Specs
Reviews
See all Q & A
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
USB-COMi-M USB to RS-232 / RS-422 / RS-485 Serial Adapter

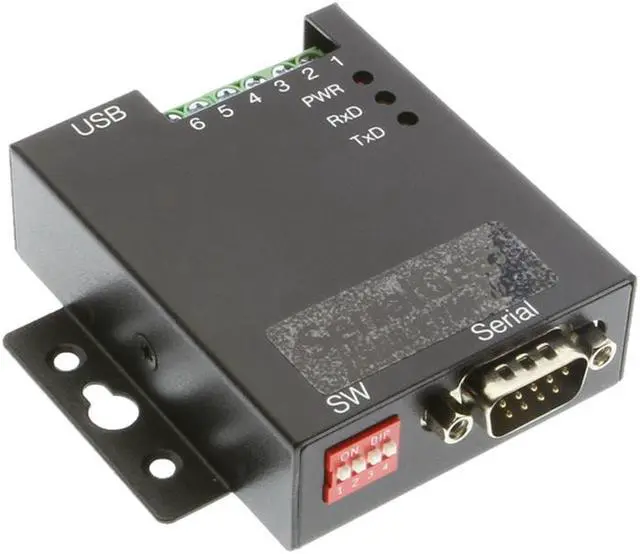

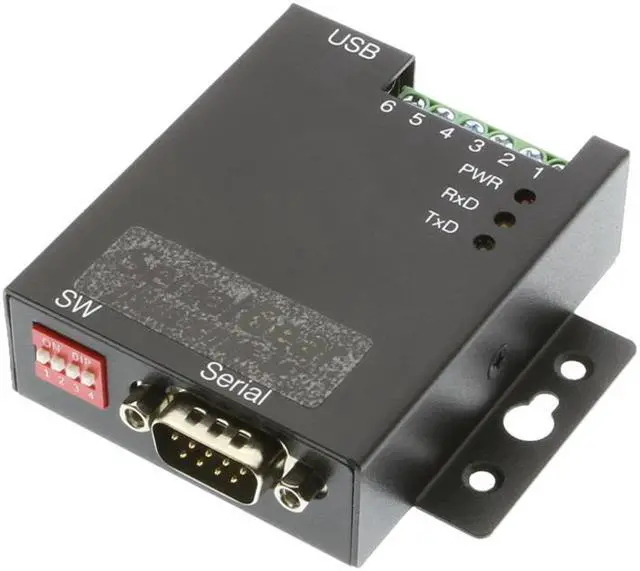

Expand your computer's serial connectivity with the USB-COMi-M USB to RS-232, RS-422, and RS-485 Serial Adapter. Designed for commercial and industrial applications, this USB-powered adapter adds one selectable serial port for connecting POS systems, factory automation equipment, barcode scanners, scales, and other serial devices. Its rugged metal chassis features built-in surface mounting flanges for secure installation.
Features:
- Flexible Serial Communication: Switch between RS-232, RS-422, and RS-485 modes using an external 4-pin DIP switch without opening the chassis.
- Versatile Connections: DB9 male connector and 6-pin terminal block with 5V/150mA power output through pin 6.
- High-Speed Performance: Supports baud rates up to 921.6Kbps with built-in termination, biasing, and automatic control for 2-wire RS-485.
- Industrial Protection: Rugged metal housing, 10KV surge protection, and Power, TxD, and RxD status LEDs.
- Easy Installation: USB-powered with plug-and-play and hot-plug functionality. No external power adapter required.
- System Compatibility: Supports Windows 7/8/10/11, Linux, and Mac OS 10.X.
Package Contents:
- USB-COMi-M USB to Serial Adapter
- USB 2.0 Type-A to Type-B Cable
- Driver Disc
Note: Surface mounting screws are not included.
