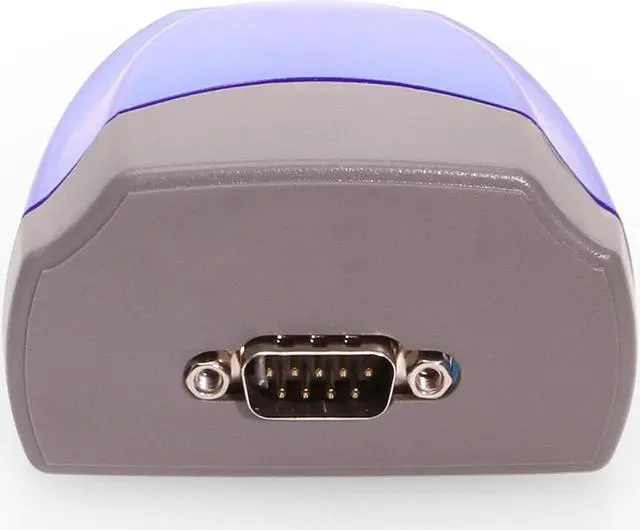

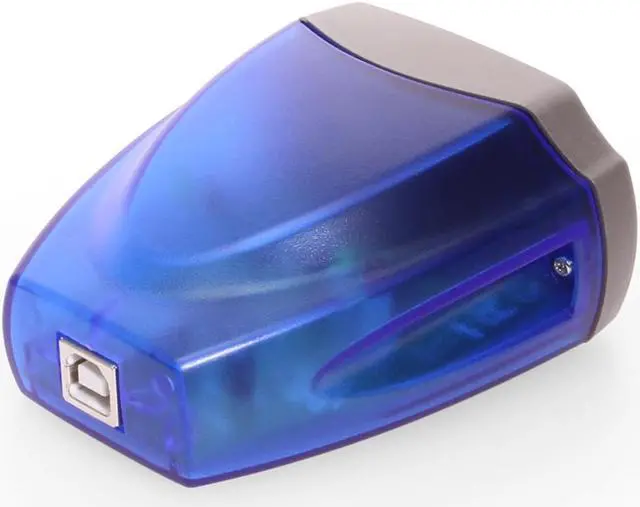

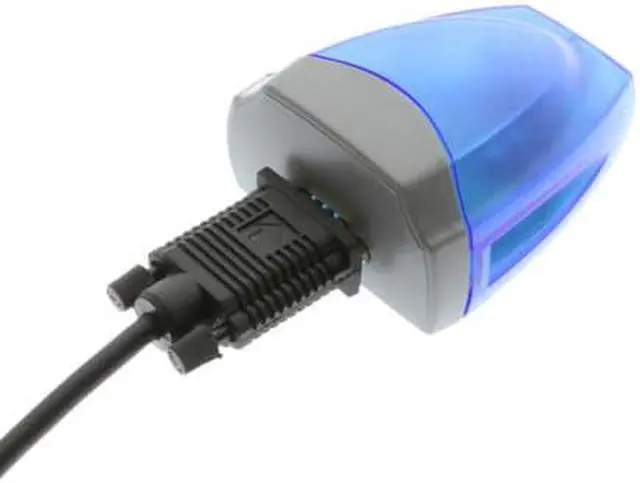

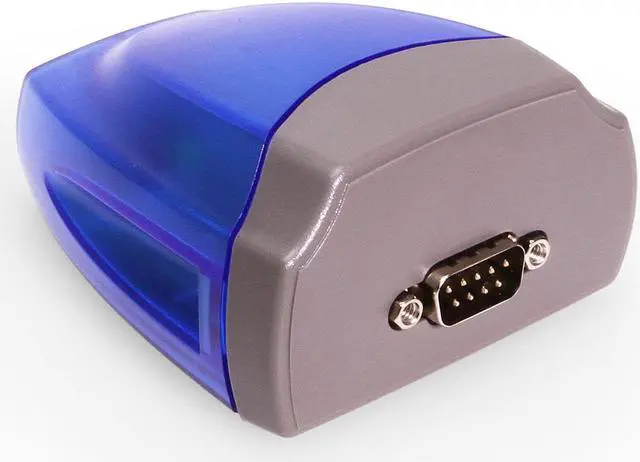

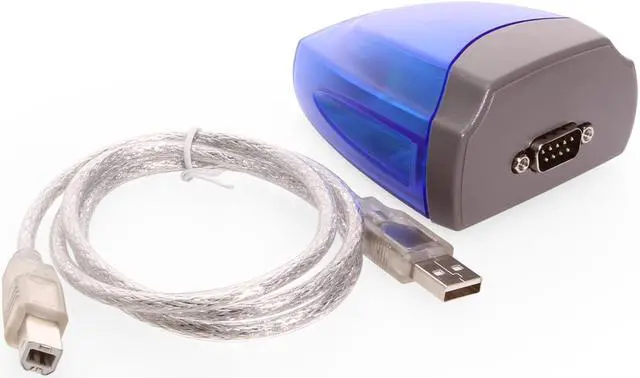

Coolgear USB to RS-422/485 Converter w/ DB9 Male Surge Protection

USB to RS-422 - RS-485 Serial Surge and Optical Isolation converter ports are individually optically isolated with 2000 volt DC optical isolation. The optical protects your PC or notebook from spikes and surges on the RS-422/485 network, by converting the electrical pulse into an optical signal and then changing it back into an electrical pulse. Your computer is well protected, since the surges and spikes cannot cross the optical link. Each RS-422/485 port is individually protected by surge protector to withstand electrostatic discharge and power surges up to 25KV ESD.

OS Support: Windows XP, 2000, 2003, CE, Vista, Windows 7, Windows 8, and 10 Linux and Mac OS 10.X

Features:

• Most cost economical RS-422/485 adapter with optical isolation


• 2000V DC optical isolation


• 25KV ESD surge protection


• RS-422, RS-485 mode settings by jumpers


• Installed as standard Windows COM port


• RS-422 data signals: TxD-, TxD+, RxD+, RxD-, GND, RTS-, RTS+, CTS+, CTS-


• RS-485 4-wire data signals: TxD-, TxD+, RxD+, RxD-


• RS-485 2-wire data signals: Data-, Data+


• Automatic transmit and receive control for 2-wire RS-485 half-duplex mode


• Built-in termination and biasing


• High speed serial port with the baud rate up to 921.6K bps


• Non-standard baudrates supported


• LEDs of TxD and RxD for easy port monitoring and diagnostic


• Powered by USB port, no external power adapter required


• Easy plug and play installation and RS-422/485 device connection


• COM port number assigned can be changed to any COM port number required


• Works with USB 1.1 & 2.0 host port
