Coolgear USB to Serial 16 COM RS-232/422/485 Rack mount adapter

The industrial 16 Port USB to RS-232 Serial Adapter that also utilizes RS422 RS485 communication signals for various serial device connections. Constructed within an industrial-grade metal chassis for harsh environments and circuit protection the system USB bus is utilized in the operation of the 16 Port USB to RS-232 422/485 Serial adapter while using Plug-and-Play features for installation purposes.

The serial adapter is automatically recognized as additional COM ports with no system IRQ COM conflicts or configuration necessary.

Features:

1. Adds sixteen RS-232 RS-422 or RS-485 serial ports through a USB port

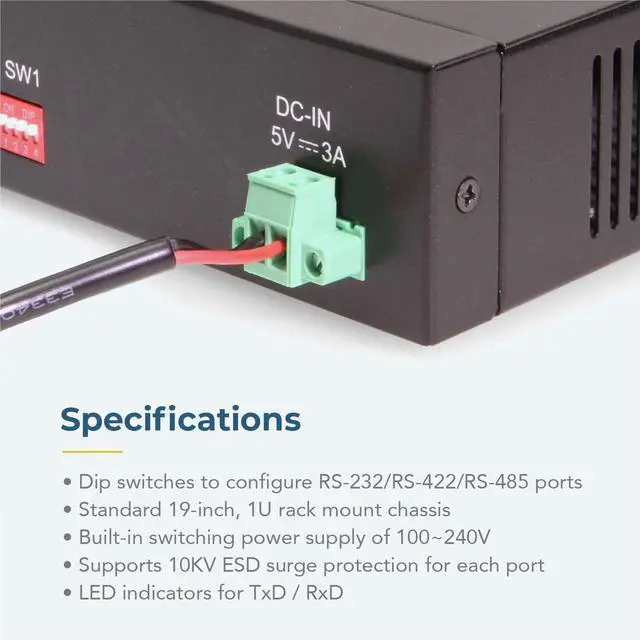

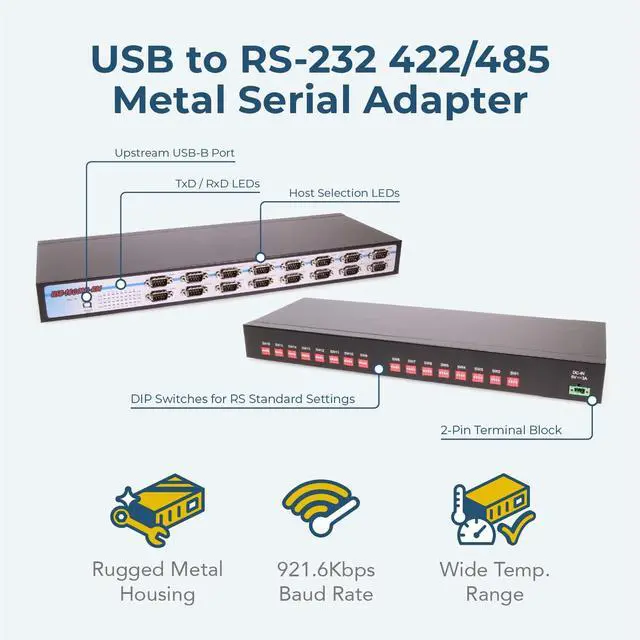

2. External DIP switches for easy RS-232 RS-422 RS-485 mode settings
3. Installed as standard Windows COM port

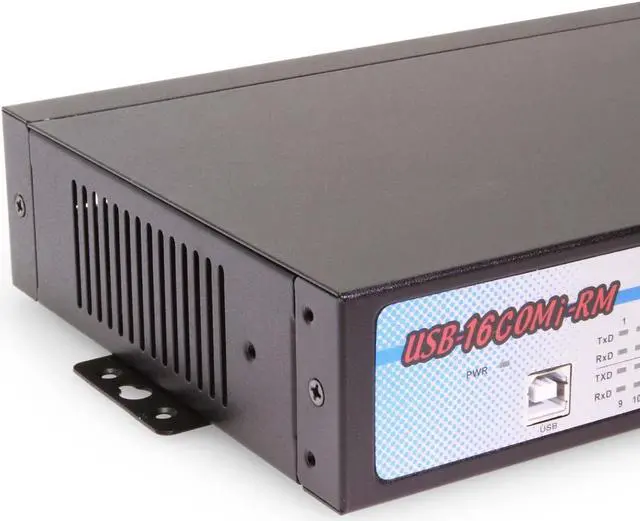

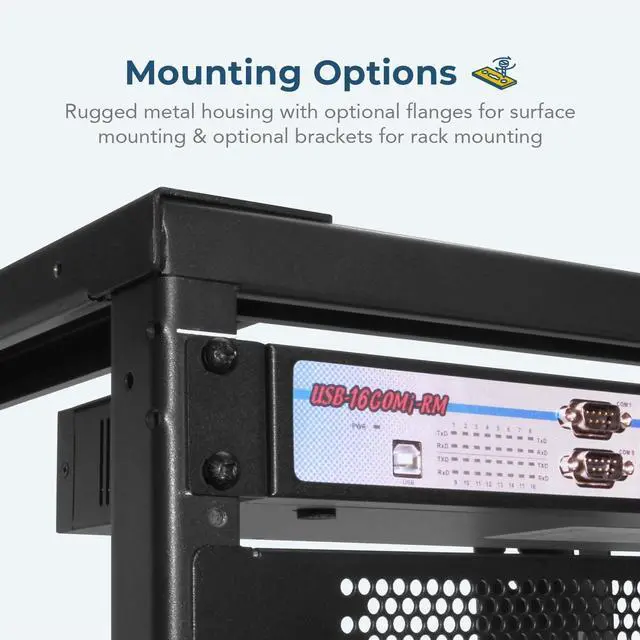

4. DIN rail brackets and rack-mounting kits for flexible mounting
5. Full RS-232 modem control signals and hardware/software flow control

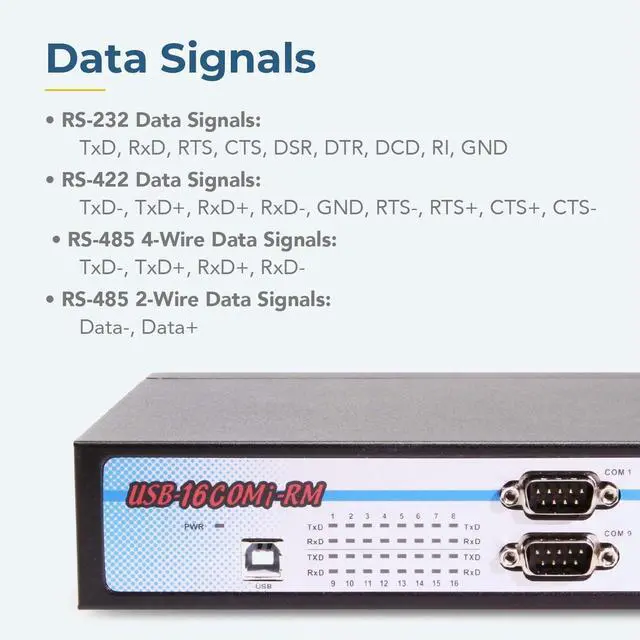

6. RS-232 data signals: TxD RxD RTS CTS DSR DTR DCD RI GND
7. RS-422 data signals: TxD- TxD+ RxD+ RxD- GND RTS- RTS+ CTS+ CTS-
8. RS-485 4-wire data signals: TxD- TxD+ RxD+ RxD-
9. RS-485 2-wire data signals: Data- Data+
10. Automatic transmit and receive control for 2-wire RS-485 half-duplex mode
11. Built-in termination and biasing
12. High speed serial port with RS-232 max baud rate up to 1Mbps / RS-422/485 max baud rate up to 10Mbps
13. Non-standard baud rates supported

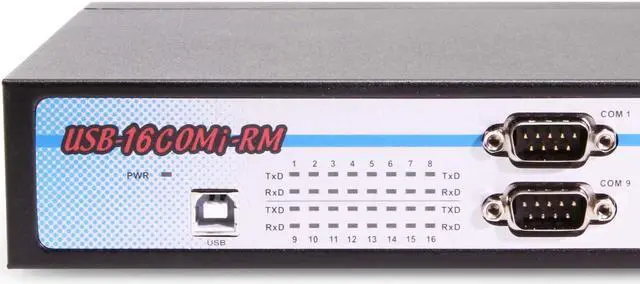

14. LEDs of Power TxD and RxD for easy port monitoring and diagnostics
15. Serial ports protected with surge protection of 15KV

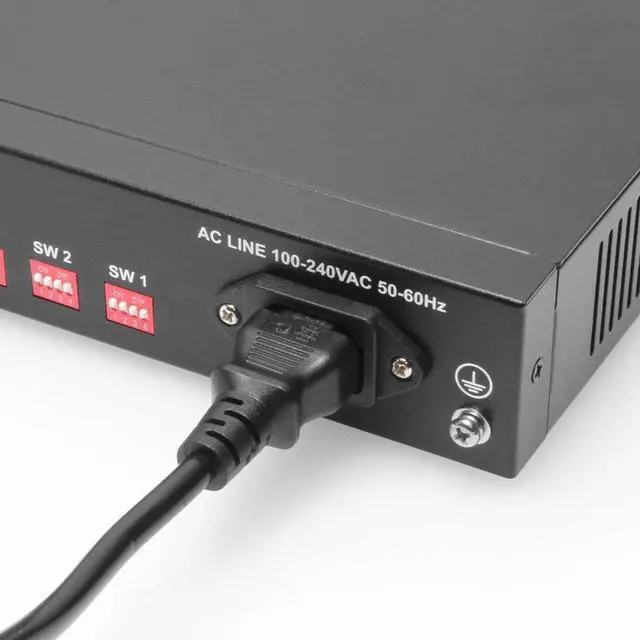

16. Built-in switching power supply of 100V~240V
17. COM port number assigned can be changed
18. Works with USB 1.1 & 2.0 host port

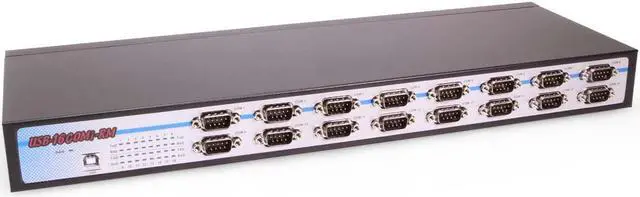

19. Standard 19-inch 1U rack mount chassis
20. Dimensions: 16.94in(L) x 5.82in(W) x 1.73in(H)
21. Hub Weight: 3.95 lbs.

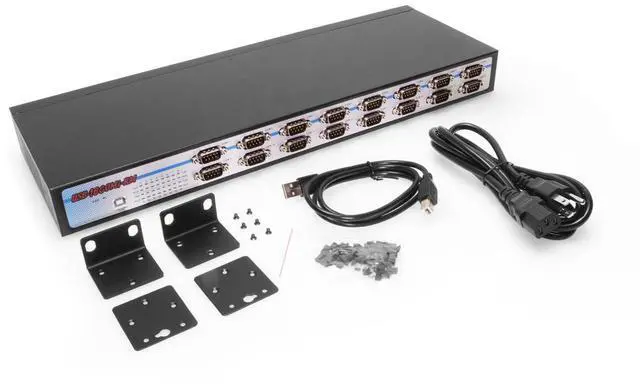

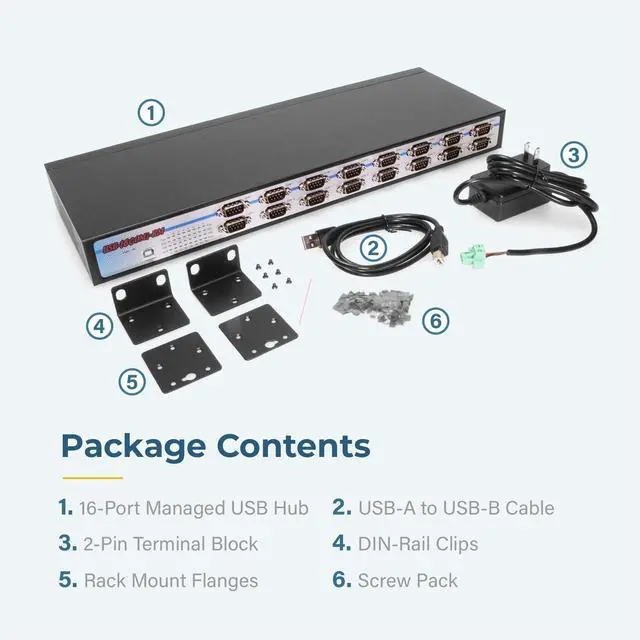

Package Contents:

1. 16 port RS232/422/485 industrial serial adapter
2. Power supply
3. Din Rail mounting plates and screws
4. Rack mounting brackets and screws
5. USB A to B cable

*Surface & Rack Mounting screws not included.
