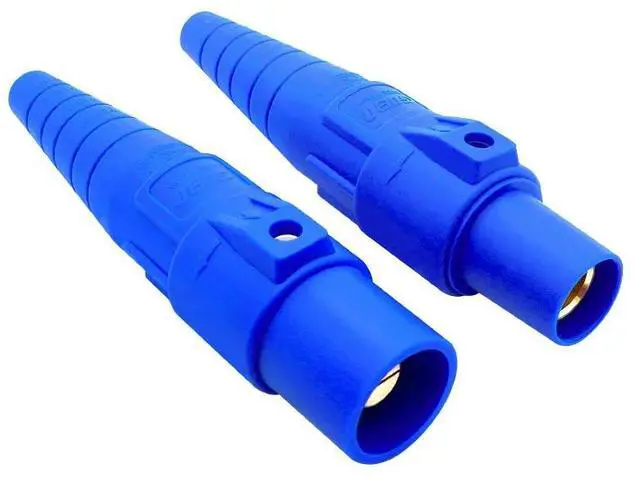

1 Pair 400A Male Female Standard Single Pole Camlock Power Connector for Cable Extension colourBlue

Overview:
The 400A R-LOK series is an American Standard single pole power connector with double cam design. The housing is made from highly insulated and high heat resistant TPE. The contact is made of copper alloy, which has high conductivity. The 400A R-LOK series is suitable for temporary power supply such as indoor and outdoor stage performances, film shooting, exhibitions, etc.

1. Highly insulated and high heat resistant TPE housing
2. PAST locating screw provides superior durability and insulation

3. Double cam design provides vibration-proof connection

4. Arrow marks for connectors mating and un-mating guidance

5. Accommodates a wide range of cable size with clear cutting line

6. Color-coded for easy phase identification
Please note that do not reuse locating pin. Reusing locating pin might expose the operation to electrical danger.

Specifications

:
Rated Voltage (AC): 600V (Max. )
Rated Current: 400A
Shell Material: TPE (Thermoplastic Elastomer)
Contact Material: Copper alloy
Locating Screw Material: PAST (Reinforced flame retardant nylon)
Applicable Cable Size: 50-95sqmm
Certificate: CE
Package Content:
1 pair=male plug + female plug
