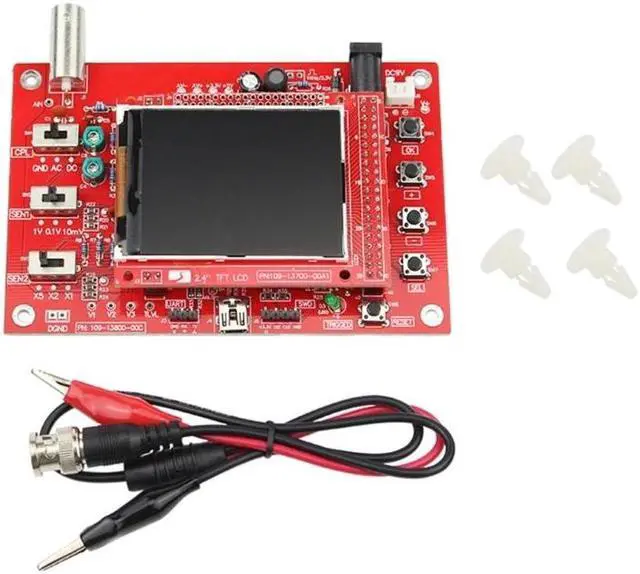

DIY Oscilloscope Fully Assembled ARMCortexM3 Processo High Accuracy

Features:
Universal Digital Oscilloscope Production Fully Assembled
This uses the ARM
CortexM3 processor (STM32F103C8) and includes a 2.4 inch color TFT display screen, which can be used as an ARMtesting and development board.
It can be developed on the basis of this for example, it can bemodified into a millivolt meter or data recorder. The vertical displacement is adjustable and accompanied by instructions.
It has automatic, regular, and one-time modes, making it easy to instantaneous waveforms. It can be triggered by the risingor fallingedge. The previous triggering waveform (negative delay) can be observed.
The waveform display can be frozenat any time (HOLD function). Equipped with a 1Hz/ 3.3V squarewavetest signal source.

Specifications

:
Real-time rate: 1Msps
Accuracy: 12digits
buffer depth: 1024 bytes
Analogbandwidth: 0-200KHz
Vertical sensitivity: 10mV/Div-5V/Div (1-2-5 progressivemode)
Input impedance: 1M
Input
Horizontal time base
Power supply
Package Includes:
1Set Oscilloscope Digital LCD Display Module Fully Assembled
Note:
Please allow 0-1cm error due to manual measurement. please make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you
