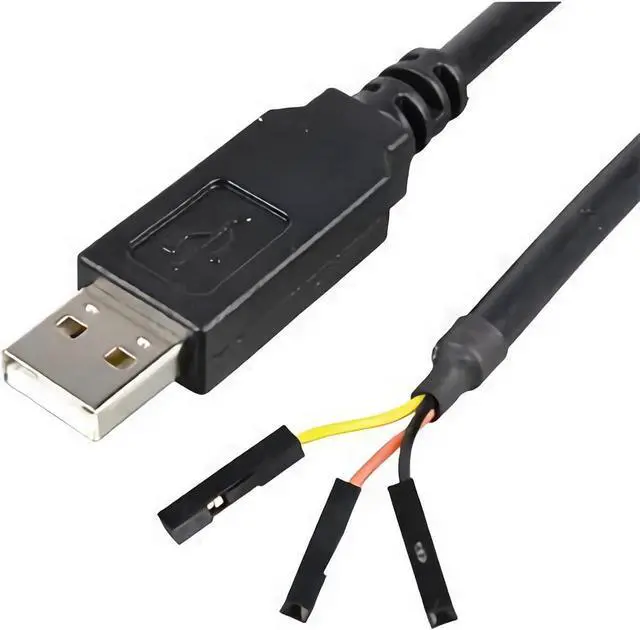

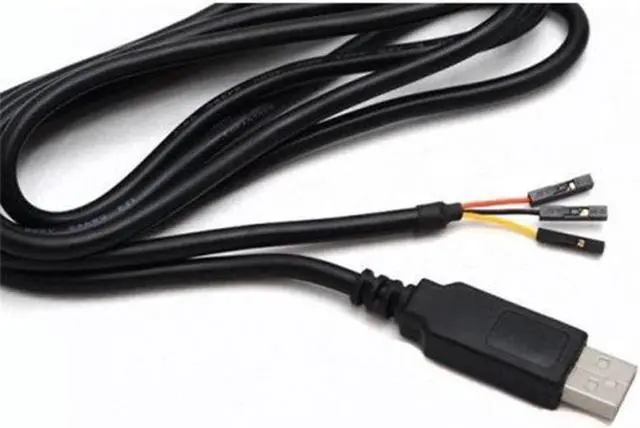

FTDI TTL-232R-RPI Debug Cable for Raspberry Pi Module,3Way,3.3V, TTL-232R-RPI 3V3 USB to TTL UART Converter Adapter Serial Cable
Limited time offer, ends 12/31 By E-tech
- TTL-232R-3V3 program cable with FTDI chip FT232RL built-in.6ft
- TTL-232R-RPI,USB to UART, 3.3V TTL logic level,Raspberry Pi compatible flying leads.
- Compatible with Windows, Mac OS, Linux, Android

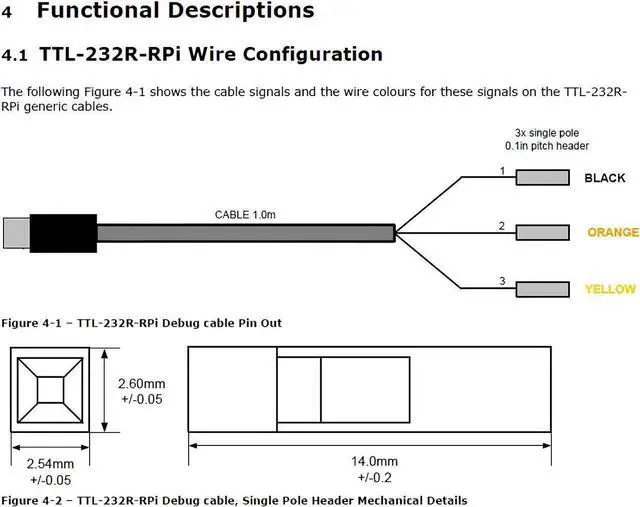

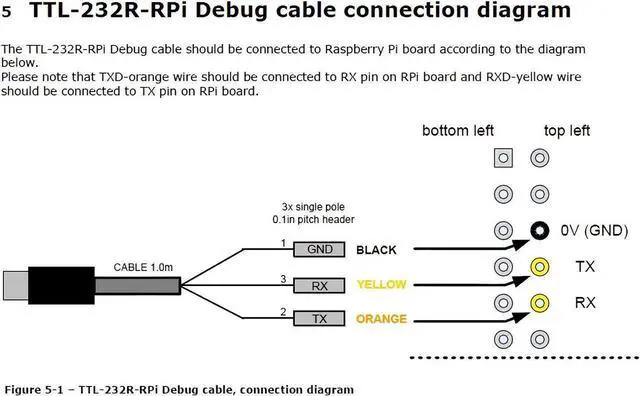

- 3 pieces "flying leads" outputs provide GND(Black), TXD(Orange), RXD(Yellow) signals.
- Alias: 232r rpi,ttl 232r rpi, ttl-232r-3v3 rpi,ttl 232r rpi,ftdi ttl-232r-rpi,raspberry pi ttl-232r-rpi,ftdi chip ttl-232r-rpi,ttl-232r-rpi pinout,ttl-232r-rpi cable, ttl-232r-rpi debug cable for raspberry pi,ftdi ttl-232r-rpi serial to usb cable,ttl 232r 3v3 raspberry pi,usb ttl raspberry pi,usb to ttl serial adapter for raspberry pi,usb-to-ttl serial cable raspberry pi, usb to ttl raspberry pi 3, raspberry pi ttl output
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
TTL-232R-RPi is a USB to TTL level serial UART converter cables incorporating FTDIs FT232RL USB to Serial UART interface IC device which handles all the USB signalling and protocols. The TTL-232R-RPi is designed for use with the Raspberry Pi (RPi), an
ultra-low cost, Linux based miniaturised computer. The debug cable sits on the Rx/Tx of the RPi ARM processor UART which provides much more detail of whats happening within the RPi operating system. Connecting the debug cable to a PC and communicating
with the RPi via a terminal emulator on a PC gives the user access to more detailed information from the Linux kernel during RPi start-up, which appears on the Rx/TX lines of the UART, as well as being able to login and access the kernel itself from
the PC.
Connect directly to a microcontroller UART or I/O pins.
UHCI / OHCI / EHCI host controller compatible.
3 pieces flying leadsoutputs provide TXD, RXD and GND signals.
Data transfer rates from 300 baud to 3 Mbaud at TTL levels.
Fully assisted X-On /X-Off software handshaking.
Internal EEPROM with user writeable area.
USB 2.0 Full Speed compatible.
Support for FT232R FTDIChip-ID feature for improved security.
TTL-232R-RPi Debug cable provides a USB to TTL Serial interface for Raspberry Pi computer

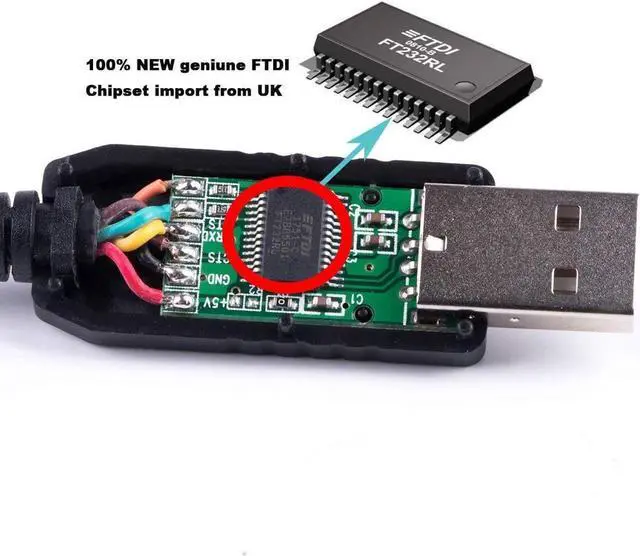

On board FT232RL provides single chip USB to asynchronous serial data transfer interface.
Entire USB protocol handled by the electronics in the cable USB.
Low USB bandwidth consumption.
-40°C to +85°C operating temperature range.
ultra-low cost, Linux based miniaturised computer. The debug cable sits on the Rx/Tx of the RPi ARM processor UART which provides much more detail of whats happening within the RPi operating system. Connecting the debug cable to a PC and communicating
with the RPi via a terminal emulator on a PC gives the user access to more detailed information from the Linux kernel during RPi start-up, which appears on the Rx/TX lines of the UART, as well as being able to login and access the kernel itself from
the PC.
Connect directly to a microcontroller UART or I/O pins.
UHCI / OHCI / EHCI host controller compatible.
3 pieces flying leadsoutputs provide TXD, RXD and GND signals.
Data transfer rates from 300 baud to 3 Mbaud at TTL levels.
Fully assisted X-On /X-Off software handshaking.
Internal EEPROM with user writeable area.
USB 2.0 Full Speed compatible.
Support for FT232R FTDIChip-ID feature for improved security.
TTL-232R-RPi Debug cable provides a USB to TTL Serial interface for Raspberry Pi computer
On board FT232RL provides single chip USB to asynchronous serial data transfer interface.
Entire USB protocol handled by the electronics in the cable USB.
Low USB bandwidth consumption.
-40°C to +85°C operating temperature range.
