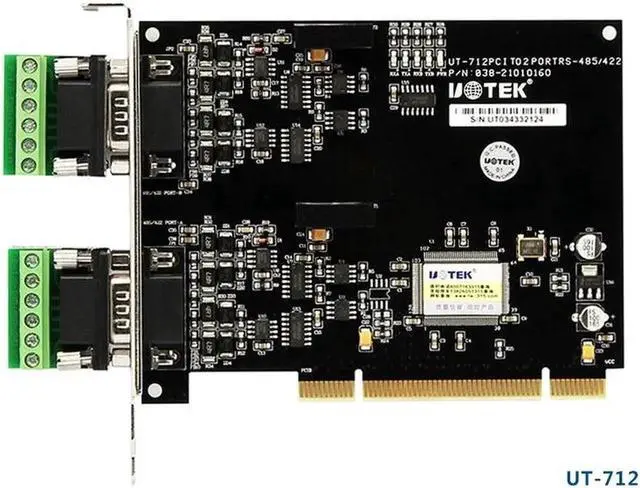

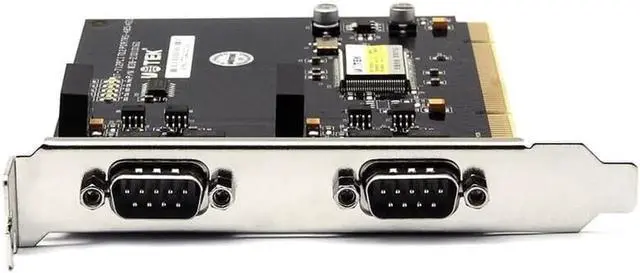

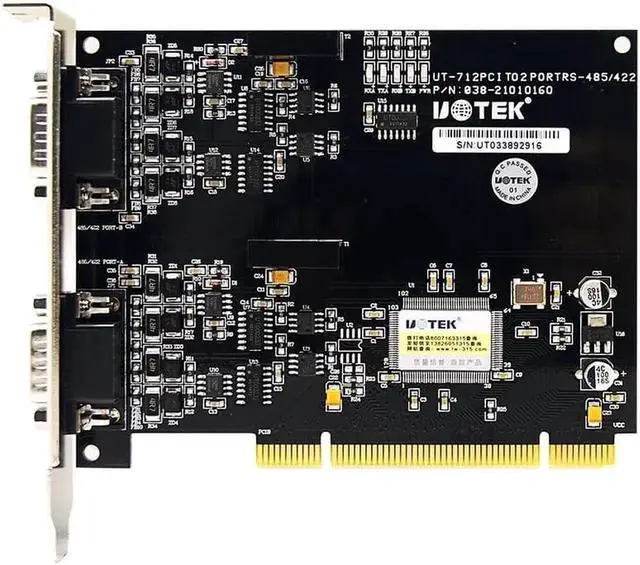

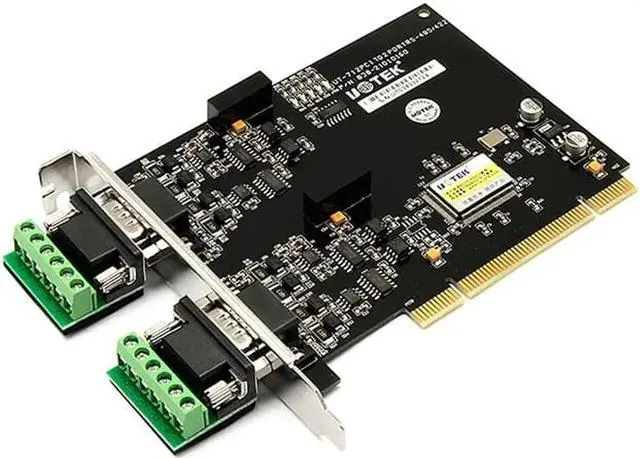

2-Ports PCI to RS485/422 Multi-Serial Port Card with 2.5KV isolation protection 2 Port RS485 RS422 COM Serial Port UT-712
- Connects 2 RS485/RS422 devices to your computer via PCI port.
- TIA/EIA RS-485/RS-422 standard compliant.
- PCI specification revision 2.2 compliant.
- Stable and reliable ASIX MCS9865.
- Supports multiple terminals up to 32 RS-485 & 10 RS-422 devices.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features:
Connects 2 RS485/RS422 devices to your computer via PCI port.
TIA/EIA RS-485/RS-422 standard compliant.
PCI specification revision 2.2 compliant.
Stable and reliable ASIX MCS9865.
Supports baud rate from 300bps to 912.6Kbps.
Supports transmit distance reach up to 1219m. (The longer distance, the lower rate.)
Supports multiple terminals up to 32 RS-485 & 10 RS-422 devices.
Supports automatic handshake mode.
Supports remote wake up and power management.
Auto sense serial signal rate. Zero delay automatic transmit.
600W surge and 15KV static electricity protection.
Standard RS-485/RS-422 serial 9 pin male connector with terminal board.
Ideal connections to Modem, PDA, GPS, Bar Code, Digitizer, Digital Camera, Label printer & ISDN terminal adapter, etc.
Supports Windows 2000/XP/Vista/7/8/Server 2003/2008, RedHat 7.3/8.0/9.0, Kernel 2.4.10 or above & Mac OS 8 or above.
Package Included:
1 x 2 Port RS485/RS422 PCI Card
1 x Terminal Board
1 x CD Driver
