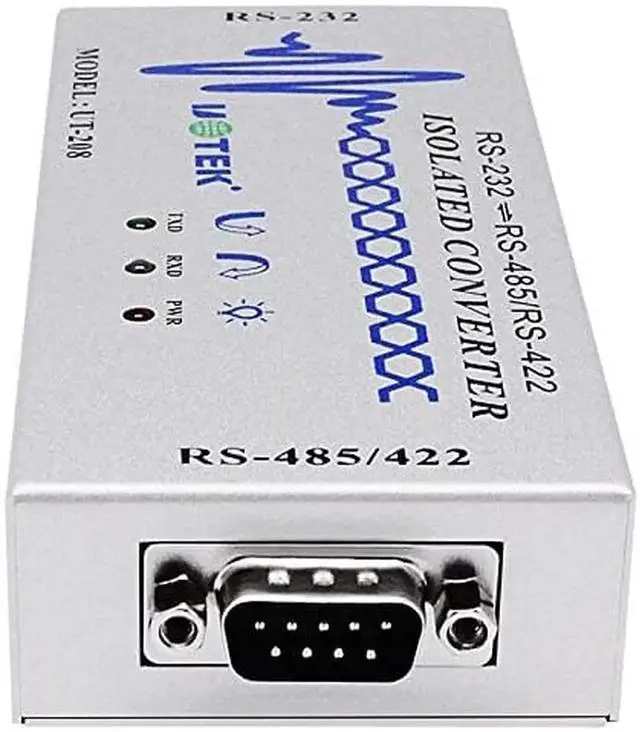

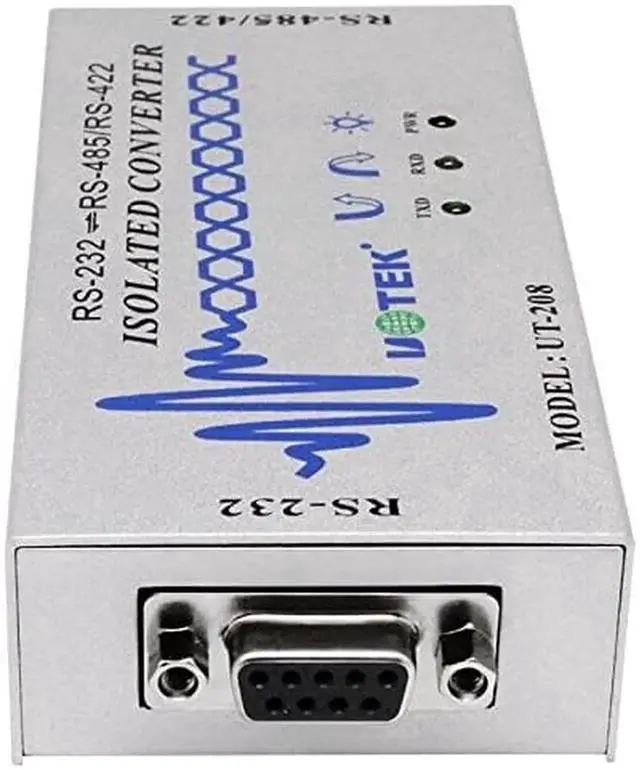

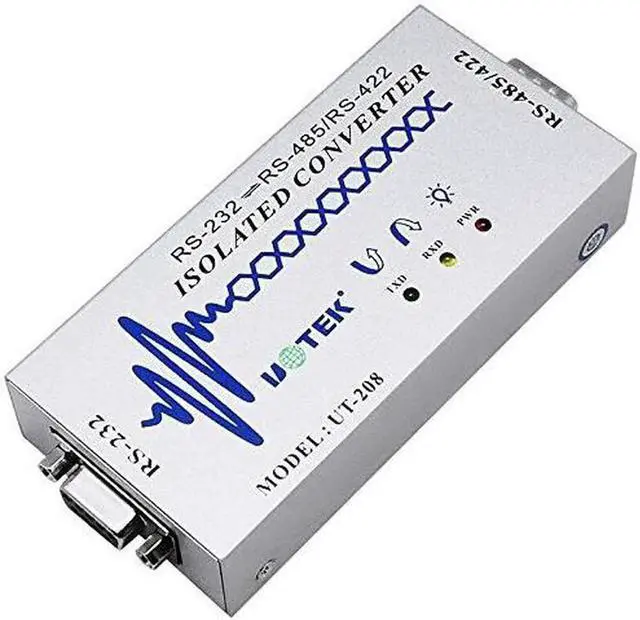

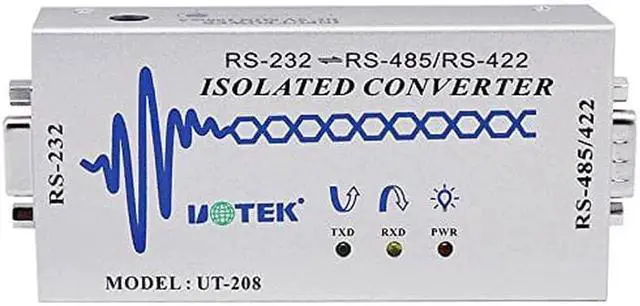

External-powered RS-232 to RS-485/422 Mini-size PhotoElectric Isolation
- RS232 side in DB9 female,RS485/422 side in DB9 male.
- RS232 side in DB9 female,RS485/422 side in DB9 male.
- Baud rate: 300BPS-115.2KBPS.
- +/-15KV ESD protection for RS-232 interface,Photoelectric isolation voltage: 2.5KVrms /500VDC.
- 600W lightning strike and grounding interference protection for RS-485/422.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features:
RS232 side in DB9 female.
RS485/422 side in DB9 male.
Max connection: 128 RS485/422 devices;Max: 5 KM (9,600BPS).
Baud rate: 300BPS-115.2KBPS.
Dimensions:113mmX55mmX25mm.
Indicator: Power, Data traffic
Environment: -40¡æ to 80¡æ, relative humidity 5%-95%.
Protection:
+/-15KV ESD protection for RS-232 interface
Photoelectric isolation voltage: 2.5KVrms /500VDC
600W lightning strike and grounding interference protection for RS-485/422
Application fields:
Factory automation system
Distributed control system
Other RS232/485/422 serial device wireless network
LED INFO display equipments
PLC control and management
SCADA, measuring instruments and monitoring system
CNC management
Medical treatment/medication automation
Building automation
Check on work attendance/ Human resource management
