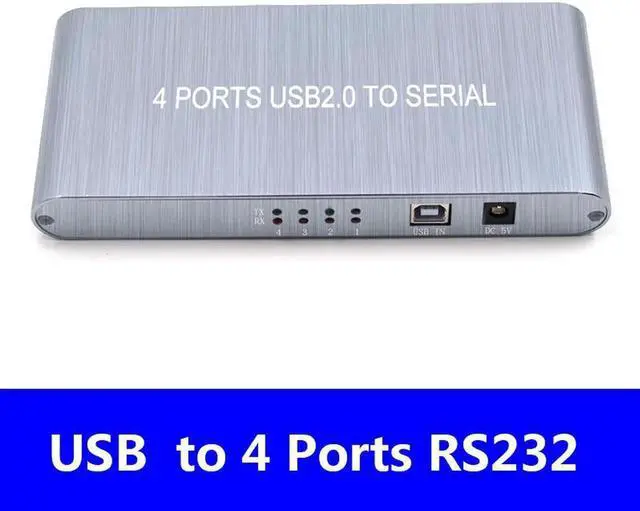

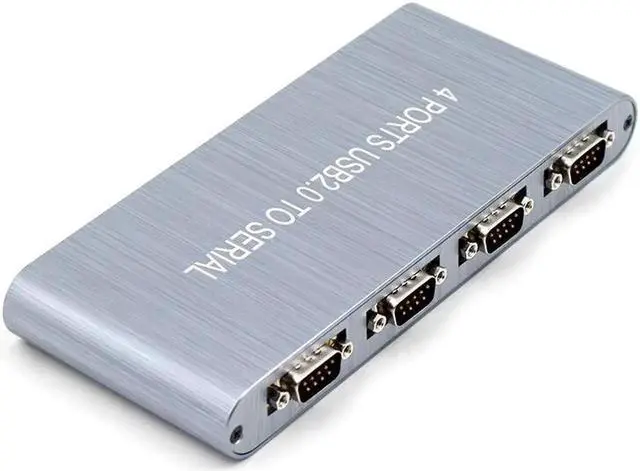

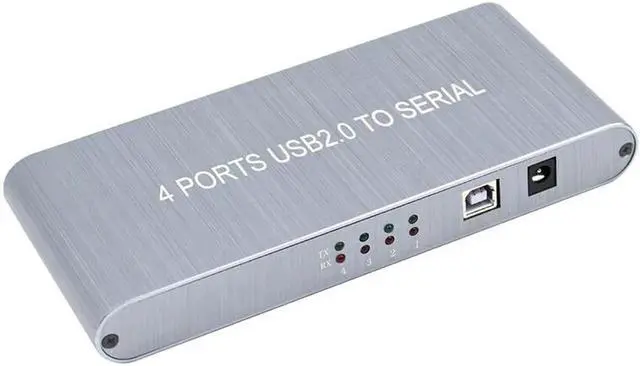

    4 Port USB2.0 to Serial RS232 DB9 Splitter 4 com to usb2.0 RS-232 cable

    Be the first to review this product...
    • USB2.0,USB1.1 to rs232 db9 4 port serial adapter splitter Support WIN7-10.

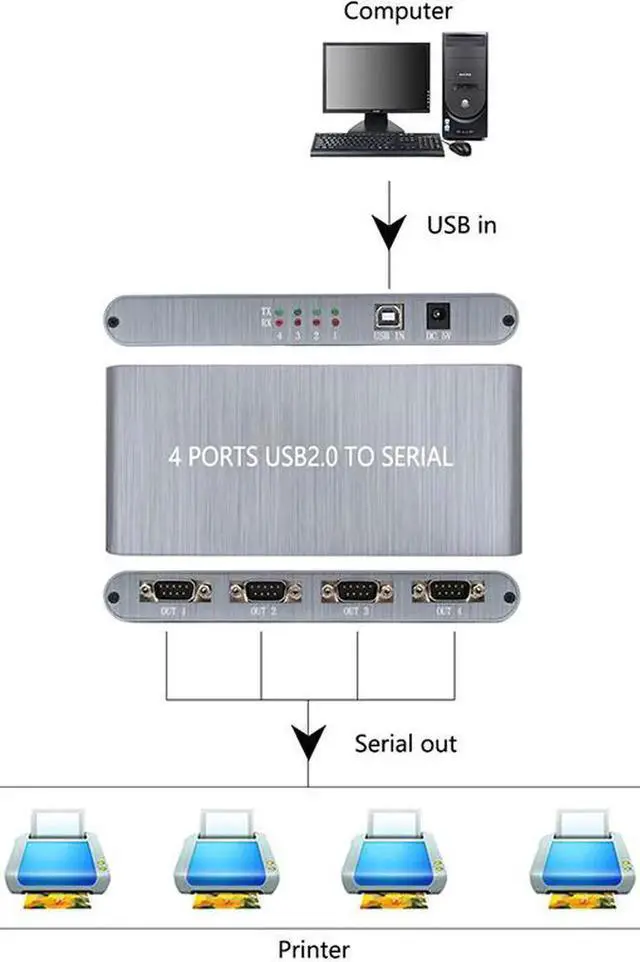

    • This USB to 4-Port RS232 Serial Splitter supports convert USB port to RS232 serial port.
    • It can easily be converted between the computer's USB port and universal serial port, It is used in places where is not or not enough serial port.
    • More convenient to communicate with other devices. Providing a fast access for computer without serial ports (4 RS232 ports can work at the same time).
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Features:

    *Support USB2.0, USB1.0


    * Support 4-Port RS232 Serial work at the same time


    * Support multiple operating systems, need to install drivers.


    * Support remote wakeup/energy saving mode


    *Support the common MODEN contact signals of RTS, DTR, DCD.RI, DRS, CTS


    * Support bidirectional transmission, transmission without delay.

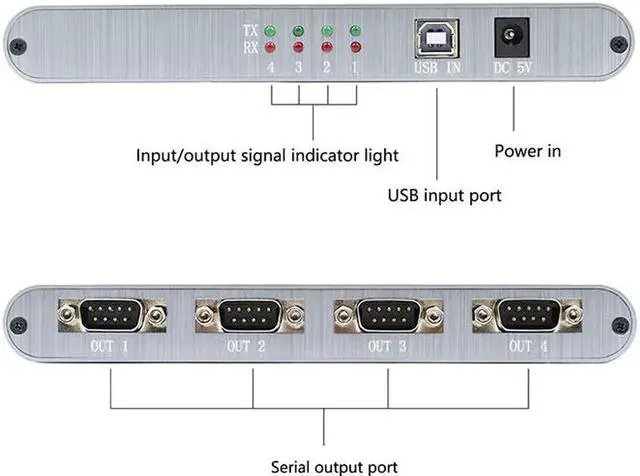

    Input port :1*USB(USB2.0,USB1.1).

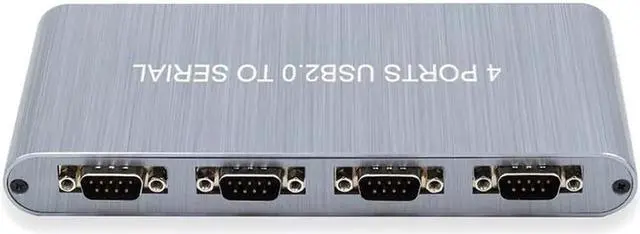

    Output port:4*RS232( DB9 Serial).

    Port:Nickel plated port, anti-oxidation.

    USB Signal:VCC,DATA+, DATA-,GND,FG.

    RS232 Signal:DCD,RXD,TXD,DTR,GND,DSR,RTS,CTS,RT.

    Operating systems:Windows 10, Windows 8, Windows 7, XP, Windows 2000 MAC OS v5.6......

    Data communication rate:300~512kbs.

    Baud rate :5400bps~921600bps.

    Transmission distance:USB port:< 5m,RS232 port:<15 m.

    Directional control:Using data flow automatic control technology, automatic control and data transmission criterion.

    Power supply:DC 5V.

    Weight:283g.

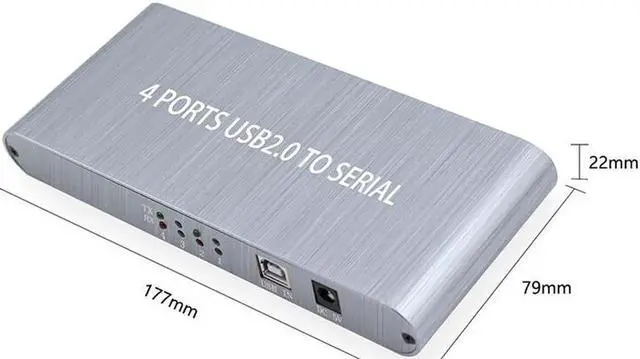

    Dimension:179mm X 79mm X 22 mm.


    Package Included:

    1 x USB to 4-Port RS232 Serial Splitter

    1 x Power adapter
