3 Feet USB to Serial Female Adapter Cable DB9 RS232 to USB 2.0 Cord with Prolific PL2303 Chip Windows 11 10 8 7 Mac Linux (9 Pin 2 Row Connector RS232C Protocol)

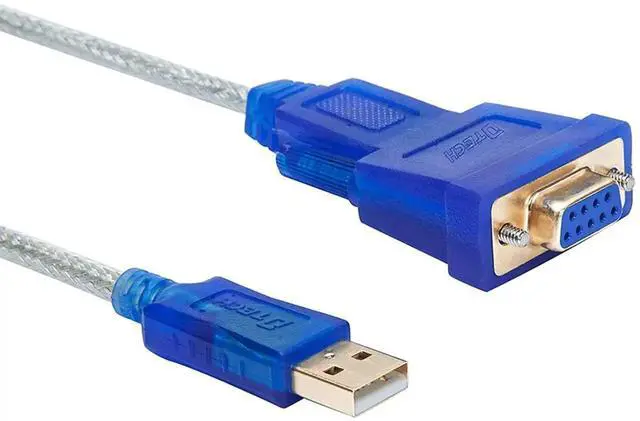

3 ft USB Male to Serial Female Cable for 3 wire serial communication (RX, TX, GND)

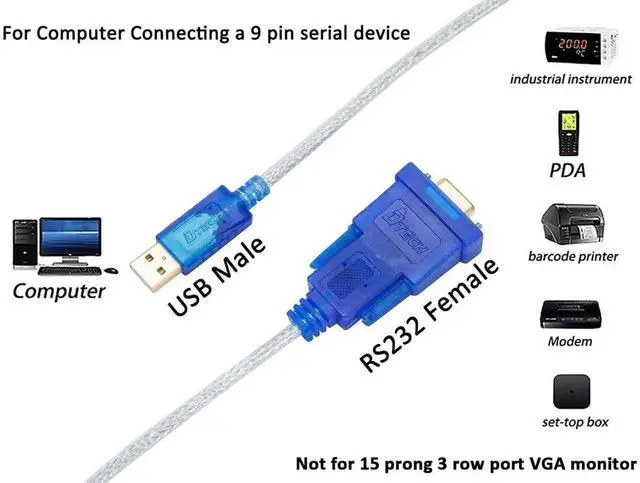

Computers are shrinking its size daily which means less room for antiquated connections. With the rise of USB, DB9 Serial Connections have become even harder to come by on new computer systems. This is where USB to DB9 Serial Adapter comes in to play.

By converting a USB to DB9 Serial Connection, with the RS232 USB serial adapter you can make use of older equipment that still relies on a DB9 Serial Connection so there is no need to worry about upgrading to newer equipment.

The RS-232 Serial to USB Adapter provides an external plug & play RS-232 serial connection with your computer, letting you free up your existing serial port. With USB to serial 9 pin female converter, Users have the capability to utilize the adapter with serial port interface in an easy-to-use environment.

Specific

USB Interface: USB type A male

RS-232 Serial Interface: DB9 female

Cable Length: 6 Feet

Chip: prolific PL2303 9 pin RS232 to usb adapter supports Windows 11, 10, 8, 7, XP, Vista, 2000, 98, MacOS8 or higher, Linux 2.4.0 and later

USB 2.0 standard, backward compatible

Gold-plated Interface

Important Note:

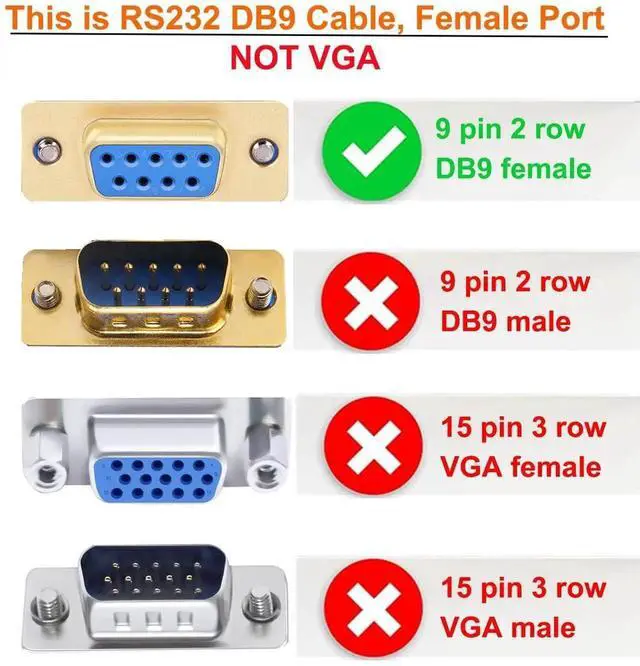

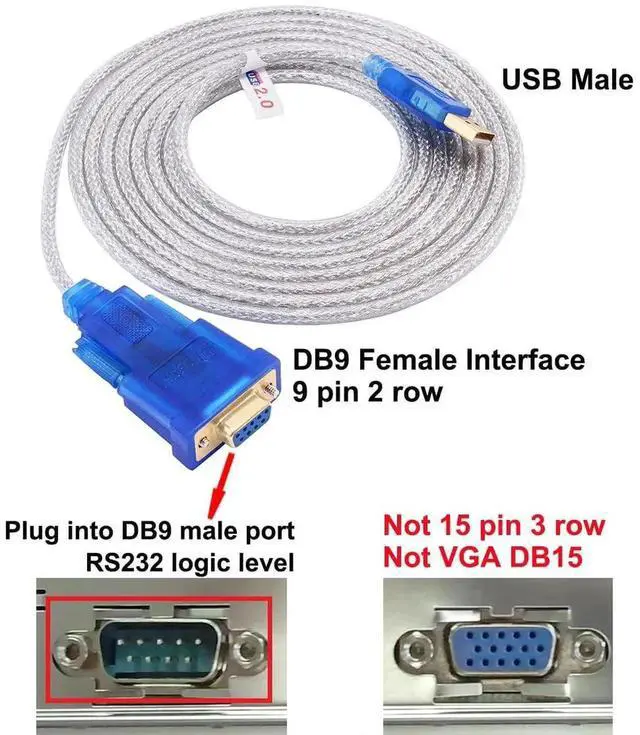

1. The Serial (COM) Port of this Cable is Female Interface, which fits for the Serial (COM) Device with 9-Pin Male Port. Please make sure the interface of your device is 9-Pin Male before making a purchase.

2. If you cant find the driver or have any installation issue, please contact us anytime and we will send you a driver of this USB to serial adapter.

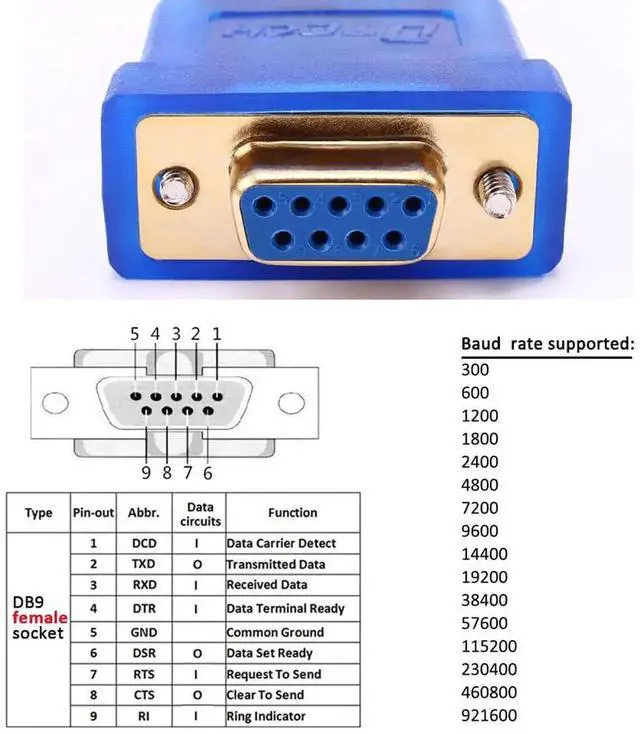

3.Serial to USB 2 converter pingout: Pin 2 - TxD, Pin 3 - RxD, Pin 5 - GND. (pin 1-5 row 1 right to left ,pin 6-9 row 2 right to left ).

Original Packing Included

1 x USB to DB9 Female RS232 Converter cable (3ft)

1 x CD software driver
