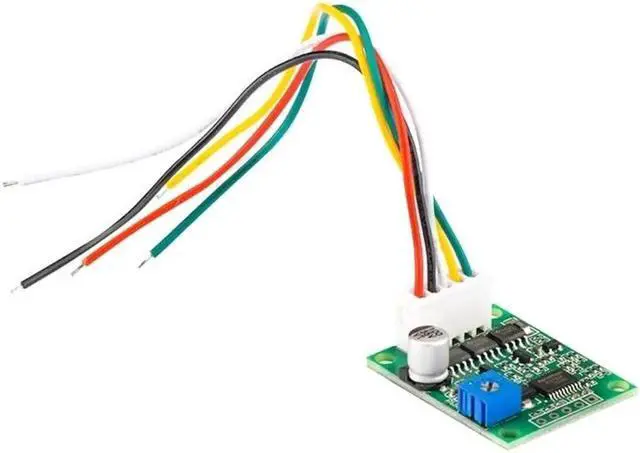

5-24V Brushless 0-5V BLDC Three-phase Speed Control Board Optical Hard Disk Motor Controller DC6-20V

Features:

Default the middle timing is not suitable for high-power motors, such as long-term full load current operation,

Industrial control electric gadgets for small space and low-power for DC three-phase brushless motors.

It is specially used for air pumps, water pumps, oil pumps, fans, etc.

Non-inductive model and no need for

brand new and high quality

This driver is a low-power fan brushless driver, and it can also be embedded in other systems.

Specifications

:

Product Name: Three-phase for DC Brushless and Hallless

Model: X10 (no

Working

current: 3A

Maximum speed: 224000 (2 pole motor), 74000 (6 pole motor), 40000 (12 pole motor), 35000 (14 pole motor).

Product size: approx Length 34MM Width 27MMx Height 11MM/ 1.33 x 1.06 x 0.43

Weight: X10 8g (including wire)

Cable Length: approx 12.5 cm/ 4.92 in

Connecting: V for W phase line output is to the motor; VCC GND main power supply (external for DC power supply)

Package Includes:

1 PC Three-phase for DC Brushless and Hallless

Note:

1. There is no in the power supply circuit on the motherboard. Reverse connection of the positive and negative poles of the power supply will cause permanent damage to some of the chips on the board.

2. There is motor blocking for protection during normal operation. Please do not artificially short-circuit when the module is not working normally. Once short-circuiting may cause the line to burst, please use small current and low test for the first wiring test. Matching use of three-phase for DC brushless motors with equivalent current and power

3. Do not the motor that is obviously inconsistent with the module current, or power, to avoid inexplicable "nonsensical" damage
